Composition of Production Line

This high-speed infrared drying conveyor system is specifically engineered for continuous drying of surface-coated molded pulp products and consists of:

• Infeed Conveyor Section: Variable-speed feeding belt with product spacing control for consistent loading and seamless integration with upstream coating equipment

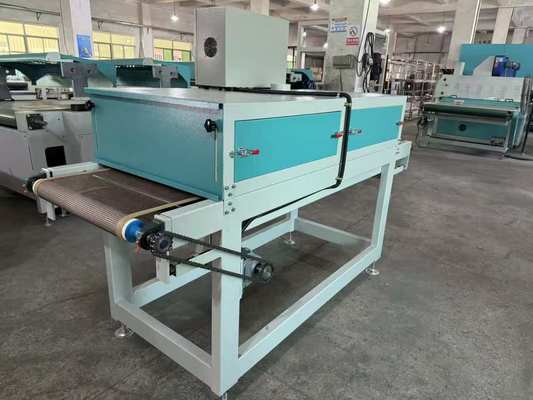

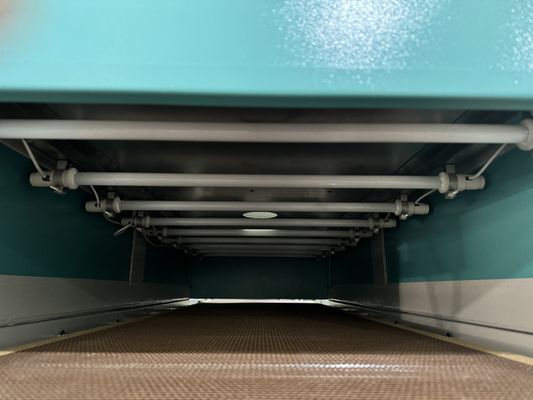

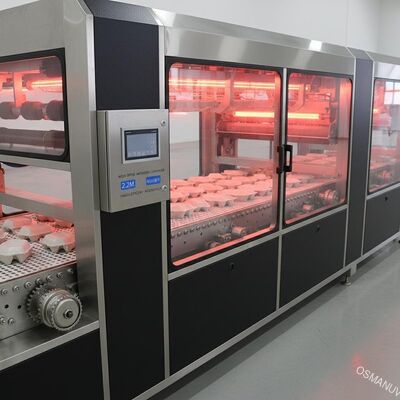

• Main Infrared Drying Chamber: Heavy-duty tunnel structure with medium-wave infrared emitter arrays for targeted heating

• Multi-Zone IR Heating System: Independently controlled IR emitter zones for optimized drying profile across product width

• Hot Air Circulation Assist System: Integrated forced-air circulation to enhance heat distribution and accelerate solvent/moisture evaporation

• Exhaust & Humidity Control System: Regulated dampers and moisture extraction fans for efficient removal of evaporated solvents and water vapor

• Cooling Section: Ambient or forced-air cooling zone to stabilize finished surface temperature prior to product handling

• Outfeed Conveyor Section: Variable-speed exit belt with optional stacking unit for organized collection of dried products

• Centralized PLC Control Cabinet with HMI: Touchscreen interface for complete parameter control, recipe storage, and real-time production monitoring

• Variable Frequency Drives (VFDs): Precision motor speed control for conveyor and fan systems

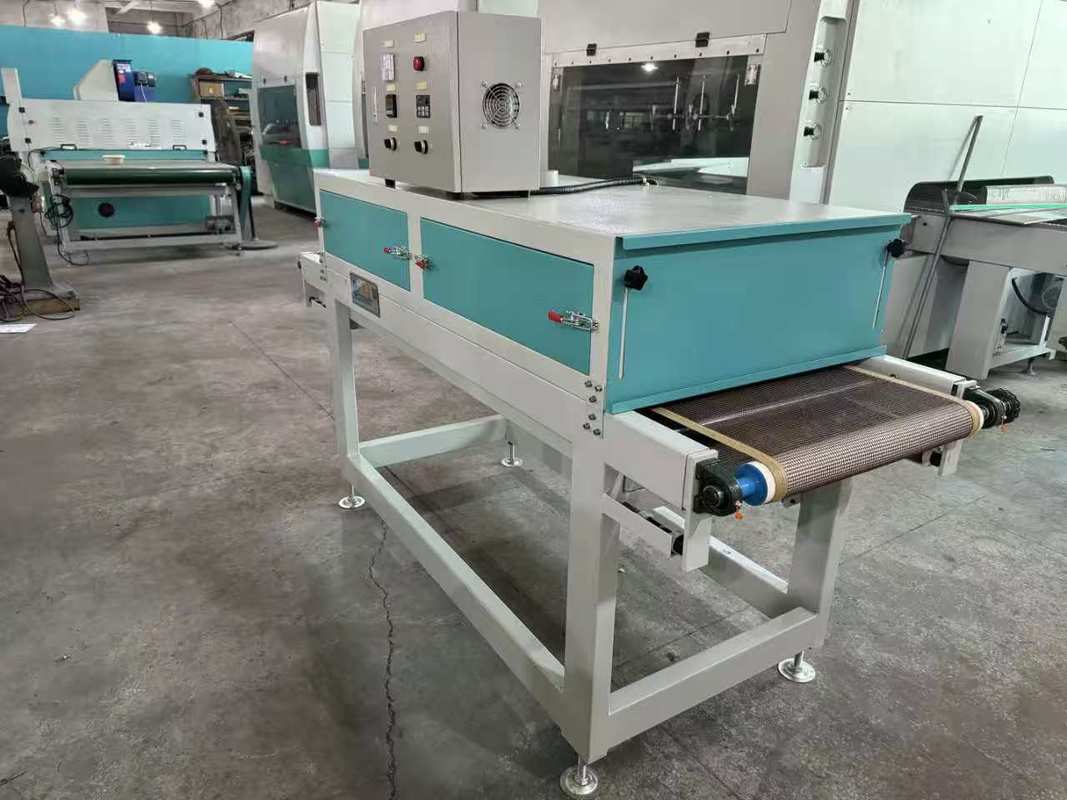

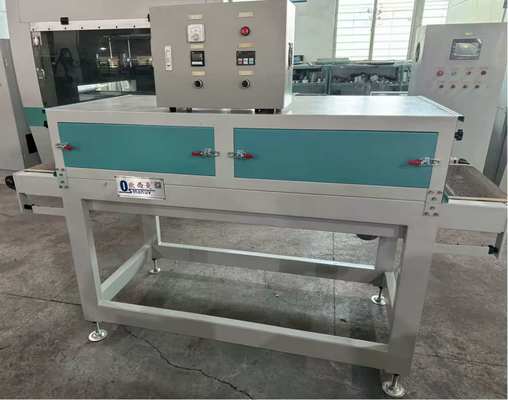

Product Description

The High-Speed Energy-Efficient 2.2M Infrared Drying Conveyor is a professional industrial drying system specifically designed for fast, uniform drying of water-based and solvent-based surface coatings on molded pulp products such as tableware (plates, bowls, lunch boxes, trays), industrial packaging inserts, food containers, and other coated pulp articles. Utilizing medium-wave infrared heating technology, this equipment provides fast, targeted heat directly to the coated surface, accelerating moisture evaporation and coating curing with high energy efficiency-3. The directly absorbed infrared energy rapidly heats the coating layer without the need for heating the entire surrounding air volume in the workshop, significantly reducing energy waste and operational costs. The integrated hot air circulation assist system enhances heat uniformity, preventing issues such as pinholing and incomplete curing. With processing speeds up to 30 m/min, this high-speed 2.2-meter-wide infrared drying conveyor is the ideal choice for medium-to-high volume pulp molding manufacturers seeking to improve throughput while maintaining consistent, high-quality surface finish and minimal energy consumption.

Technical Parameters

Application

Ideal for continuous drying of surface-coated molded pulp products across multiple industrial sectors:

• Molded Pulp Tableware: Drying of water-based and solvent-based barrier coatings on plates, bowls, lunch boxes, cups, trays, and food containers — ensuring uniform final moisture content without warping or discoloration

• Paperboard Packaging: Drying of functional and decorative coatings on paperboard containers, clamshells, boxes, and cartons

• Industrial Pulp Molding: Drying coatings on electronics packaging inserts, automotive parts trays, and other molded fiber industrial components

• Coated Pulp Products: Any molded pulp article requiring fast, efficient drying of surface-applied coatings

• Furniture Panel Components: Drying of primers and topcoats on furniture boards, cabinet doors, and decorative panels (up to 2200mm width)

• High-volume Manufacturing Environments: Continuous production lines requiring high throughput, minimal downtime, and energy-efficient operation

Customization

The line is fully customizable to fit specific factory space, production volume, product geometry, and coating requirements. Standard customization options include:

• Effective Working Width: Standard 2200mm configuration fully adjustable from 600mm to 2600mm to match specific product widths and factory layout constraints

• Total Line Length: Conveyor length customizable from 6 meters to 20+ meters based on required drying time and line speed

• Number of Heating Zones: Independently controlled zones customizable from 2 to 6 based on coating type and desired drying profile

• IR Emitter Selection: Choice of medium-wave or far-infrared emitters based on coating formulation absorption characteristics

• Conveyor Belt Type: Teflon mesh belt, stainless steel mesh chain, or custom belt material based on product handling requirements and temperature resistance

• Hot Air Circulation Design: Customizable airflow pattern (top-down, bottom-up, or combination) based on product geometry and coated surface orientation

• Exhaust System Configuration: Fixed or variable-speed exhaust fans, manual or automatic humidity controls

• Integration Capability: Direct integration with upstream coating equipment (roller coaters, spray lines, curtain coaters) and downstream finishing/packaging systems

• Power Supply Configuration: 380V/50Hz (standard), 220V/60Hz (North America), 460V/60Hz, or other regional requirements

• Special Certifications: CE, UL, CSA, EAC certification options for international export compliance

• Cooling Section: Ambient or forced-air cooling zone length and configuration based on product handling requirements

• Remote Monitoring & Data Connectivity: Optional IoT connectivity for real-time performance tracking and predictive maintenance alerts

• Cleanroom Integration: Stainless steel construction and HEPA-filtered exhaust for medical/pharmaceutical applications

Features

• 2.2-Meter Wide-Format Capacity: Handles large molded pulp products and panels up to 2200mm width in a single pass, eliminating the need for secondary processing and increasing line efficiency

• High-Speed Continuous Drying: Conveyor speeds up to 30 m/min with multi-zone IR heating support high-volume production while maintaining consistent drying quality

• Fast Response Infrared Heating: Medium-wave infrared emitters deliver rapid heat-up times (seconds), reaching full power almost instantly for precise process control — significantly reducing idle energy consumption compared to conventional ovens

• Energy-Efficient Operation: Direct IR heating transfers energy directly to the coated surface without heating the entire oven volume, achieving up to 30% lower energy consumption compared to conventional hot air dryers-

• Superior Coating Finish: Medium-wave IR has strong water affinity, ensuring efficient moisture evaporation while preventing surface defects such as pinholing, blistering, or incomplete curing-

• Uniform Temperature Distribution: Staggered IR emitter array combined with hot air circulation assist eliminates cold spots and ensures consistent drying across the entire 2200mm working width

• User-Friendly PLC Control: Intuitive touchscreen interface with recipe management enables instant recall of optimized drying parameters for different product types and coating formulations, reducing changeover time and operator error

• Low Operational Cost: Reduced energy consumption, minimal maintenance requirements, and long-lasting quartz emitters lower overall cost of ownership compared to gas-fired or conventional electric ovens

• Compact Tunnel Design: Modular construction reduces floor space requirements while maximizing drying efficiency

Support and Services

• Installation & Commissioning: Professional on-site installation support including leveling, alignment, conveyor calibration, temperature profiling, and full line integration with existing coating equipment

• Operator Training Programs: Comprehensive training covering machine operation, parameter adjustment (temperature, conveyor speed, airflow), maintenance procedures, safety protocols, and recipe management

• Technical Hotline & Remote Support: 24/5 remote technical assistance via phone, email, and IoT-enabled remote diagnostics for rapid troubleshooting

• Preventive Maintenance Plans: Scheduled inspection, calibration, and component replacement services to maximize uptime and extend equipment lifespan

• Process Optimization Consulting: Expert guidance on drying parameter optimization for specific coating formulations, including temperature profiling, conveyor speed tuning, and humidity control strategies

• Documentation Package: Comprehensive technical documentation including operation manual, maintenance guide, electrical schematics, PLC program backup, and CE declaration

• Spare Parts Availability: Lifetime supply of genuine spare parts including IR emitters, belts, drives, fans, sensors, and control components through global distribution network

• Extended Warranty: Optional 24-month or 36-month extended warranty coverage available upon request

Packing and Shipping

• Packaging: Pre-assembled modules (pre-fabricated sections of conveyor and heating tunnel) reduce on-site assembly time; shipped on reinforced export wooden pallets with shock-proof materials and moisture barrier film. Sensitive components (PLC cabinet, IR emitters, drives) are individually wrapped and packed in separate protective containers

• Shipping Options: Worldwide shipping via sea freight (standard 20ft/40ft containers, LCL available), air freight for urgent deliveries, or land transportation for regional shipments

• Delivery Time: 30 – 45 days for standard configurations; 45 – 60 days for customized configurations (including custom width, extra heating zones, or special belt materials)

• Port of Loading: Major Chinese ports (Shanghai, Ningbo, Shenzhen, Guangzhou, Qingdao) with full export documentation provided including commercial invoice, packing list, bill of lading, CE certificates, and detailed packing list

• On-Site Assembly: Dedicated installation team with 1-2 weeks on-site assembly, alignment, calibration, and operational validation prior to customer acceptance
