9KW 850mm Height Wood Uv Roller Coating Machine With Motor
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Osmanuv |
| Certification: | ISO9001 And CE |
| Model Number: | OSM-TB-1320 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Box |
| Delivery Time: | 35-45 Working days |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | According to customer's demand |
|
Detail Information |
|||
| Poduct Name: | Multi-function Coating Machine | Size: | 2100mm X 2300 Mm X 1520mm |
|---|---|---|---|
| Color: | Computer White / Green | Operational Height: | 850-900mm |
| Total Power: | 9KW | Warranty: | 1 Year |
| Highlight: | 9KW uv roller coating machine,850mm uv roller coating machine |
||
Product Description

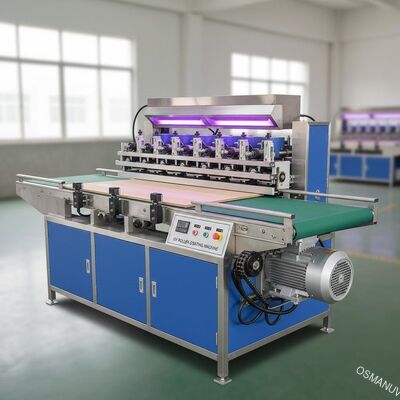

9KW 850mm Height Wood UV Roller Coating Machine With Motor
Product Overview
This 9KW 850mm Height Wood UV Roller Coating Machine is designed for filling various wood materials including solid wood, original planer board, medium density planer, or other substrates using waterborne UV light curing filling technology. The machine effectively fills holes in plates to achieve smooth surfaces while scraping away excess paint. Automated recycling eliminates manual filling, significantly improving production efficiency.
Technical Specifications
| 1 | Filling Roller | Diameter: ￠240mm, Power: 1.5KW, Length: 1420mm. Constructed from 45# seamless steel tube welded by CO², surface finely ground with dynamic balance ensuring runout less than 0.05mm. Surface hard chrome plated and polished for bright effect. Direct plug-in connection drive integrated with drive motor. |
| 2 | Cots | Diameter: ￠240mm, Length: 1420mm. Made of Japanese high-quality rubber, wear-resistant, elastic. Hardness customizable between 30-50 degrees according to customer requirements. Resistant to various solvents. |
| 3 | Metering Wheel | Diameter: ￠150mm, Length: 1420mm. Using 45# seamless steel tube CO² welded, surface fine grinding, dynamic balance with runout less than 0.05mm. Surface hard chrome plated and polished for bright effect. Direct plug-in connection drive integrated with drive motor. |
| 4 | Conveyor Roller | Power: 2.2KW, Diameter: ￠130mm, Length: 1320mm. 45# seamless steel tube CO² welded, surface fine grinding, dynamic balance with runout less than 0.05mm. Surface polished after hard chrome plating. Direct plug-in connection drive integrated with drive motor. |
| 5 | Material | Shell made of 1.5mm steel plate bending and welding, surface treated with liquid paint. Supporting wall made of 20cm steel plate (A3 material). |
| 6 | Transmission System | Dutch imported plane anti-skid PVC belt, adjustable speed 5-20m/min. High-quality coupling transmission, KHV bearings. Controlled by Taiwan Delta frequency converter. |
| 7 | Control System | Six sets of driving power for separate speed driving. Equipped with BNC motor and reducer. |
| 8 | Electrical Parts | OMRON relay, Delta frequency converter, Waxin reducer, CHNT contactor, CKC brand delay, Japan Wazumi company switches. All components comply with CE standards. |
| 9 | Safety Device | Leakage circuit breaker, control line fuse, and other safety components comply with international safety standards. |
| 10 | Delivery Direction | From left to right. |
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: We can test your samples on our machines and provide video documentation. Factory visits are also available. Our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Our production follows GMP & ISO standards, and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty with lifelong maintenance and technical support.
