Product Details:

Place of Origin: CHINA
Brand Name: Osmanuv
Certification: ISO9001 And CE
Model Number: OSM-GT-1320T

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: 35-45 Working days
Payment Terms: T/T, Western Union
Supply Ability: According to customer's demand
Get Best Price Contact Now

Detail Information

Product Name: Full-precision Double-roll Coating Machine (positive And Negative Roller) Color: Computer White + Grass Green
Size: 1800mm Length × 2300mm Width × 1520mm Height Effective Working Size: A, Effective Width: 1320mm; B, Thickness: 3-80mmc, Length (shortest): 300mm.
Conveying Direction: From Left To Right Conveying Speed: 5-20m/min
Highlight:

20m/min Roller Coating Equipment

,

L300mm Roller Coating Equipment

Product Description

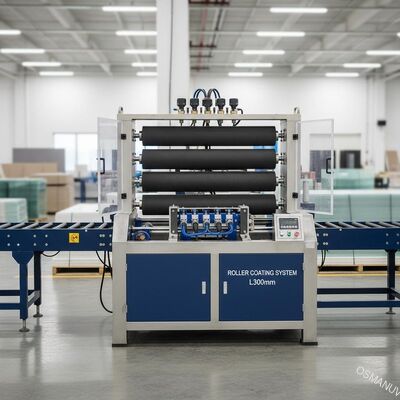

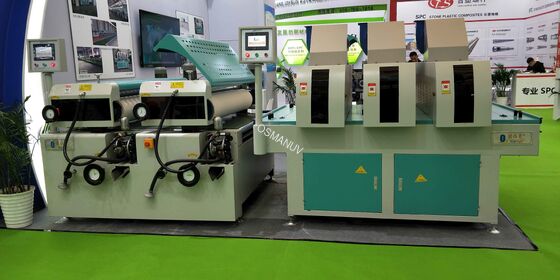

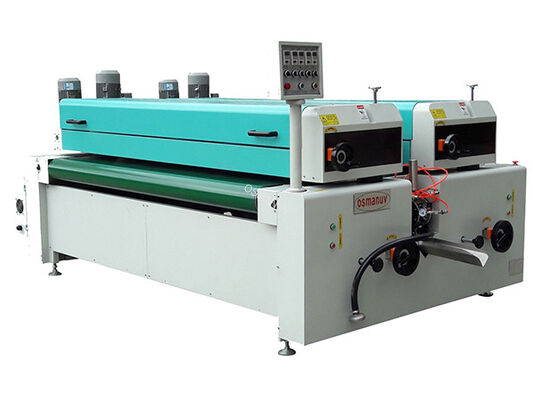

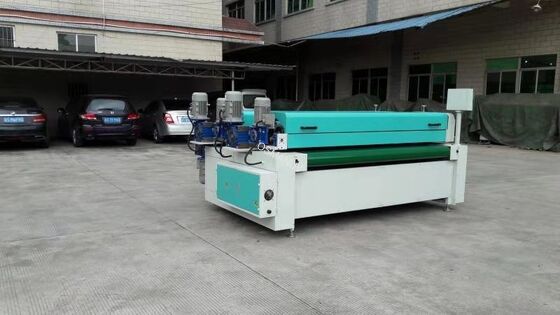

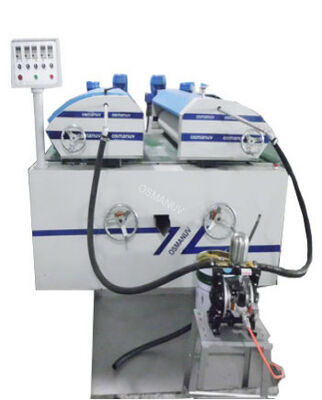

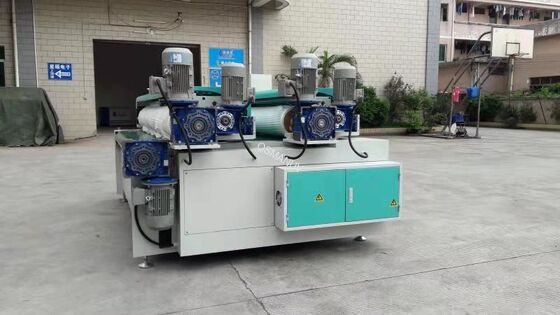

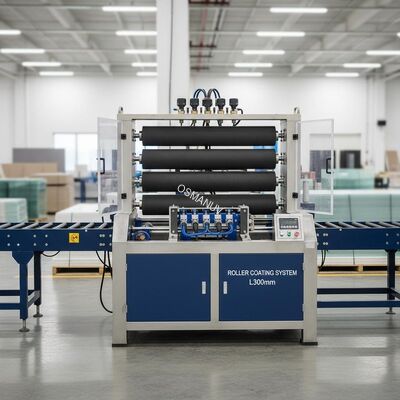

L300mm 20m/Min Roller Coating Equipment For Glass Magnesium Board



Description:

  1 This machine is suitable for all kinds of wood, plastic, metal and other flat coatings. The surface of the paint processed by this machine is smooth, full and no color difference.
  2 The operation of the electro-optical wheel and rubber wheel is controlled by an independent frequency converter and deceleration, with high precision.
  3 Equipped with imported PU scraper, wear-resistant and resistant to various solvents.
  4 This machine can coat various paints, such as PU, UV, NC, etc. The paint can be recovered quickly and without waste.
  5 Workpiece coating can be controlled between 5-10g/m.
6 Material:

The shell is made of 1.5mm steel plate bending and welding, the surface is treated with liquid paint, and the supporting wall is made of 20cm steel plate (A3 material).

7 Coating part: Adopts two groups of rolling coating system, each group system consists of steel roller and silica gel wheel, each group of rolling coating system can be lifted up and down separately.
8

Cots: the diameter:



¢250mm, length: 1470mm, Japan quality silicone production, wear-resistant, good elasticity, hardness can be customized according to customer requirements (30 degrees -- 50 degrees) between, can be resistant to all kinds of high quality coupling transmission, bearing KHV bearing, Taiwan TDA frequency converter control cots speed.

9 Metering wheel:

diameter:

¢130mm, length: 1470mm, using 45# seamless steel tube by CO² welding, surface fine grinding, do dynamic balance, runout is less than 0.05mm, the surface by hard chrome plating and polishing to achieve bright effect.Direct plug - in connection drive, can really achieve with the drive motor combined into one.

10 conveyor roller:

power:

1.5KW, diameter: ¢130mm, length: 1320mm.The 45# seamless steel tube is welded by CO², the surface is finely ground, the dynamic balance is done, the runout is less than 0.05mm, the surface is plated with hard chrome and polished to achieve the bright effect.Direct plug - in connection drive, can really achieve with the drive motor combined into one.

11 Conveyor belt:

adopt green PVC plane conveyor belt, smooth transportation and long service life.





L300mm 20m/Min Roller Coating Equipment For Glass Magnesium Board 0L300mm 20m/Min Roller Coating Equipment For Glass Magnesium Board 1



FAQ


Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
