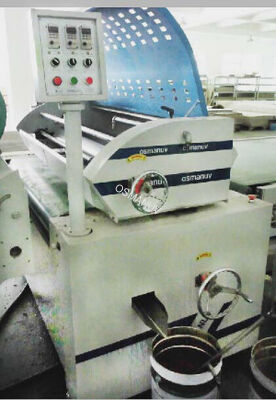

ISO9001 5KW Roller Coating Equipment With 1.5mm Steel Plate
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Osmanuv |
| Certification: | ISO9001 And CE |
| Model Number: | OSM-GT-1320-I |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Box |
| Delivery Time: | 35-45 Working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | According to customer's demand |
|
Detail Information |
|||
| Size: | 1000 Mm X 2300 Mm X 14520 Mm | Product Name: | Single Roll Coating Machine |
|---|---|---|---|
| Color: | Computer White / Green | Weight: | 900KG |
| Speed: | 5-20m/min | Total Power: | 5 KW |
| Highlight: | ISO9001 Roller Coating Equipment,5KW Roller Coating Equipment |
||
Product Description

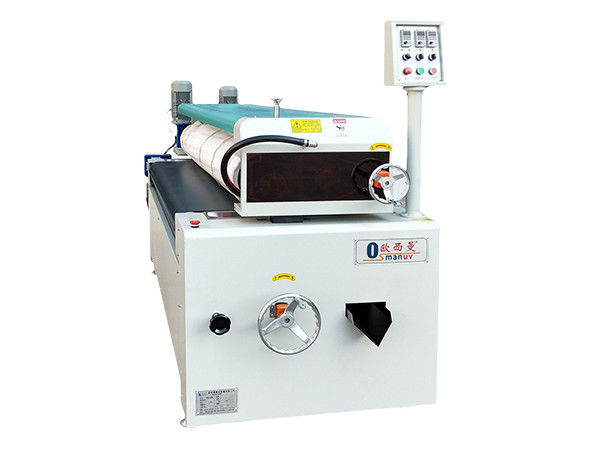

ISO9001 5KW Roller Coating Equipment With 1.5mm Steel Plate
Description:
It is suitable for all kinds of wood, plastic, metal and other flat coatings. The surface of the paint processed by this machine is smooth, full, and no color difference.
Describe
| 1 | Effective working size: | a effective width: 1320mm; b, thickness: 3-80mmc, length (shortest): 300mm. |
| 2 | Material: |
The shell is made of 1.5mm steel plate bent and welded, the surface is treated with liquid paint, and the support wall is made of 20cm steel plate (A3 material) |

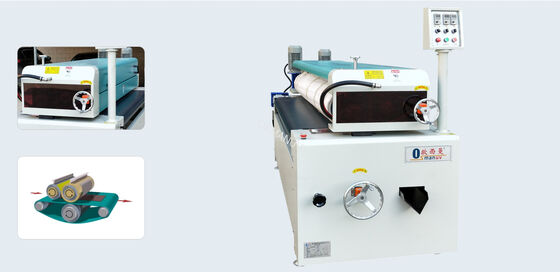

| 3 | Coating part: | A single group of roller coating system is adopted. Each group of systems includes steel rollers and silicone wheels. Each group of roller coating system can be lifted and lowered independently. |
| 4 | Glue roller |
diameter: ￠250mm, length: 1470mm, made of high-quality Japanese silicone, wear-resistant, good elasticity, hardness can be customized according to customer requirements (30 degrees -50 degrees), can withstand various solvents. Use high quality Coupling drive, bearing adopts KHV bearing, Taiwan Delta inverter controls glue roller speed. |
| 5 | Metering wheel |
Diameter: ￠150 mm, length: 1470mm, 45# seamless steel tube is welded by CO², the surface is finely ground, the balance is dynamic, the runout is less than 0.05mm, and the surface is brightened by electroplating hard chrome and polishing. Direct plug-in connection transmission, which can truly achieve the integration with the drive motor. |
| 6 |
Conveying roller: |
power: 1.5KW, diameter: ￠130 mm, length: 1320mm. The 45# seamless steel pipe is welded by CO², the surface is finely ground, and the balance is dynamic, the runout is less than 0.05mm, and the surface is brightened by electroplating hard chrome and polishing. The direct plug-in connection transmission can truly achieve the integration with the drive motor. |
| 7 | Conveyor belt: |
Green PVC flat conveyor belt is adopted, which is stable and has long service life. |
| 8 |
Working height: |
0～850mm (the height of the belt from the ground), the height of the roller is equipped with a position indicator. |

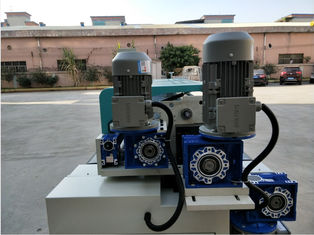

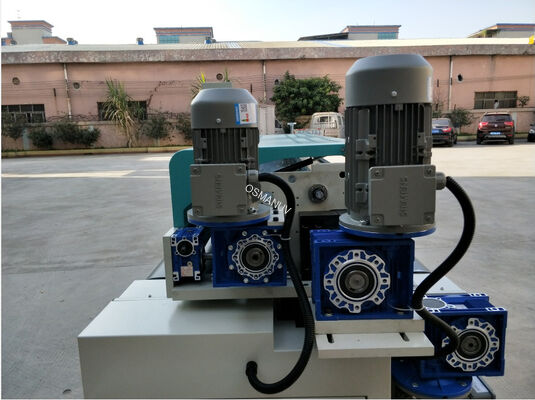

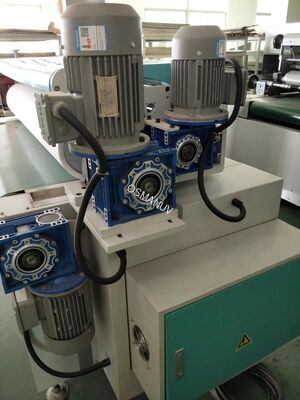

| 9 | Control system: | 3 sets of Wanxin speed machine, 3 sets of Delta frequency converter, each roller can be adjusted independently. |
| 10 | Safety device | This machine has leakage circuit breaker, motor overload protection, abnormal emergency switch, control line fuse, etc. in line with international safety standards |
FAQ
Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
