Water Based Barrier Coat Production Line Coating Pulp Molding

Water Based Barrier Coat Production Line Coating Pulp Molding

Product Details:

Place of Origin: China
Brand Name: Single-station SpinCoating Machine
Certification: CE Certification
Model Number: OSM-XT-2400T

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden box
Delivery Time: Stock
Payment Terms: T/T
Supply Ability: according to customer's demand
Get Best Price Contact Now

Detail Information

Product Name: 24-station Spin Coating Machine Coating Material: Water Based Barrier Coat
Use Coat: 2-8g Coating Precision: High Precision
Coating Speed: High Speed Coating Cost: Low Cost
Model: OSM-XT-2400t Version: Version 2.0
Max Coating Diameter: 380mm
Highlight:

White UV Coating Machine

,

Pulp Molding UV Coating Machine

,

Spin UV Coating Machine

Product Description

Product Description:



Version 2.0 of 24-station spin coating production ...



The 24-Station Spin Coating Production Line Version 2.0 offered by Dongguan Osmanuv Machinery Equipment Co., Ltd. is a cutting-edge solution for precise coating applications in various industries, ensuring exceptional consistency and control across different substrates.



Features:

  • Precision Coating for even thickness
  • Versatile with a wide range of substrates
  • User-Friendly Interface for easy operation
  • High Efficiency for enhanced productivity
  • Customizable Parameters for specific needs
  • Reliable with robust construction
  • Safety Features for operator protection


Technical Parameters:

4.2m Pre-Conveyor Suitable for conveying workpieces in assembly line operations such as paper and plastic packaging, plastic products, and flat board crafts. Size: 4200mm L x 2500mm W x 850mm H. Supply Voltage: 380V 50HZ. Material: Shell made of 1.5mm cold-rolled plate. Conveying Direction: From right to left. Power: 0.75kW.

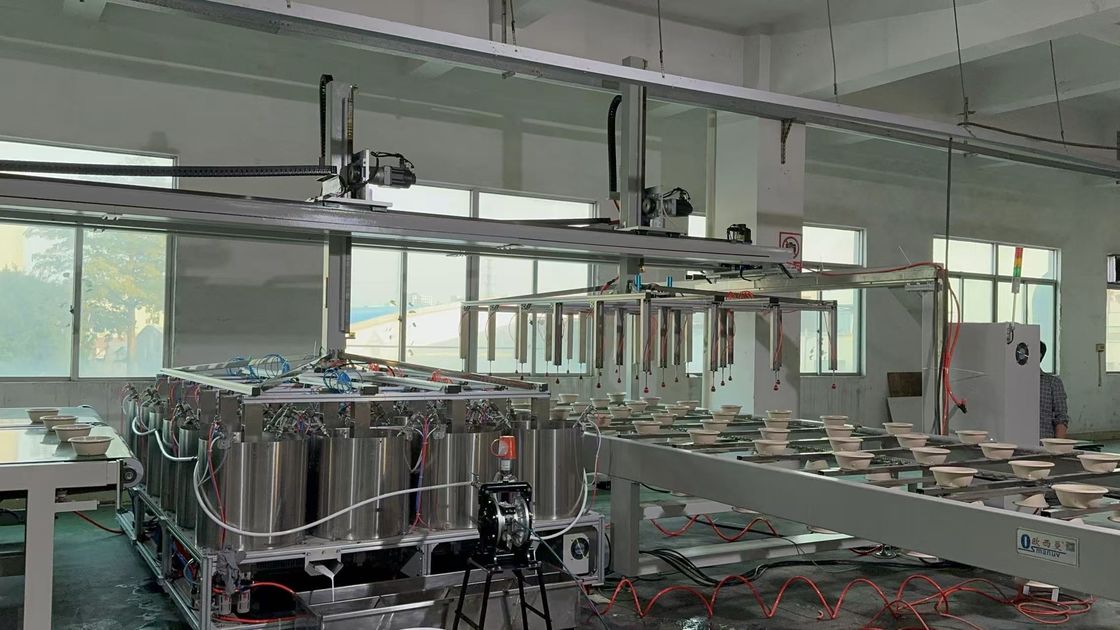

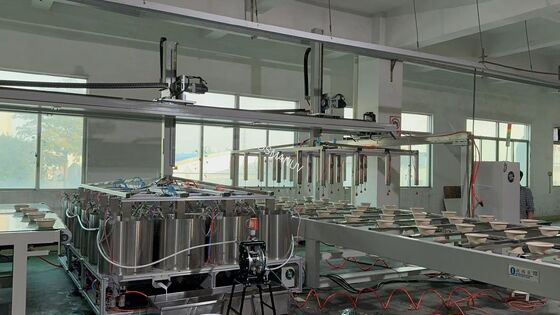

Gantry Robot (Double-station) Application: Smooth loading and unloading of paper-plastic packaging and plastic products on the assembly line. Feeding System: Workpiece surface adsorbed by vacuum suction cup. Reclaiming System: Automatic removal of sprayed products with a special fixture. Power Part: Driven by Delta servo motor. Control Electrical Parts: CHNT, Delta, OMRON.

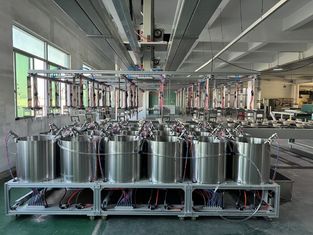

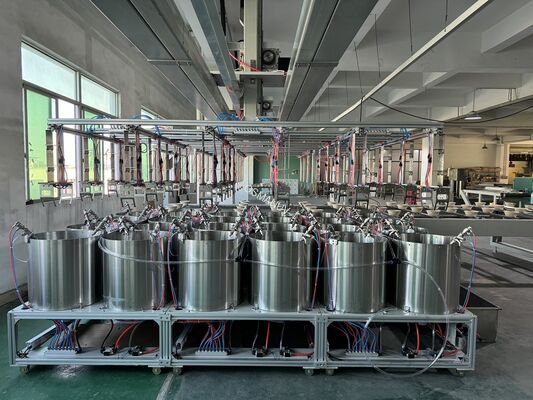

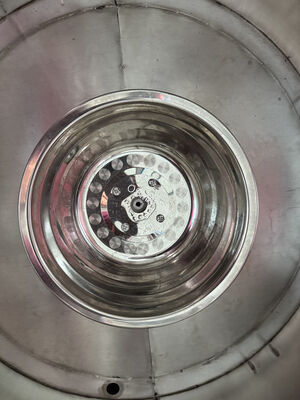

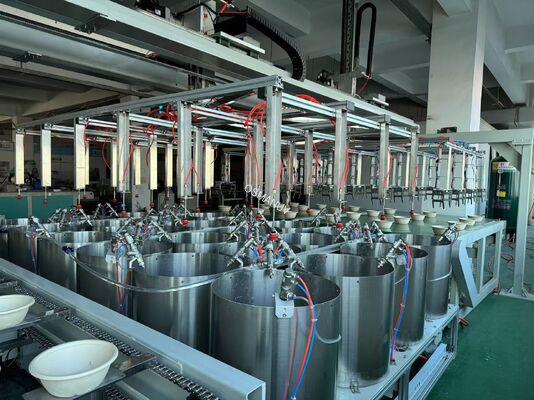

24-station Spin Coating Machine Size: Length 3250mm x Width 2150mm x Height 1020mm. Spray Room: Made of 304# stainless steel with 24 stations. Nozzle: Taiyuan Changyuan. Rotation System: Controlled by servo motor. Oil Supply System: Pneumatic diaphragm pump. Electrical Parts: CHNT contactors, Delta servo motors, imported switches. Safety System: Over-temperature preventer, motor overload protection, emergency stop switch.
21m Infrared Drying Machine Size: Length 21000mm x Width 2700mm x Height 1680mm. Material: A3 board shell with thermal insulation cotton. Light Tube: Infrared IR lamp tube. Effective Drying Width: 2400mm. Control System: Taiwan Delta inverter. Electrical Parts: OMRON thermostat, CHNT contactor, Taiwan Delta inverter. Security System: Over-temperature preventer, motor overload protection.
Air Cooling Conveyor Size: Length 3000mm x Width 2750mm x Height 1250mm. Material: Outer shell of 2.0 cold-rolled plate, Teflon conveyor belt. Conveyor Speed: 1-10m/min. Electrical Parts: OMRON thermostat, CHNT contactor, Taiwan Delta inverter. Safety System: Motor overload protection, control circuit insurance.


Applications:

The 24-Station Spin Coating Production Line is ideal for industries requiring precise coating applications, such as paper-plastic packaging, plastic products, and various crafts.



Customization:

Tailored solutions are available to meet unique customer requirements, ensuring the equipment aligns perfectly with specific manufacturing needs.



Support and Services:

The Coating Machine is a state-of-the-art product designed to provide high-quality coating for various materials. Our technical support and services for this product include:

  • Installation and setup assistance
  • Product training and education
  • Product troubleshooting and maintenance
  • Product repair and replacement services
  • Expert consultation for customized solutions

Our team of experienced professionals is dedicated to ensuring that your UV Coating Machine operates at its optimal level of performance. Contact us today to learn more about our technical support and services!



Packing and Shipping:

Product Packaging:

  • The UV coating machine will be securely packaged in a sturdy cardboard box.
  • The machine will be wrapped in bubble wrap and placed in foam inserts to prevent damage during shipping.
  • All necessary accessories and user manual will be included in the package.

Shipping:

  • The UV coating machine will be shipped via a reputable courier service.
  • Shipping times may vary depending on the destination, but we will provide a tracking number for the customer to monitor their shipment.
  • We offer worldwide shipping, but please note that additional fees may apply for international orders.



FAQ:

Q1: Is the machine certified?

A1: Yes, it holds CE certification.

Q2: What is the minimum order quantity?

A2: The minimum order is 1 set.

Q3: Is the price negotiable?

A3: Yes, pricing is negotiable.

Q4: How is the machine packaged?

A4: It comes in a wooden box.

Q5: What are the accepted payment terms?

A5:  T/T can be accepted.
