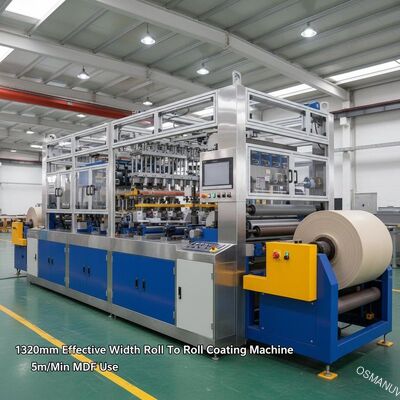

1320mm Effective Width Roll To Roll Coating Machine 5m/Min MDF Use
Product Details:
Place of Origin: | CHINA |
Brand Name: | Osmanuv |
Certification: | ISO9001 And CE |
Model Number: | OSM-GT-1320-Ⅱ |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 Set |
---|---|
Price: | Negotiable |
Packaging Details: | Wooden Box |
Delivery Time: | 35-45 Working days |
Payment Terms: | T/T, Western Union |
Supply Ability: | According to customer's demand |
Detail Information |
|||
Product Name: | Double Roll Coater (sponge Roll) | Size: | 1800mm Long × 2300mm Wide × 1520mm High. (According To Actual Size) |
---|---|---|---|
Effective Working Size: | A, Effective Width: 1320mm; B, Thickness: 3-80mmc, Length (shortest): 300mm. | Conveying Speed: | 5-20m/min. |
Conveying Direction: | From Left To Right. | Weight: | 1200kg |
Highlight: | W1320mm roll to roll coating machine,5m/Min roll to roll coating machine |
Product Description

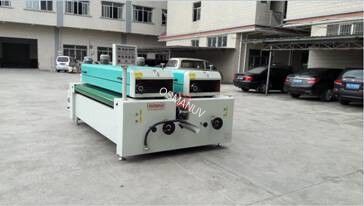

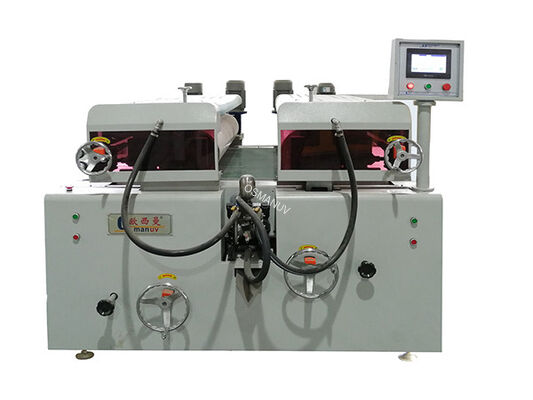

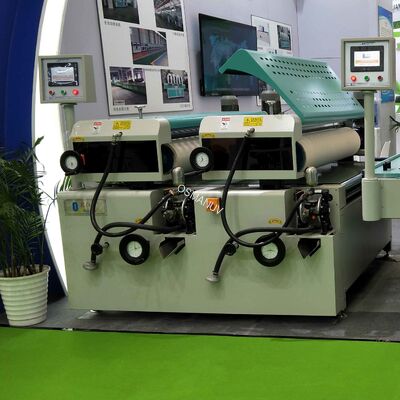

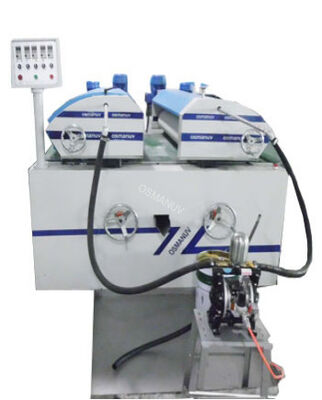

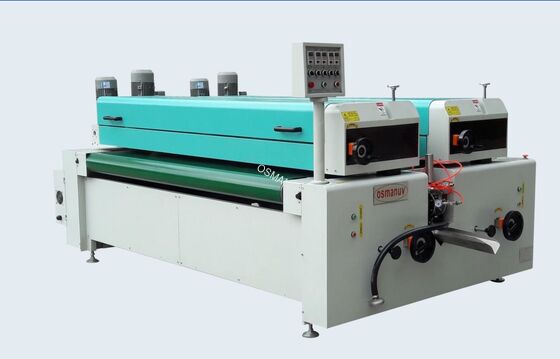

1320mm Effective Width Roll To Roll Coating Machine 5m/Min MDF Use
Description:
1 | This machine is specially designed for the surface paint coating of panel furniture and MDF, especially for coating water-based paint on the surface of MDF. | |
2 | This machine adopts two sets of sponge roller coating system, with large coating volume, strong covering power and good fullness. | |
3 | The conveying motor and frequency converter of this machine adopt imported brands or well-known domestic brands (customers can choose to match) | |
4 |
Sponge roller coating wheel is convenient and quick to disassemble and assemble. The distance between steel wheel and sponge roller can be adjusted by worm wheel and worm, and display is installed at the same time. |
|
5 | This machine is easy to operate and has wide practicability. | |
6 | Material |
The shell is made of 1.5mm steel plate by bending and welding, the surface is treated with liquid paint, and the supporting wall is made of 20cm steel plate (A3 material). |
7 | Coating part: |
Double-group roller coating system is adopted. Each group system includes steel roller and sponge wheel. Each group of roller coating system can be lifted and lowered independently. |
8 | Coating roller: | diameter: ¢250mm, length: 1470mm, made of high-quality Japanese sponge, wear-resistant, good elasticity, hardness can be customized according to customer requirements (between 30 degrees and 50 degrees), and can withstand various solvents. High-quality coupling transmission, bearing adopts KHV bearing, Taiwan Delta frequency converter controls the speed of rubber roller. |
9 |
Measuring wheel: |
Diameter: ¢130 mm, length: 1470mm, using 45# seamless steel pipe welded by CO², the surface is finely ground and dynamically balanced, the runout is less than 0.05mm, and the surface is electroplated and polished to achieve a bright effect. Direct plug-in connection transmission can truly be integrated with the drive motor. |
10 | Conveying roller: |
power: 1.5KW, diameter: ¢130 mm, length: 1320mm. The 45# seamless steel pipe is welded by CO², and the surface is finely ground and dynamically balanced. The runout is less than 0.05mm. The surface is hard chrome electroplated and polished to achieve a bright effect. Direct plug-in connection transmission can truly be integrated with the drive motor. |
11 | Conveyor belt: | Green PVC flat conveyor belt is adopted, which has stable conveying and long service life. |
12 | Conveying speed: | 5-20m/min. |
13 | Working height: | 0~850mm (the height of the belt from the ground), the height of the roller is equipped with a position indicator. |
14 | Control system: | 5 sets of RV reducers and 5 sets of Delta frequency converters are adopted, and each roller can be adjusted independently. |
15 | Electrical appliances: | use Delta frequency converter, CHNT contactor, RV reducer, Siemens motor, and use domestic famous brands and other famous-brand electrical appliances that meet international safety standards. |
16 | Safety device: |
This machine has leakage circuit breaker, motor overload protection, abnormal emergency switch, control circuit fuse, etc. in line with international safety standards. |
17 | Conveying direction | from left to right. |
FAQ
Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
