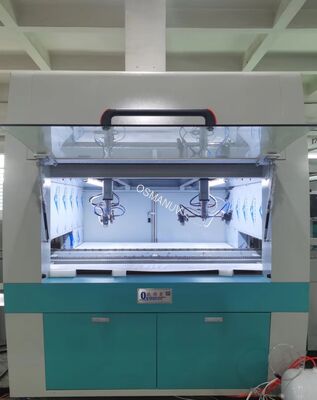

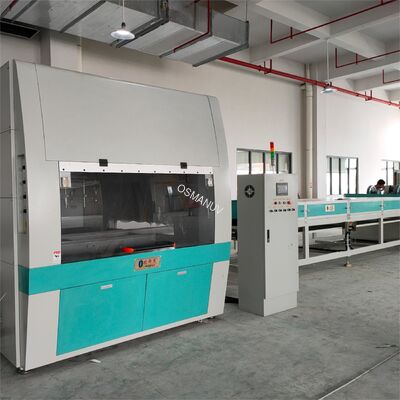

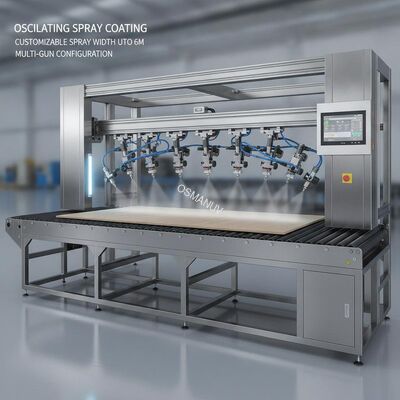

Oscillating Spray Coating Machine for Furniture & Panels – Customizable Spray Width up to 6m with Multi-Gun Configuration

This customizable spray coating machine utilizes high-pressure airless, air-assisted, or electrostatic technology to atomize coatings and apply them uniformly onto product surfaces. Available in oscillating spray, electrostatic powder/liquid, and fully automatic production line configurations.

The system is fully customizable in spray width, number of guns, conveyor speed, coating type, and automation level. Compared to manual brushing or rolling, spray coating achieves up to 10-15 times higher efficiency (200-500 m²/hour for single operator), produces a smoother and more uniform coating without brush marks, and provides better adhesion through mechanical interlocking with the substrate.

Working principle: The coating is pressurized by a high-pressure pump (up to 150-350 kg/cm² for airless systems) or atomized by compressed air, then sprayed through a nozzle to form a fine mist that uniformly deposits onto the target surface. Electrostatic systems add an electrostatic charge to the coating particles for enhanced transfer efficiency.

• Wood & furniture: MDF, particleboard, solid wood - varnish, primer, topcoat finishing
• Automotive parts: Body panels, interior trim, bumpers - paint and protective coatings
• Metal processing: Steel coils, aluminum profiles, hardware - anti-corrosion, decorative coatings
• Plastic & electronics: Phone cases, appliance housings, PCBs - conformal coating, UV ink
• Building materials: Wall panels, doors, windows - architectural coatings
• Consumer goods: Toys, sporting goods, packaging - color finishing
• Specialty applications: Thermal spray (arc/plasma) for anti-wear coatings

This spray coating machine is highly customizable to meet your specific production requirements:

• Spray width: Customizable from 300mm to 6,000mm+
• Number & type of guns: Airless, air-assisted, electrostatic, or HVLP - customizable per coating type
• Gun arrangement: Fixed, oscillating (1-2 arms), or robotic multi-axis
• Conveyor type: Chain-on-edge,吊挂线,地轨线, rotary table - customizable
• Coating type: Liquid (solvent/water-based), powder, hot-melt, UV - customizable
• Drying system: Hot air oven, IR, UV, or multi-layer baking line
• Control system: Manual / Semi-automatic / Fully automatic with recipe management
• Environment compliance: Water curtain / Dry filter / Cyclone + after-filter - customizable per emission standards
• Stations: 1-6 stations for multi-coat, multi-bake processes
• Cleanroom compatibility: Class 100-100000

• High efficiency: Spraying speed 200-500 m²/hour - 10-15× faster than manual brushing
• Superior finish: Smooth, uniform, no brush marks or roller lines
• Excellent adhesion: High-pressure or electrostatic deposition creates mechanical interlocking with substrate
• Material saving: Airless spray reduces paint waste by 20-40% vs. traditional methods
• Flexible configuration: Modular design supports future upgrades and capacity expansion
• Automated color change: Quick-change systems for small batch production
• Precision control: PLC recipe management, real-time monitoring, data logging
• Environmental protection: Water curtain or dry filtration for overspray collection
• Low maintenance: Stainless steel components, quick-clean gun design

• Free process consultation - send us your product and coating for trial spraying
• Custom layout design for your production floor
• On-site installation and commissioning (customizable support packages)
• Operator training program included
• Remote troubleshooting via video call or IoT monitoring
• 12-month warranty on mechanical components (wear parts: nozzles, seals excluded)
• Spare parts availability from regional warehouses
• Preventive maintenance service contracts available
• Lifetime technical support via phone, email, or chat

• Packing: Anti-rust film + reinforced plywood case for main body and control cabinet; foam padding for fragile components (guns, control panel)
• Standard model lead time: 15-25 days after order confirmation
• Custom configuration lead time: 30-60 days (longer for multi-station or large custom lines)
• Shipping: FOB Shanghai / CIF by sea, air, or rail
• Customizable: Export crating, custom labeling, destination port documentation
