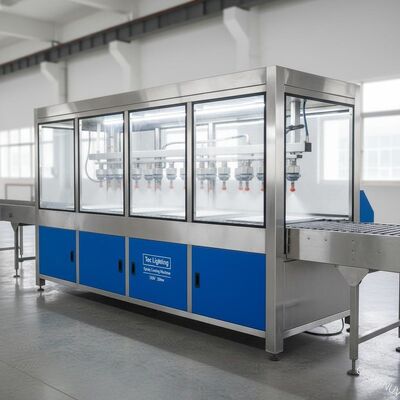

Spray Coating Machine With Conveyor System Tec Lighting 380V 28kw

Spray Coating Machine With Conveyor System Tec Lighting 380V 28kw
Spray Coating Machine With Conveyor System Tec Lighting 380V 28kw Spray Coating Machine With Conveyor System Tec Lighting 380V 28kw Spray Coating Machine With Conveyor System Tec Lighting 380V 28kw Spray Coating Machine With Conveyor System Tec Lighting 380V 28kw Spray Coating Machine With Conveyor System Tec Lighting 380V 28kw Spray Coating Machine With Conveyor System Tec Lighting 380V 28kw Spray Coating Machine With Conveyor System Tec Lighting 380V 28kw Spray Coating Machine With Conveyor System Tec Lighting 380V 28kw

Large Image :  Spray Coating Machine With Conveyor System Tec Lighting 380V 28kw

Product Details:
Place of Origin: CHINA
Brand Name: Osmanuv
Certification: ISO9001 And CE
Model Number: OSM-ZDPT-1320PT
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: 35-45 Working days
Payment Terms: T/T,Western Union
Supply Ability: According to customer's demand
Contact Now

Spray Coating Machine With Conveyor System Tec Lighting 380V 28kw

Description
Weight: 3000kg Voltage: 380v Three Phase 50-60HZ
Power(w): 28-50kw Warranty: One Year
Color: Computer White + Grass Green ,As You Like Working Speed: 50-100m/min
Highlight:

380V Spray Coating Machine

,

28kw Spray Coating Machine

,

tec lighting uv coater 28kw

Spray Coating Machine With Conveyor System Tec Lighting 380V 28kw
Product Overview
1 Suitable for coatings such as calcium silicate board, cement fiber board, steel plate and new building materials surface spraying real stone paint, water-in-water nano-color glaze, etc.
2 Japanese Mitsubishi PLC man-machine interface, Mitsubishi servo motor, inverter and other imported electrical appliances for mechanical stability
3 Spray system uses American Graco pumps and Graco large-caliber spray guns for precise spray metering control
4 Slider module system: Taiwan high-speed module system with stable performance and durability
5 Electrical part uses imported appliances (Schneider contactor, Mitsubishi servo, Japan Hequan switch, etc.) for stable mechanical performance
6 Effective spraying width: 1300mm
Conveyor System
1 Acid and alkali resistant PU belt for product transportation with bottom paint recovery and cleaning devices to prevent paint residue and back plate sticking, reducing paint waste
2 Conveying speed: 1-5 m/min
Painting System
1 4 American GRACO automatic spray guns (spray gun caliber: 1.1mm)
2 Oil supply system: Taiwan Polaroid pressure regulating and oil supply system for perfect spraying quality
3 Two groups of spraying tracks with 2 GRACO automatic spray guns each, spraying at different angles; controlled by OMRON infrared photoelectric induction
4 Maximum spray gun stroke: 3400mm reciprocating
5 OMRON electric eye controls spray gun distance and movement path for uniform paint application and significant paint savings
Spray Booth Air Filtration System
1 High-efficiency air filter above automatic spraying machine effectively filters air dust and maintains clean spraying environment
2 High-efficiency air filter above automatic spraying machine effectively filters air dust and maintains clean spraying environment
Mechanical Configuration
1 Front glass window for easy observation of sprayer working condition
2 Two high-efficiency fans for exhaust and supplementary air with filter system (excluding external air ducts and ventilation facilities)
3 Housing material: 1.5 cold-rolled plates bent and welded with computer color paint; inner wall made of 304# stainless steel mirror panel
4 Electrical part: Japan OMRON relay, CKC delay, Schneider contactor, Taiwan motor Chint leakage circuit breaker and other international safety standard compliant electrical appliances
5 Safety devices: leakage circuit breakers, control circuit fuses, and emergency switches complying with international safety standards
Machine Control Method
1 Man-machine interface: Weilun
2 Control part: Delta PLC control
3 Sliding rail drive part: Mitsubishi servo motor
Warranty
1 Whole machine guaranteed for one year; electrical part guaranteed for half a year
2 Air filter not covered by warranty - can be blown, wiped, cleaned, or replaced when contaminated

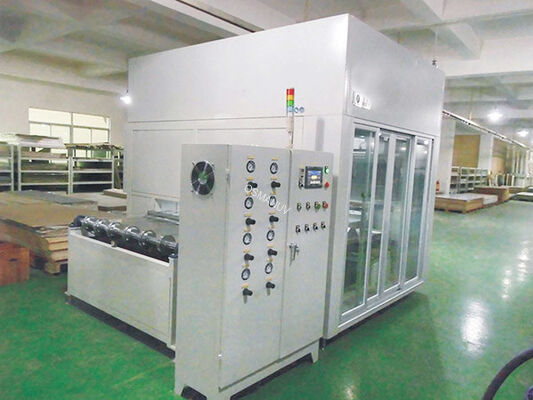

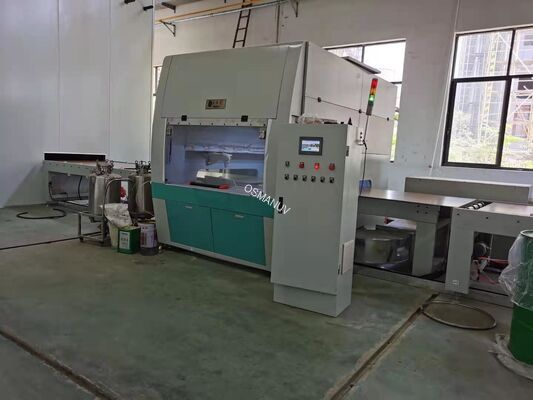

Spray coating machine front view showing control panel and conveyor system

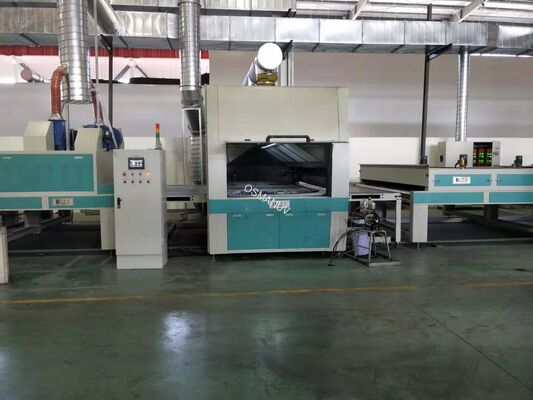

Spray coating machine side view showing spray booth and filtration system

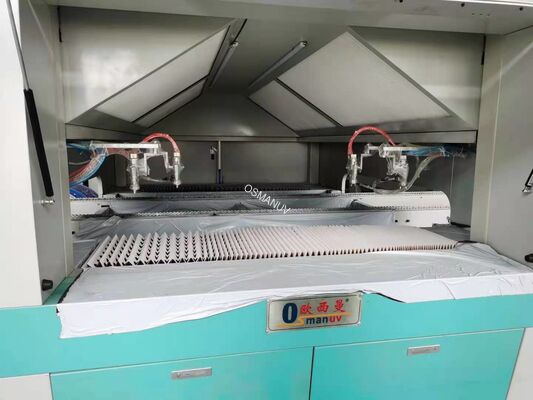

Spray coating machine operational view showing spray guns and conveyor belt
Frequently Asked Questions
Q: Are you trading company or manufacturer?
A: We are a manufacturer with foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will test your samples on our machines and provide video documentation. Factory visits are also available. Our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully compliant with GMP & ISO standards with CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty with lifelong maintenance and technical support.
