Quality Spot UV Spray Coating Machine Temperature Resistance Factory factory

Spot UV Spray Coating Machine Temperature Resistance Factory

Name: Spot UV Spray Coating Machine Temperature Resistance Factory
Brand: Dongguan Osmanuv Machinery Equipment Co., Ltd
SKU: OSM-HF-2500
Price: 4,500.00 USD
Availability: InStock

Spot UV Spray Coating Machine Temperature Resistance Factory W1320mm Spot UV Spray Coating Machine Temperature Resistance 100m/Min Product Name 30m folding dry drying way Model OSM-HF-2500 Features Natural gas heating system Tunnel divided into dehumidification, pre-curing, curing, and cooling ...

Place of Origin:CHINA

Brand Name:Osmanuv

Certification:ISO9001 And CE

Model Number:OSM-HF-2500

Minimum Order Quantity:1 Set

Price:Negotiable

Product Custom Attributes

Highlight

W1320mm Spray Coating Machine

100m/Min Spray Coating Machine

W1320mm spot uv coater machine

Weight:

3000kg

Warranty:

One Year

Name:

Folding Oven

Working Speed:

50-100m/min

Net Paper Width:

1320mm

Color:

As You Like

Product Description

Spot UV Spray Coating Machine Temperature Resistance Factory

W1320mm Spot UV Spray Coating Machine Temperature Resistance 100m/Min

Product Name	30m folding dry drying way
Model	OSM-HF-2500
Features	Natural gas heating system Tunnel divided into dehumidification, pre-curing, curing, and cooling sections Axial flow fan circulation for optimal four-stage processing Maximum temperature: 80°C Heating performance: 20 minutes to 70°C in winter, 15 minutes in summer Adjustable temperature with automatic control Built-in fan for stirred uniform heating Downward and upward air supply system Even heating across each plate with minimal temperature error
Mechanical Size	30000mm long × 5600mm wide × 4550mm high (length customizable)
Maximum Capacity	1220×2440×20mm plate

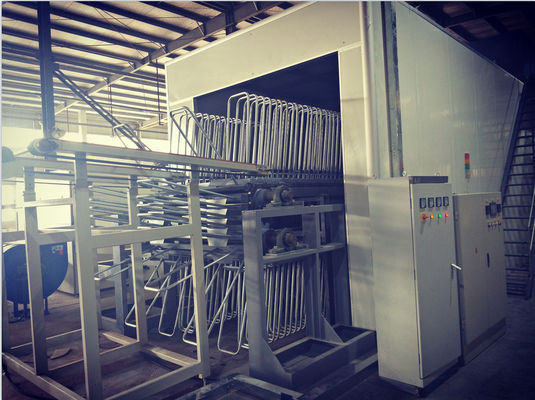

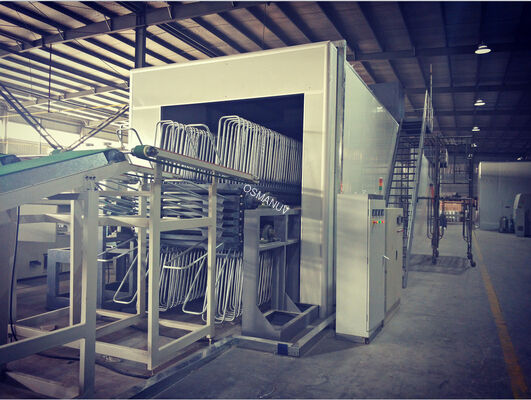

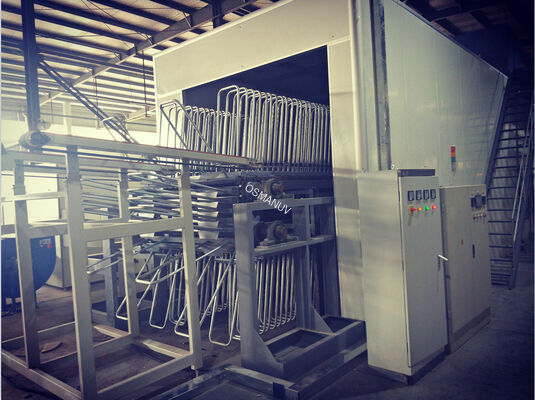

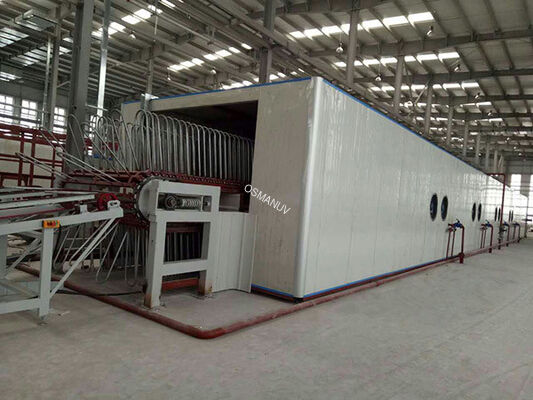

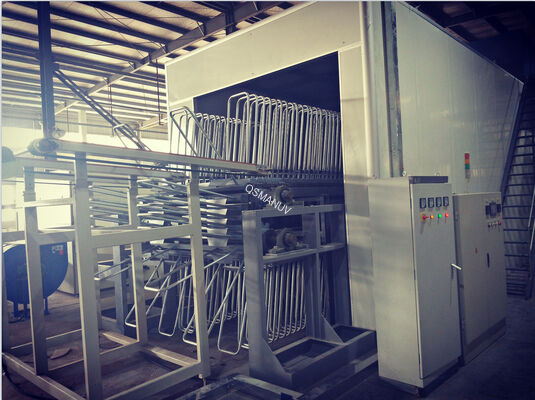

Spot UV Spray Coating Machine exterior view

Spot UV Spray Coating Machine internal mechanism

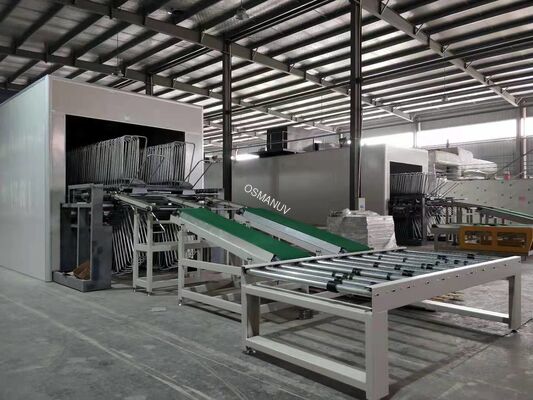

Spot UV Spray Coating Machine operational demonstration

Frequently Asked Questions

Q: Are you trading company or manufacturer?

A: We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.

Q: How can I know your machine has good quality?

A: We provide sample testing on our machines with video documentation. Factory visits are available. Our products are widely used in China, Southeast Asia, South America, and Europe.

Q: What certifications do you have?

A: Our production complies with GMP & ISO standards, and our products have passed CE certification for export.

Q: What is your Quality Warranty?

A: One year warranty with lifelong maintenance and technical support.
