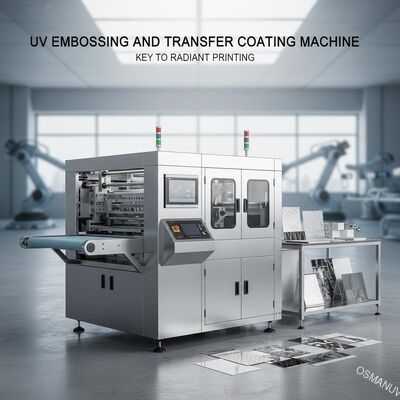

UV Embossing And Transfer Coating Machine Key To Vibrant Printing
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Osmanuv |
| Certification: | ISO9001 And CE |
| Model Number: | OSM-ZY-1320 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Box |
| Delivery Time: | 35-45 Work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | According to customer's demand |
|
Detail Information |
|||
| Mechanical Dimensions: | L：2500mm×W：2440mm×H：1850mm | Effective Working Size: | A. Effective Width: 1320mm; B. Thickness: 2-80mm. Length (shortest): 250mm. |
|---|---|---|---|
| Power Supply Voltage: | 360-410V 50HZ | Lamination Rubber Roller: | Diameter: ￠205mm, Length: 1430mm |
| UV Part: | Two Sets Of Independent Light Boxes Are Used, Equipped With 2 British PRIMARC Mercury Lamps, And The Height And Angle Of The Lamp Tube Can Be Adjusted. | UV Lampshade: | Professional Reflective Material (German Alanod Reflective Sheet) Is Used To Reflect Ultraviolet Light, Which Is Durable And Greatly Improves The Utilization Rate Of Ultraviolet Light (can Be Increased By More Than 30%). |
| Electrical Appliances: | OMRON Relay Delta Servo Motor Acceleration And Reduction Gear Transmission, CHNT Contactor, CKC Brand Delay, Switch Produced By Japan Izumi Company, All Meet CE Standards. | Working Height: | 0~850mm (belt Height From The Ground), Roller Height Is Equipped With A Position Display |
| Highlight: | Vibrant Printing Transfer Coating Machine,UV Embossing Transfer Coating Machine,UV Embossing And Transfer Coating Machine |
||
Product Description
Precise Printing On Acrylic Continuous UV Embossing Machine Durable
Product Description:
The UV embossing machine stands out as a precise and efficient printing tool extensively used in the printing and processing of various materials, notably acrylic products. Within the realm of acrylic product processing, the UV embossing machine plays a pivotal role by imparting distinctive visual effects and textures to the products.
By harnessing UV embossing technology, a diverse array of patterns, texts, or images can be swiftly and accurately printed onto the surface of acrylic products, catering to personalized customization needs. The utilization of UV light curing technology facilitates immediate drying and solidification of the printed patterns, thereby enhancing production efficiency while upholding printing quality and longevity.
The printing effects delivered by the UV embossing machine on acrylic products are characterized by clarity, vibrancy, precision, exceptional adhesion, and wear resistance. Not only does it support single-color or multi-color printing, but it also enables the incorporation of special effects like silk screen printing and tactile embossing, ushering in a realm of design possibilities for acrylic products.
In the domain of acrylic product manufacturing, the integration of UV embossing machines streamlines product customization and brand showcasing efforts. Moreover, by embracing efficient production methodologies, this technology not only trims costs but also bolsters the competitive edge of enterprises. UV embossing technology not only elevates the visual appeal of products but also augments their value, aligning with the diverse needs and aesthetic preferences of discerning customers.
Features:
- Versatile compatibility with PC, acrylic, plastic, ceramic, calcium silicate board, metal, and other flat surfaces coated with transparent UV varnish, ensuring a smoother and flatter surface finish.
- Constructed with a 1.5mm cold-rolled plate shell, treated with liquid paint for surface enhancement. The frame comprises 100*50mm channel steel, while the support wall is crafted from 20cm steel plate (A3 material).
- Utilizes dual rollers for simultaneous extrusion, ensuring even bonding of the transfer film to the substrate. Features an automatic entanglement device to prevent film wrinkling.
- Incorporates a high-quality Japanese rubber roller with a diameter of ￠205mm and a length of 1430mm. Offers wear resistance, customizable hardness (30-50 degrees), solvent resistance, premium coupling transmission, NSK bearings, and speed control by a Taiwan Delta servo controller.
- Equipped with two independent light boxes housing British PRIMARC mercury lamps, with adjustable lamp tube height and angle.
- Utilizes professional reflective material (German alanod reflective sheet) to enhance ultraviolet light reflection, significantly boosting UV light utilization efficiency by over 30%.
Control System:
- Features an independent control system for the lamp tube with strong and weak light settings and adjustable light intensity levels (75% and 100%).
- Includes an LCD time recorder for the lamp's service life tracking, enabling easy reset to zero.
Support and Services:
Our comprehensive support and services offerings are designed to ensure your utmost satisfaction:
- Installation Support: Avail on-site installation assistance and setup guidance.
- Training Initiatives: Empower your team with essential skills through our operator training programs.
- Maintenance Solutions: Ensure optimal equipment performance with scheduled maintenance checks.
- Technical Assistance: Receive prompt and reliable support for troubleshooting and technical queries.
- Personalized Solutions: Tailored options available to effectively meet your unique requirements.
FAQ:
- Q: Where is this film laminating machine manufactured?
- A: This film laminating machine is manufactured in China.
- Q: Is this machine certified?
- A: Yes, this machine is certified with ISO9001 And CE.
- Q: What is the minimum order quantity for this machine?
- A: The minimum order quantity for this machine is 1 set.
- Q: Is the price negotiable for this machine?
- A: Yes, the price for this machine is negotiable.
- Q: What are the accepted payment terms for this machine?
- A: The accepted payment terms for this machine are T/T and Western Union.
