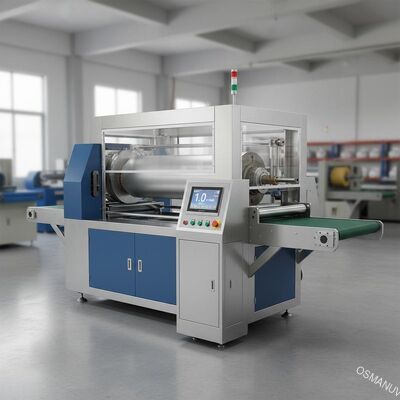

ISO9001 1m/Min Rotary Heat Transfer Machine Fully Automatic

ISO9001 1m/Min Rotary Heat Transfer Machine Fully Automatic
ISO9001 1m/Min Rotary Heat Transfer Machine Fully Automatic Product Overview 1m/Min 380V 50HZ Rotary Heat Transfer Machine Fully Automatic Application Suitable for all kinds of wood, plastics, ceramics, calcium silicate board, metal and other plane overlay applications. Applies a layer of heat ...
Place of Origin:China
Brand Name:Osmanuv
Certification:ISO9001
Model Number:OSM-ZY- 920T
Minimum Order Quantity:1 set
Price:Negotiable
Product Custom Attributes
Highlight

1m/Min Rotary Heat Transfer Machine

,

ISO9001 Rotary Heat Transfer Machine

,

1m/Min fully automatic heat press

Product Name:
Thermal Transfer Equipment
Size:
3000 Mm X 180 Mm X 2100mm
Color:
Computer White / Green
Speed:
1-3 M/min
Supply Voltage:
380V 50HZ
Working Height:
850mm (belt Height From Ground), Roller Height With Position Display
Product Description
ISO9001 1m/Min Rotary Heat Transfer Machine Fully Automatic
Product Overview

1m/Min 380V 50HZ Rotary Heat Transfer Machine Fully Automatic

Application

Suitable for all kinds of wood, plastics, ceramics, calcium silicate board, metal and other plane overlay applications. Applies a layer of heat transfer film to make plate surface patterns clearer with enhanced three-dimensional appearance.

Technical Specifications
Specification Details
1 Mechanical Dimension 3000mm long × 2300mm wide × 180mm high (Subject to actual size)
2 Effective Working Size a. Effective width: 1300mm
b. Thickness: 1-60mm
c. Length (shortest): 600mm
3 Supply Voltage 380V 50HZ
4 Material Construction Shell made of 1.5mm cold-rolled plate bending and welding, surface treated with liquid paint. Frame constructed from 100×50mm channel steel with supporting wall made of 20cm steel plate (A3 material).
5 Fitting Mechanism Double roll extrusion ensures even bonding of transfer film to substrate. Automatic entanglement device prevents film wrinkling.
6 Silicone Press Roller Diameter: Ø210mm, Length: 1400mm. Made from high-quality Japanese high-temperature resistant silicone with excellent wear resistance and elasticity. Hardness customizable between 30-50 degrees. Resistant to various solvents. Features high-quality coupling transmission and Japanese NSK bearings with frequency converter control.
7 Conveying Mode Cots transfer system for smooth conveying and long service life
8 Transportation Speed 1-3 meters/minute
9 Working Height 850mm (belt height from ground) with roller height position display
10 Electrical Components OMRON relay, Delta frequency converter, reducer, CHNT contactor, CKC brand delay components, Japan Wazumi company switches. All components comply with CE standards.
11 Safety Features Leakage circuit breaker, motor overload protection, emergency stop switch, control line fuse. All safety devices comply with international safety standards.

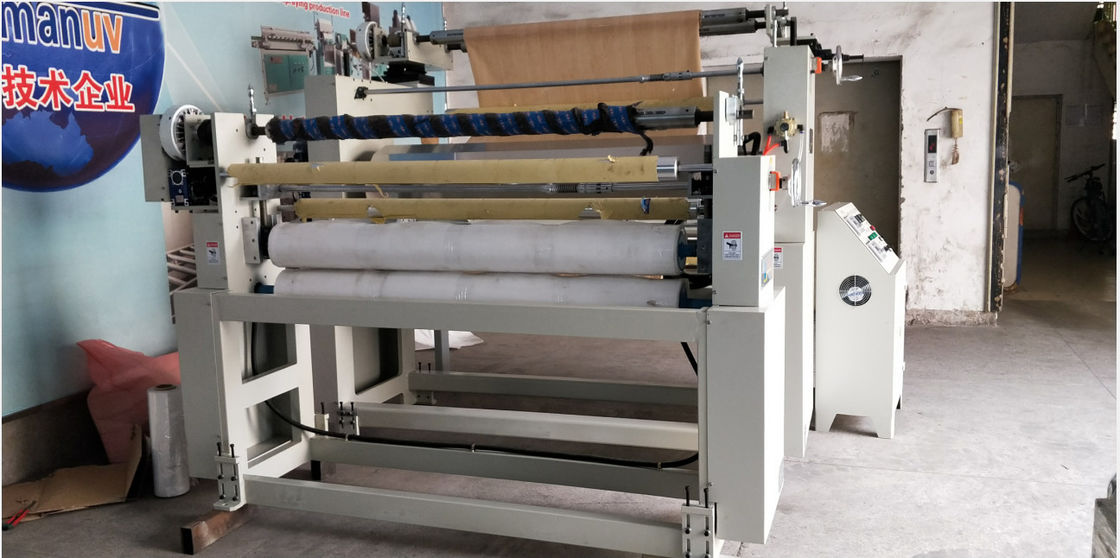

ISO9001 Rotary Heat Transfer Machine operational view
Technical diagram of Rotary Heat Transfer Machine components
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I verify your machine quality?
A: We provide sample testing on our machines with video documentation. Factory visits are available. Our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Our production complies with GMP & ISO standards and our products have passed CE certification for export.
Q: What is your Quality Warranty?
A: One year warranty with lifelong maintenance and technical support.
