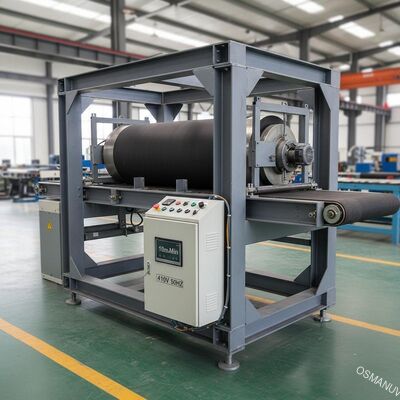

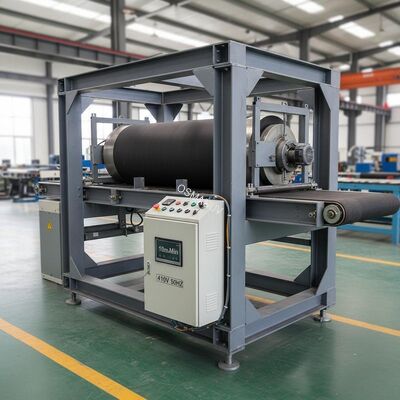

10m/Min Rotary Heat Transfer Machine Channel Steel 410V 50HZ

10m/Min Rotary Heat Transfer Machine Channel Steel 410V 50HZ

Product Details:

Place of Origin: China
Brand Name: Osmanuv
Certification: ISO9001
Model Number: OSM-UVZY-1300A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 30 WORK DAYS
Payment Terms: T/T, Western Union
Get Best Price Contact Now

Detail Information

Color: White And Green Voltage: 50HZ
Power Supply: 360-410V Product Name: Transfer Equipment
Size: 2500mm×1640mm×1850mm Material: Manufacture,channel Steel
High Light:

410V 50HZ Rotary Heat Transfer Machine

,

10m/min Rotary Heat Transfer Machine

,

410V 50HZ Rotary Heat Press Machine

Product Description

10m/Min Rotary Heat Transfer Machine Channel Steel 410V 50HZ



Description:

  1 Material: The shell is made of 1.5mm cold-rolled plate bending and welding, the surface is treated with liquid paint, the frame is made of 63*30mm channel steel, and the supporting wall is made of 20cm steel plate (A3 material).
  2 Fitting part:

double rollers are used to extrude the transfer film evenly on the substrate, and automatic entanglement device is used to prevent the film from wrinkling.


  3 Cots

the diameter: ¢80mm, length: 700mm, Japanese high quality rubber production, wear-resisting, good elasticity, hardness can be customized according to customer requirements (30 degrees - 50 degrees) between, can resist all kinds of solvent using high quality coupling transmission, bearing NSK bearing, Taiwan daida servo controller control cots speed.


  4 UV part 2 sets of independent light boxes, 2 Primarc mercury lamps, adjustable height and Angle of the lamps.
  5 UV lampshade the use of professional reflective materials (Germany Alanod reflective piece) reflect ultraviolet light, durable greatly improve the utilization rate of ultraviolet light (can be increased by more than 30%).
  6 Control system a. The lamp tube has an independent control system, and has a strong and weak light conversion, light intensity is divided into 75%, 100% adjustable. b:the lamp is equipped with LCD service time recorder, record the service life of the lamp tube, and can be zero.
  7 Transmission mode: roller and belt for transmission, smooth transmission and long service life
  8 Transmission speed 3-10m/min
  9 Working height: 0 ~ 850mm (belt height from ground), roller height equipped with position display
  10 Electrical appliances:

OMRON relay, Delta servo motor, acceleration and deceleration drive, CHNT contactors, delay using CKC brand, switch produced by Japan Wazumi Company, all in line with CE standard.


  11 Safety device:

The machine has leakage circuit breaker, motor overload protection, abnormal emergency switch, control line fuse and other compliance with international safety standards.









FAQ



Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.

Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.

Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.

Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
