Multi-Axis Customizable Robotic Manipulator | Detailed Technical Parameters for Automated Handling & Assembly Production Line
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | OSMANUV |
| Certification: | ISO9001 |
| Model Number: | Specification |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | WOOD PACKAGING |
| Delivery Time: | 30-45 days |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Origin: | Germany | Driven Type: | Electric |
|---|---|---|---|
| Uvlamptype: | Mercury Lamp Or LED UV Lamp | Material: | High-quality Plastic And Metal Components |
| Coating Thickness: | Uniform Thickness | Size: | Diameter 140mm And Height 10mm |
| Operating Temperature: | -20°C To 60°C | Usage: | For Installation, Extension, And Maintenance Of Energy Meters |
Product Description

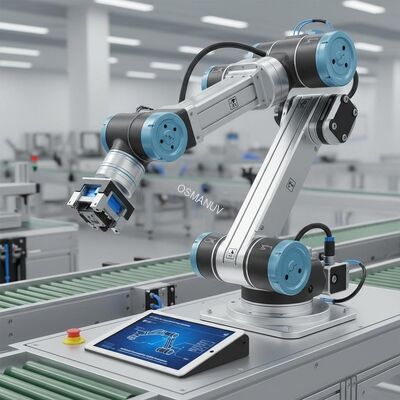

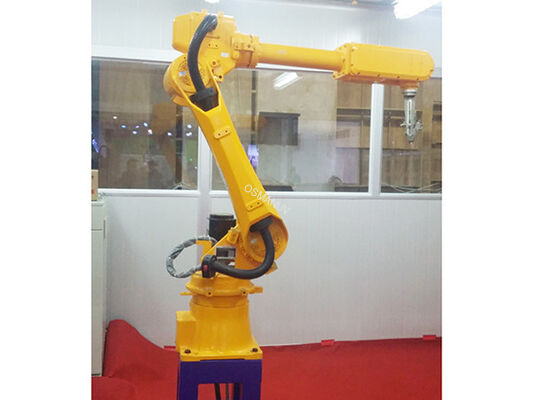

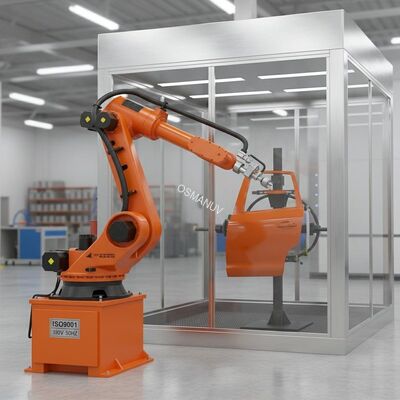

Multi-Axis Customizable Robotic Manipulator
Detailed technical parameters for automated handling and assembly production line applications.
Production Line Composition
As the automatic handling core in production line composition, the manipulator connects front feeding station and rear processing station to realize unmanned continuous production. Users can add or reduce auxiliary positioning equipment on the production line, and the manipulator's installation dimension and running path are customizable.
Product Description
Multi-axis customizable industrial manipulator is specially designed for precise grabbing and transferring of small and medium workpieces. Equipped with touch screen parameter setting system, it can store dozens of different running programs. Clamping method, arm length and protective configuration can be customized to meet different production technology requirements.
Technical Parameters
| Item | Standard Data | Customized Range |
|---|---|---|
| Rotation angle | 0~360° | Customized limited-angle locking structure |
| Control mode | PLC+Touch Screen | Customized button control system |
| Ambient working temperature | 0~45℃ | Customized high/low temperature resistant configuration |
| Body material | Aluminum alloy | Customized stainless steel anti-corrosion body |
| Air source requirement | 0.5-0.7MPa | Customized independent air circuit layout |
Applications
Suitable for 3C electronics assembly, plastic parts pick-and-place, pharmaceutical packaging, ceramic workpiece handling, laboratory automatic feeding production line.
Customization Options
Customization items include customized vacuum suction cup gripper/mechanical claw, customized dustproof/waterproof grade, customized mobile sliding base, customized offline standalone control or full-line synchronous linkage mode according to customer's processing craft.
Key Features
- Quick program switching, convenient for multi-specification workpiece production
- Low noise energy-saving servo motor, lower power consumption
- Fault self-diagnosis system for easy maintenance
- Surface anti-corrosion coating optional via customized production
Support and Services
Free technical scheme evaluation before order; online video installation guidance; periodic after-sales follow-up inspection; global spare parts supply; customized long-term maintenance contract for regular clients.
Packing and Shipping
Waterproof wrapping + shockproof carton for accessories, main body packed with export plywood case. We support customized logo printing on package and customized destination port logistics arrangement.
Frequently Asked Questions
Q1: Can you customize anti-explosion manipulator for special workshop?
A: Yes, explosion-proof electrical and whole structure can be customized.
Q2: Is customized different gripper available for multiple products?
A: We can customize quick-change fixture to adapt various workpieces.
