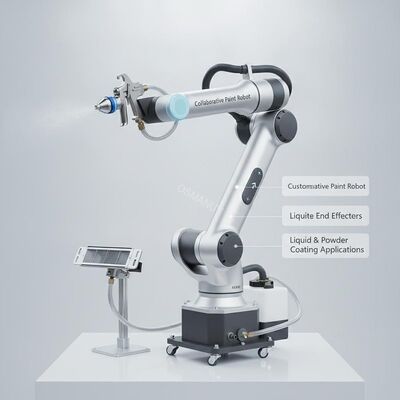

Collaborative Paint Robot with Lead-Through Teaching – Customizable End Effectors for Liquid & Powder Coating Applications

Collaborative Paint Robot with Lead-Through Teaching – Customizable End Effectors for Liquid & Powder Coating Applications
Collaborative Paint Robot with Lead-Through Teaching – Customizable End Effectors for Liquid & Powder Coating Applications
Collaborative Paint Robot with Lead-Through Teaching – Customizable End Effectors for Liquid & Powder Coating Applications Collaborative Paint Robot with Lead-Through Teaching – Customizable End Effectors for Liquid & Powder Coating Applications Collaborative Paint Robot with Lead-Through Teaching – Customizable End Effectors for Liquid & Powder Coating Applications

Large Image :  Collaborative Paint Robot with Lead-Through Teaching – Customizable End Effectors for Liquid & Powder Coating Applications

Product Details:
Place of Origin: CHINA
Brand Name: OSMANUV
Certification: ISO9001
Model Number: OSMANUV
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: WOOD PACKAGING
Delivery Time: 30 work days
Payment Terms: T/T
Supply Ability: Negotiation
Contact Now

Collaborative Paint Robot with Lead-Through Teaching – Customizable End Effectors for Liquid & Powder Coating Applications

Description
Working Width: 600/1000/1300 Color: Typically Grey Or White
Voltagerating: Up To 600V Paper Thickness: 80-600gsm
Operating Temperature: -20°C To 60°C Dimensions: Varies By Accessory, Typically 50mm X 30mm X 20mm
Installation Method: DIN Rail Mounting Or Panel Mounting Light Source: Cold Light
Highlight:

Collaborative Paint Robot with Lead-Through Teaching

,

Customizable End Effectors for Liquid Coating

,

Paint Robot for Powder Coating Applications

Collaborative Paint Robot with Lead-Through Teaching – Customizable End Effectors for Liquid & Powder Coating Applications
Product Overview
This customizable industrial robot painting system uses multi-axis articulated robots or collaborative robots to automate the application of paint, powder coating, adhesives, or other fluids onto product surfaces. Available in high-precision automotive-grade, collaborative easy-teach, and fully automated production line configurations.
The system is fully customizable in robot reach, payload, number of axes, end-of-arm tooling, conveyor type, and automation level. Robotic painting delivers consistent, repeatable finish quality, significant paint savings (up to 20%+ efficiency improvement), and 24/7 production capability compared to manual spraying. Modern systems integrate AI-powered offline programming and simulation tools to optimize painting paths and reduce setup time.
Working principle: The robot moves the applicator (spray gun or rotary bell) along programmed trajectories while precisely controlling paint flow, atomization air, fan pattern, and electrostatic voltage (for electrostatic systems). The entire process is controlled via a user-friendly HMI, with recipes stored for different products. Conveyor systems transport workpieces through the booth for continuous or batch production.
Technical Parameters
Parameter Heavy-Duty 6-Axis Model Collaborative Paint Robot Turnkey Automated Line
Number of axes 6-axis (+ external axis optional) 6-axis (collaborative) 6-axis + conveyor + positioner
Reach / working radius (customizable) Up to 2,900 mm 1.2 - 1.45 m Customizable per layout
Repeatability accuracy ±0.05 mm or better ±0.05 - 0.1 mm ±0.05 mm
Max payload at wrist (customizable) Up to 15 kg+ Up to 5-10 kg Customizable
Mounting options (customizable) Floor / Wall / Inverted Floor / Mobile cart Floor / Ceiling / Wall
Applicator types (customizable) Air spray / Airless / Electrostatic bell Air spray / Air-assisted / Electrostatic / Powder gun Multi-gun / Multi-format
Paint supply system Pressure tank / Pump Cartridge / Pump Centralized + Color change
Conveyor type (customizable) Turntable / Shuttle table Manual / Turntable Overhead / Floor track / Rotary index
Control system IRC5P / Customizable Touchscreen HMI + PLC PLC + HMI + Remote monitoring
Explosion-proof certification Ex certified (standard) Optional Ex certified (standard)
Programming method (customizable) Offline (EPS) / Teach pendant Lead-through teaching (no-code) Offline + Teach pendant
Power supply 380V, 50/60Hz, 3-phase 220V/380V, 50/60Hz 380V, 50/60Hz, 3-phase
Typical application Automotive body, aerospace, heavy machinery Small parts, high-mix low-volume Automotive, 3C, appliances, furniture
Applications
  • Automotive industry: Car bodies, bumpers, tailgates, rearview mirrors, interior parts, wheels
  • Aerospace & rail transit: Aircraft components, high-speed train bodies
  • 3C electronics: Mobile phone shells, laptop covers, tablet housings
  • Home appliances: Air conditioners, refrigerators, microwave ovens, washing machines
  • Furniture & woodworking: MDF panels, cabinets, doors, wooden toys
  • General industry: Hardware, sanitary ware, toys, sporting goods, medical devices
Customization Options
This industrial robot painting system is highly customizable to meet your specific production requirements:
  • Robot type & configuration: 6-axis standard / Collaborative (cobot) / Custom end-of-arm configuration
  • Reach / working envelope: Customizable from 1.2m to 2.9m+ to suit your product size
  • Applicator (end effector): Air spray, airless, air-assisted airless, electrostatic, powder gun or bell - customizable
  • Paint supply system: Pressure tank / Diaphragm pump / Gear pump / Cartridge - customizable based on coating type
  • Conveyor system: Floor track, overhead monorail, turntable, rotary index table, shuttle table - customizable
  • Color change system: Manual / Automatic flush & fill - customizable for 2-16 colors
  • Programming method: Teach pendant / Offline programming (EPS) / Lead-through teaching (no-code) - customizable
  • Safety & certification: Explosion-proof (Ex) / Standard industrial / Collaborative safety - customizable
  • Integration: Standalone / Inline with existing conveyor / Fully automated production cell
  • Software: Customizable paint recipes, IoT monitoring, MES integration
  • Booth configuration: Dry filter booth / Water curtain booth / Recirculating air booth - customizable
Key Features
  • Superior finish quality: Consistent film thickness with outstanding position repeatability (≤±0.05mm)
  • Significant paint savings: Electrostatic and optimized path control reduces paint waste; up to 20% efficiency improvement in automated booths
  • High productivity: 24/7 operation with fast axis speeds (up to 180°/sec) and short cycle times
  • Flexible programming: Lead-through teaching (no-code) for quick setup; offline programming supports complex trajectories for automotive inner/outer painting
  • Multi-process capability: One system supports liquid paint, powder coating, adhesive, sealant, and primer
  • Explosion-proof design: Ex-certified for safe operation in hazardous paint environments
  • Compact footprint: Compact robots allow smaller booth sizes, reducing ventilation energy and capital cost
  • Integrated Process Control: Real-time regulation of atomization air, fluid flow, and electrostatic voltage for precise process control
  • Lower operational cost: Reduced labor dependency, lower paint consumption, fewer rejects
  • High ROI: Quick payback through efficiency gains and quality improvements
Support and Services
  • Free process consultation - send your parts for feasibility assessment
  • Custom system layout design for your production floor
  • On-site installation and commissioning (customizable support packages)
  • Operator and maintenance training program included
  • Offline programming and simulation services
  • Remote troubleshooting via video call, VPN, or IoT monitoring
  • 12-24 month warranty on robot components (consumables excluded)
  • Spare parts availability from regional warehouses
  • Preventive maintenance service contracts available
  • Lifetime technical support via phone, email, and chat
Packing and Shipping
  • Packing: Anti-rust film + reinforced plywood case for robot and controller; foam padding for sensitive components (control panel, sensors)
  • Standard model lead time: 15-30 days after order confirmation
  • Custom configuration lead time: 30-60 days (longer for custom reach, custom fixtures, or full line integration)
  • Shipping: FOB Shanghai / CIF by sea, air, or rail
  • Customizable: Export crating, custom labeling, destination port documentation
Frequently Asked Questions
Q1: What is the difference between a standard industrial paint robot and a collaborative paint robot?
A: A standard industrial robot typically offers higher speed, larger payload, and longer reach. A collaborative paint robot (cobot) is designed for safe human-robot interaction, features lead-through teaching (no-code programming), and is ideal for high-mix, low-volume production where frequent re-programming is needed. Both types are customizable based on your application.
Q2: What is the typical reach and payload for automotive body painting?
A: For automotive body painting, robots with reach up to 2,900 mm and payload of 10-15 kg are commonly used. Reach is customizable from 1.2m to over 2.9m depending on the application.
