Automatic Board Turning Machine | Customizable PCB Wood Panel Flip Equipment for Full Production Line Composition
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | OSMANUV |
| Certification: | ISO9001 |
| Model Number: | Specification |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | WOOD PACKAGING |
| Delivery Time: | 30-45 days |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Connectiontype: | Screw Terminal / Plug-in | Voltagerating: | Up To 600V |
|---|---|---|---|
| Paper Thickness: | 80-600gsm | Operatingtemperature: | -20°C To 70°C |
| Compatibility: | Compatible With Various Energy Meters | Installation Method: | DIN Rail Mounting Or Panel Mounting |
| Weight: | Lightweight, Typically Under 200g | Polishing Roller Length: | 660/1060/1360 |
| Light Source: | Cold Light | ||
Product Description
This automatic board turning machine serves as an essential component in panel processing production lines. It integrates seamlessly with feeding machines, conveyors, laminating machines, cutting machines, and stacking machines to create a complete automated production flow. The entire line layout can be adjusted as required, with all connecting equipment dimensions being customizable.

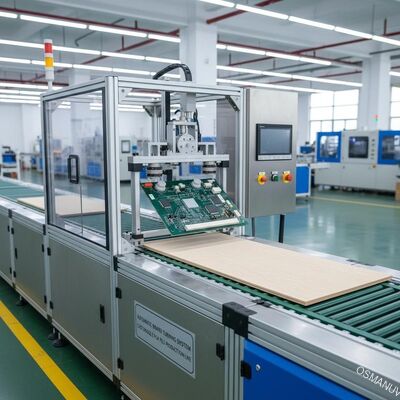

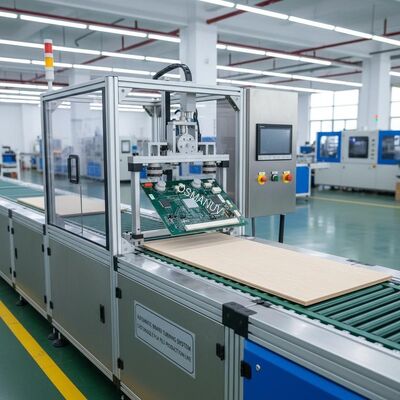

Our automatic board turning machine is engineered for 180°/90° automatic turnover of plywood, PCB, wooden panels, and furniture boards. Utilizing pneumatic or servo driving modes, it eliminates manual flipping, prevents panel scratches, and reduces labor costs. The equipment can operate as a standalone unit or integrate with upstream and downstream machinery, with overall structural dimensions customizable to accommodate your workshop space requirements.
| Item | Specification |
|---|---|
| Applicable board thickness | 2-50mm (customizable range available) |
| Max turning size | 1300×2500mm |
| Turning angle | 90°/180° optional |
| Driving type | Servo / Pneumatic |
| Working speed | 3-15pcs/min adjustable |
| Power | 3-7.5KW |
| Machine weight | 850-3200KG |
Widely utilized in wood panel furniture production lines, PCB circuit board processing, composite board manufacturing, density board production, door panel manufacturing, and lithium battery panel turnover industries. Ideal for medium to large panel processing facilities.
We provide comprehensive customization services for automatic board turning machines, including: customized board clamping width, adjustable turnover angles, customized rack height, tailored automatic sensing feeding structures, personalized PLC control systems, and customized production line docking dimensions to meet unique production requirements. All non-standard parameters support personalized adjustments.
- Stable servo control system with low failure rate and precise positioning during board flipping
- Anti-scratch rubber fixtures to protect panel surfaces
- Compact structural design to optimize workshop floor space
- Automatic induction start without manual auxiliary operation
- Core spare parts from international renowned brands for extended service life
- Upgradable and customizable control programs
- Free pre-sale production line layout drawing design
- Overseas engineer on-site installation & commissioning service (optional)
- Long-term free technical consultation and remote after-sales debugging
- One-year whole machine warranty with lifelong cost-effective spare parts supply
- Comprehensive operator training at no additional cost
Standard export packaging includes: main frame protected by plastic film and plywood cases, with vulnerable electrical components secured in foam and cartons. We support customized packaging solutions based on specific shipping requirements. Shipping options include sea, air, or express delivery, with door-to-door delivery services available upon request.
