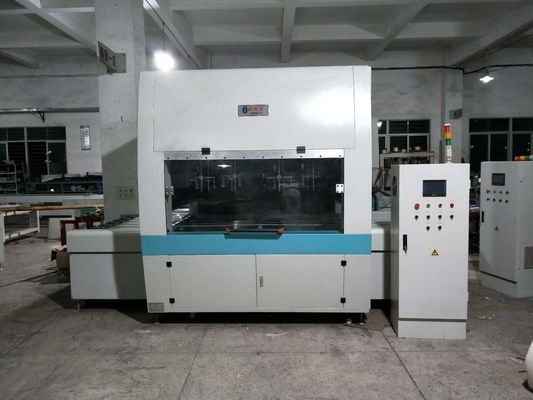

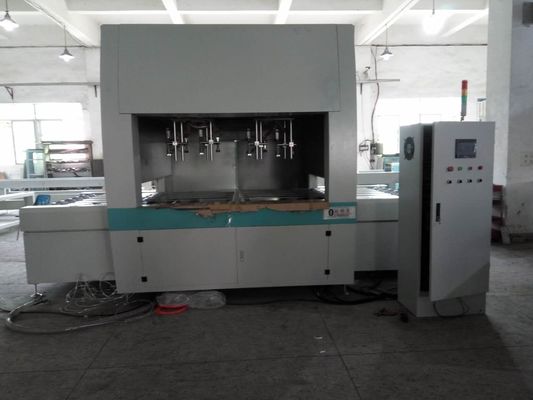

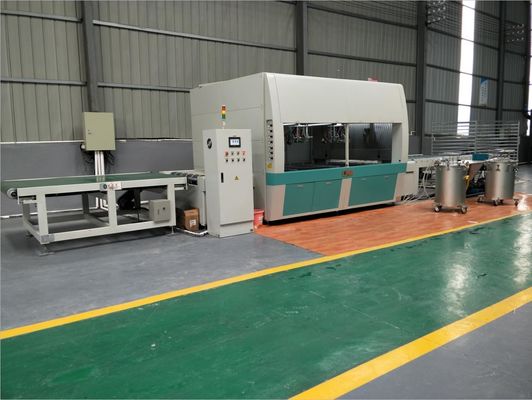

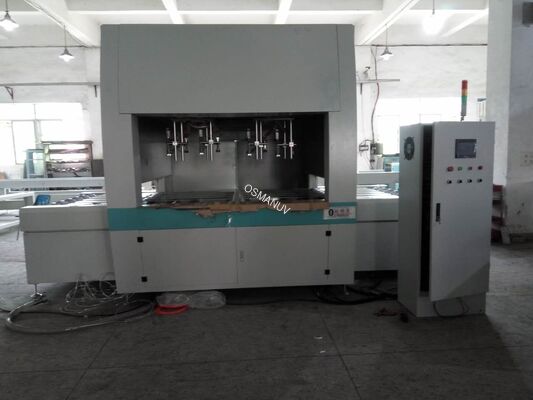

Automatic Uv Coater Machine , W1300mm Spray Paint Production Line

Automatic Uv Coater Machine , W1300mm Spray Paint Production Line

Product Details:

Place of Origin: China
Brand Name: Osmanuv
Certification: ISO9001
Model Number: OSM-ZDPT-1300TA

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 60 work days
Payment Terms: T/T, Western Union
Get Best Price Contact Now

Detail Information

Size:: 4200mm Long × 3150mm Deep × 2800mm High (according To The Actual Size) Product Name: Automatic Spray Paint Production Line
Power:: Total Power 4KW Effective Spraying Width: 1300mm
Power Supply:: 380VAC/50HZ Effective Workpiece Thickness:: 6—150mm
High Light:

4KW Uv Coater Machine


W1300mm Uv Coater Machine


4KW Spray Paint Production Line

Product Description

4KW Automatic UV Coating Machine Spray Paint Production Line W1300mm




Glue system
 1 Adopt special automatic spray gun and fuel supply system
 2 Spraying caliber: ¢3.0mm spray gun and pipeline can be interchanged
 3 Spray gun layout and driving mode: a single set of spraying track reciprocating, infrared photoelectric sensor set.
 4 Maximum stroke of spray gun: 1500mm reciprocating.

The spray gun can move in any path and open and close within the maximum stroke range to make the spray paint evenly and save paint. The stroke is controlled by OMRON electric eye




Mechanical configuration



The front of the spraying machine is equipped with a glass window for easy observation of the working conditions of the spraying machine.

 2 Housing material: 2.0 cold-rolled plates are bent and welded, and the housing is painted in computer color; the inner wall is made of 304# stainless steel mirror panel.

Electrical parts: Japan OMRON relay, CKC delay, Chint contactor, Taiwan Wanxin motor, Chint leakage circuit breaker and other famous brand appliances that meet international safety standards.

 4 Safety devices: leakage circuit breakers, control circuit fuses, etc., and abnormal emergency switches comply with international safety standards.


Automatic Uv Coater Machine , W1300mm Spray Paint Production Line 0Automatic Uv Coater Machine , W1300mm Spray Paint Production Line 1




Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
