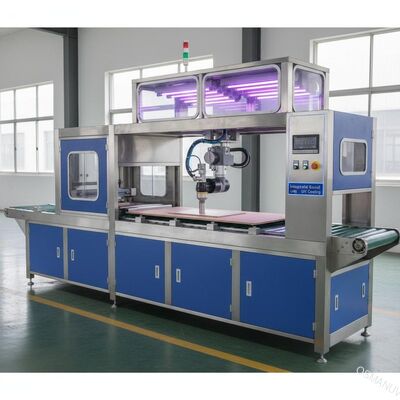

Integrated Board Line UV Coating Machine 1500mm Spray Gun 380VAC
Product Details:
| Place of Origin: | China |
| Brand Name: | Osmanuv |
| Certification: | ISO9001 |
| Model Number: | OSM-PTCT-1320ZA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 30-90 work days |
| Payment Terms: | T/T, Western Union |
|
Detail Information |
|||
| Product Name: | Exterior Wall Insulation Integrated Board Coating Line | Color: | Computer White + Grass Green |
|---|---|---|---|
| Size: | 3500mm Long X 2800mm Wide X 2680mm High | Mechanical Structure:: | Parallel Movement Back And Forth, Up And Down |
| Power:: | 4.5KW | Conveying Direction:: | From Left To Right. |
| High Light: | 380VAC tec lighting uv coater,board tec lighting uv coater,particle board Digital Spot Uv Coating Machine |
||
Product Description
380VAC Integrated Board Line UV Coating Machine 1500mm Spray Gun
The coating machine is mainly used for the surface coating process of film and paper. This machine coats the rolled substrate with a layer of glue, paint or ink with a specific function, and then winds it after drying.
Description:
| 1 | Scope of application: |

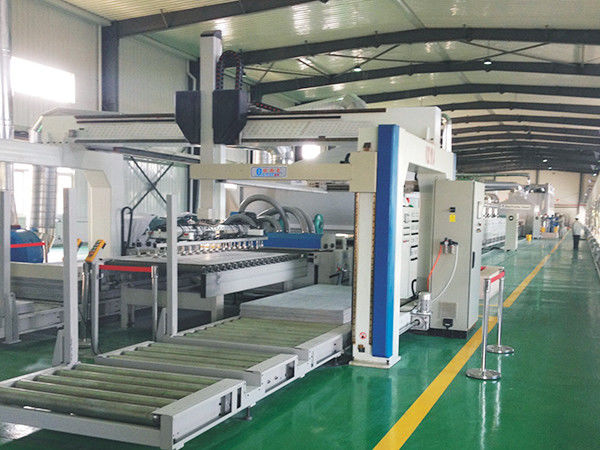

1. Calcium silicate board, glass magnesium board, cement fiber board, panel furniture, door panel, MDF board, particle board and other plates are smoothly loaded and unloaded during production. 2. The surface of the workpiece is moved by a vacuum chuck to move. 3. Configure the Japanese Mitsubishi PLC program control system to effectively control the suction of the vacuum suction cup to reduce the length of the workpiece and move it horizontally in the horizontal direction to achieve accurate suction and discharge, which is fast and stable. 4. The vacuum pump produces a strong suction force, and the adsorption force can reach 100KG, effectively preventing the slippage of the sheet, and the production efficiency is up to 6 times/min. 5. The surface of the workpiece is absorbed by the vacuum suction cup to move, which is the automatic flow of the exterior wall decoration board and panel furniture manufacturersIndispensable supporting equipment on the production line. |
| 2 | Power part: | Driven by Delta servo motor. The sprocket is connected to the chain. The linear guide is automatically lubricated. |
| 3 | Control electrical parts: | use Chint for control electrical appliances, and Taiwan Delta frequency converters for frequency converters; Omron brand for travel switches and photoelectric switches. The servo controller adopts Delta brand, Delta PLC. Pneumatic components: Airtac brand is adopted for pneumatic components. |
| 4 | Running speed | The speed can be adjusted according to the process, the speed range is 3-4 sheets/min, the conveying speed: 1-10M/min |
| 5 | Equipped with Delta PLC program control system, it can effectively control the up and down of the vacuum suction plate to absorb the workpiece, and move in parallel direction to achieve precise suction and discharge, fast and stable. | |
| 6 |
Specially designed imported linear guide rails and sliding blocks make the machine run more smoothly and quickly, and work more efficiently. Light.Electric induction energy-saving operation mode, the roller conveying speed can be adjusted according to production needs. The digital parameters of each function are displayed on the display screen, which is intuitive, easy to operate, stable and reliable. |
|
| 7 | The operating speed of the centering conveyor: the linear speed of the roller is 1-20m/min, which can be adjusted according to the actual use; | |
| 8 | Auxiliary equipment: | There is a pre-loading pallet device. When the loading of a pallet sheet is finished, the pre-placed pallet sheet is automatically transported to the loading position, with a counting function, and an automatic alarm prompts when the quantity is reached. |
| 9 | It can absorb embossed, real stone paint and other rough surfaces, the thickness of the sheet is 12MM. It adopts Chint/Delixi electrical components, and the travel switch and photoelectric switch adopt Omron brand | |
| 10 | 380VAC Integrated Board Line UV Coating Machine 1500mm Spray Gun | |
FAQ
Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
