W920mm 10m Heating Leveling Infrared Drying Machine Computer White

W920mm 10m Heating Leveling Infrared Drying Machine Computer White
W920mm 10m Heating Leveling Infrared Drying Machine Computer White W920mm 10m Heating Leveling Infrared Drying Machine Computer White W920mm 10m Heating Leveling Infrared Drying Machine Computer White W920mm 10m Heating Leveling Infrared Drying Machine Computer White

Large Image :  W920mm 10m Heating Leveling Infrared Drying Machine Computer White

Product Details:
Place of Origin: China
Brand Name: Osmanuv
Certification: ISO9001
Model Number: OSM-GWUV-920
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 30 WORK DAYS
Payment Terms: T/T,Western Union
Contact Now

W920mm 10m Heating Leveling Infrared Drying Machine Computer White

Description
Warranty: 1 Year Color: Computer White
Product Name: Infrared High Temperature Oven Size: 3000 Mm X1280 Mm X 1450mm
Weight: 1500kg Power(w): 8 Kw
Highlight:

10m Infrared Drying Machine

,

W920mm Infrared Drying Machine

W920mm 10m Heating Leveling Infrared Drying Machine Computer White
Product Overview

10m Heating Leveling W920mm Infrared Tunnel Oven - A high-performance industrial drying solution designed for precision temperature control and efficient material processing.

Technical Specifications
1 Product Name Infrared high temperature oven
2 Model OSM-IR-920
3 Specifications 3000 mm x 1280 mm x 1450 mm
4 Material The outer shell of the heating zone is made of A3 board, with insulation cotton in the middle
5 Lamp Adopts Taiwanese quartz heating tube with good heating effect
6 Effective Leveling Width 920mm
7 Conveyor Belt Chain stainless steel string rod type
8 Transmission System Transmission motor adopts Taiwan TWT gear reducer
9 Control System Adopts Taiwan Delta frequency converter, speed adjustable 5-20 meters per minute with digital display
10 Temperature Control BKC thermostat controls temperature from normal temperature to 100℃ adjustable
11 Electrical Components BKC thermostat, CHNT contactor, Taiwan Delta inverter, Japanese Izumi switch - all imported electrical appliances meeting international standards
12 Safety System Over-temperature preventer, motor overload protection, control circuit insurance, emergency stop switch - all conforming to international first-class product standards
Product Images

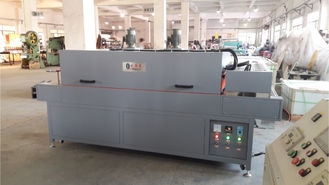

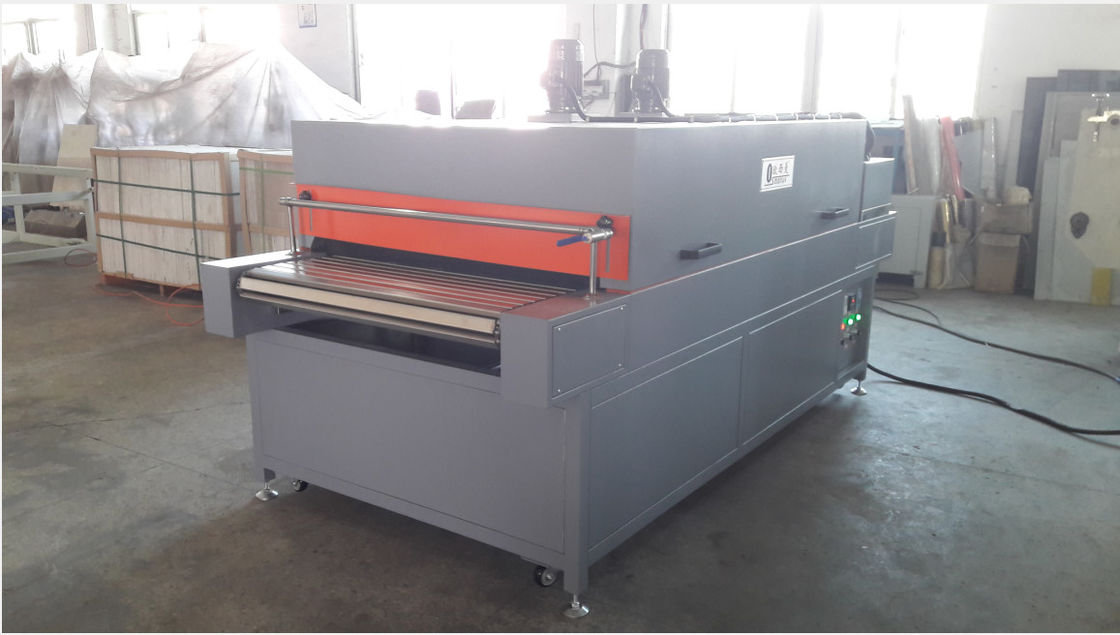

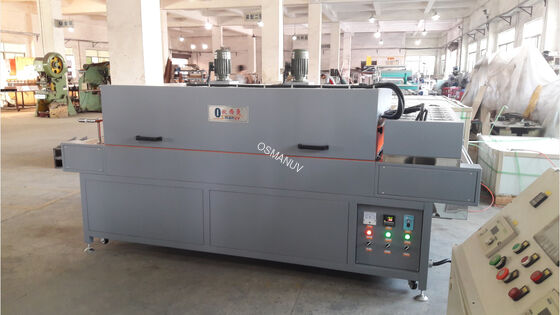

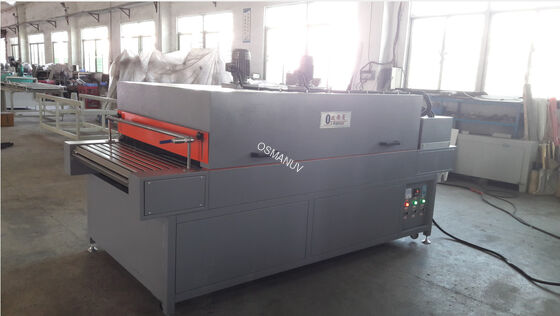

Infrared drying machine front view showing control panel and conveyor system Infrared drying machine side view displaying heating elements and structural design
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.
How can I know your machine has good quality?
We provide sample testing on our machines with video documentation. Factory visits are available. Our products are widely used in China, Southeast Asia, South America, and Europe.
What certifications do you have?
Fully compliant with GMP & ISO standards. Our products have passed CE certification for exporting.
What is your Quality Warranty?
One year warranty with lifelong maintenance and technical support.
