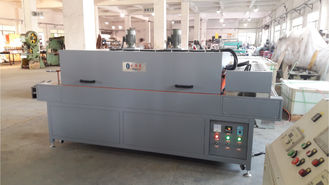

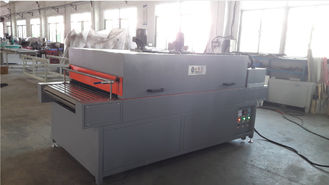

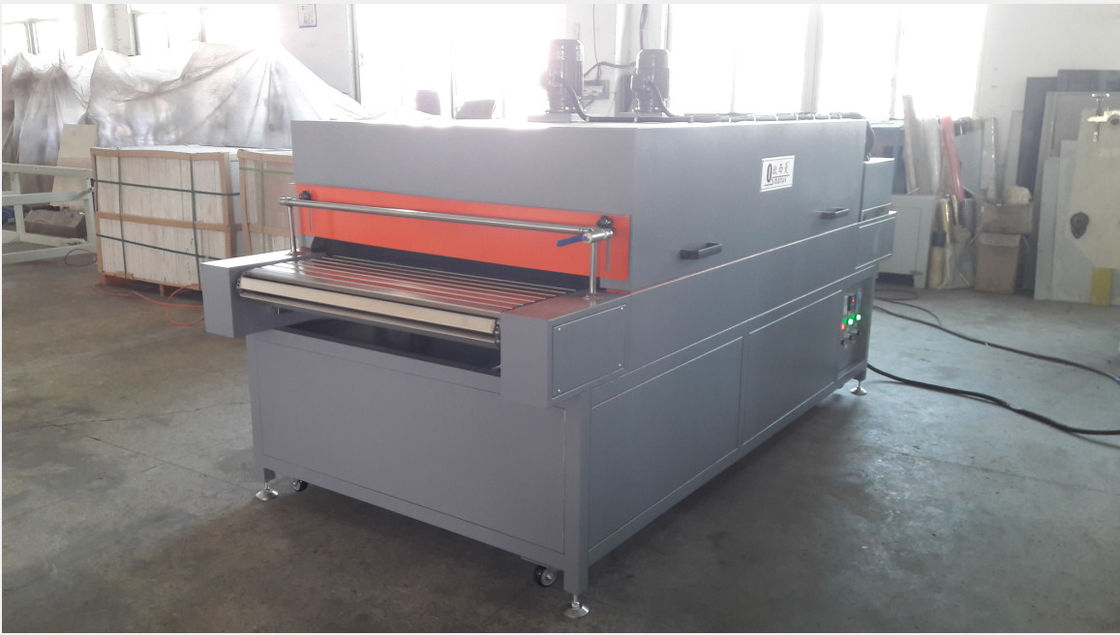

8kw W1320mm Infrared Drying Machine WITH Emergency Stop Switch
8kw Infrared Drying Machine
,W1320mm Infrared Drying Machine
8kw W1320mm Infrared Tunnel Oven with integrated emergency stop switch for industrial drying applications.
| Parameter | Specification |
|---|---|
| Product Name | Infrared high temperature oven |
| Model | OSM-IR-1320 |
| Specifications | 3000 mm x 1680 mm x 1450mm |
| Material | The outer shell of the heating zone is made of A3 board, with insulation cotton in the middle |
| Lamp | Taiwanese quartz heating tube with excellent heating performance |
| Effective Leveling Width | 1320mm |
| Conveyor Belt | Chain stainless steel string rod type |
| Transmission System | Taiwan TWT gear reducer transmission motor |
| Control System | Taiwan Delta frequency converter with adjustable speed (5-20 meters per minute) and digital speed display |
| Temperature Control | BKC thermostat controlling temperature range from normal temperature to 100℃ adjustable |
| Electrical Components | BKC thermostat, CHNT contactor, Taiwan Delta inverter, Japanese Izumi switches - all imported electrical appliances meeting international standards |
| Safety System | Over-temperature preventer, motor overload protection, control circuit insurance, emergency stop switch - all electrical components conform to international first-class product standards |
A: We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.
A: We provide sample testing on our machines with video documentation. Factory visits are available. Our products are widely used in China, Southeast Asia, South America, and Europe.
A: Our production follows GMP & ISO standards and our products have passed CE certification for export.
A: One year warranty with lifelong maintenance and technical support.
-
