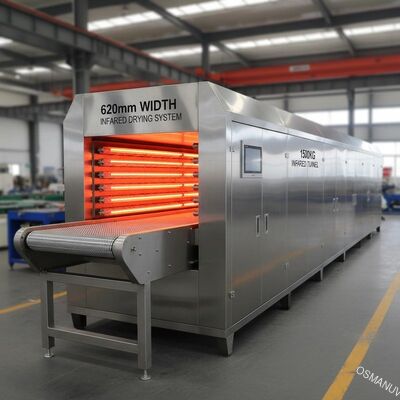

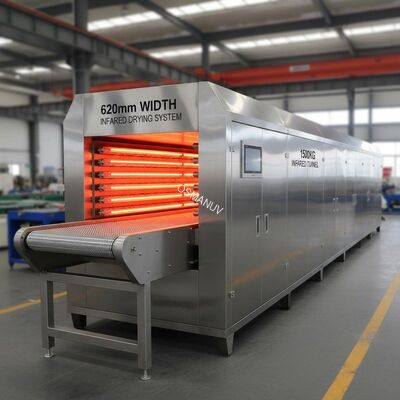

620mm Width Infrared Drying Systems , 1500kg Infrared Tunnel

620mm Width Infrared Drying Systems , 1500kg Infrared Tunnel
620mm Width Infrared Drying Systems, 1500kg Infrared Tunnel 620mm Width Infrared Drying Systems, 8KW Infrared Tunnel 10m heating leveling machine Product Name Infrared high temperature oven Model OSM-IR-620 Specifications 3000mm x 980mm x 1450mm Material The outer shell of the heating zone is made ...
Place of Origin:China
Brand Name:Osmanuv
Certification:ISO9001
Model Number:OSM-GWUV-620
Minimum Order Quantity:1 set
Price:Negotiable
Product Custom Attributes
Highlight

620mm Infrared Drying Systems

,

1500kg Infrared Drying Systems

,

620mm Infrared Tunnel

Warranty:
1 Year
Color:
Computer White
Product Name:
Infrared High Temperature Oven
Size:
3000mm X 980mm X 1450mm
Weight:
1500kg
Power(w):
8 Kw
Product Description
620mm Width Infrared Drying Systems, 1500kg Infrared Tunnel
620mm Width Infrared Drying Systems, 8KW Infrared Tunnel
10m heating leveling machine
Product Name Infrared high temperature oven
Model OSM-IR-620
Specifications 3000mm x 980mm x 1450mm
Material The outer shell of the heating zone is made of A3 board, with insulation cotton in the middle.
Lamp Adopts Taiwanese quartz heating tube with good heating effect.
Effective Leveling Width 620mm

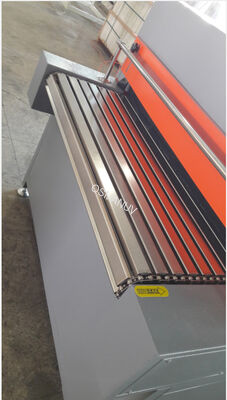

Conveyor Belt Adopt chain stainless steel string rod type.
Transmission System The transmission motor adopts Taiwan TWT gear reducer.
Control System Adopt Taiwan Delta frequency converter, the speed can be adjusted 5-20 meters per minute, and there is a speed digital display.
Control System BKC thermostat is used to control the temperature required for work, temperature: normal temperature -100℃ adjustable.
Electrical Part BKC thermostat, CHNT contactor, Taiwan Delta inverter, switch adopts Japanese Izumi switch, etc. All imported electrical appliances that meet international standards.
Safety System Over-temperature preventer, motor overload protection, control circuit insurance, emergency stop switch, etc. All electrical appliances conform to the first-class products of international standards.

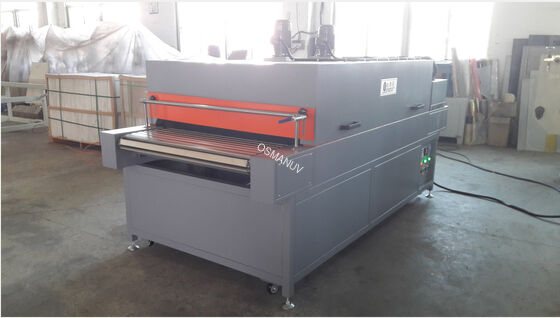

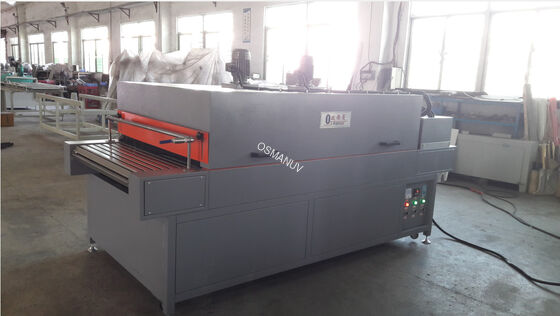

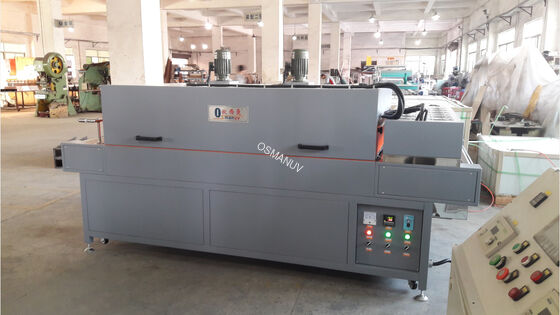

620mm Width Infrared Drying System - Front View 620mm Width Infrared Drying System - Side View
Frequently Asked Questions
Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
