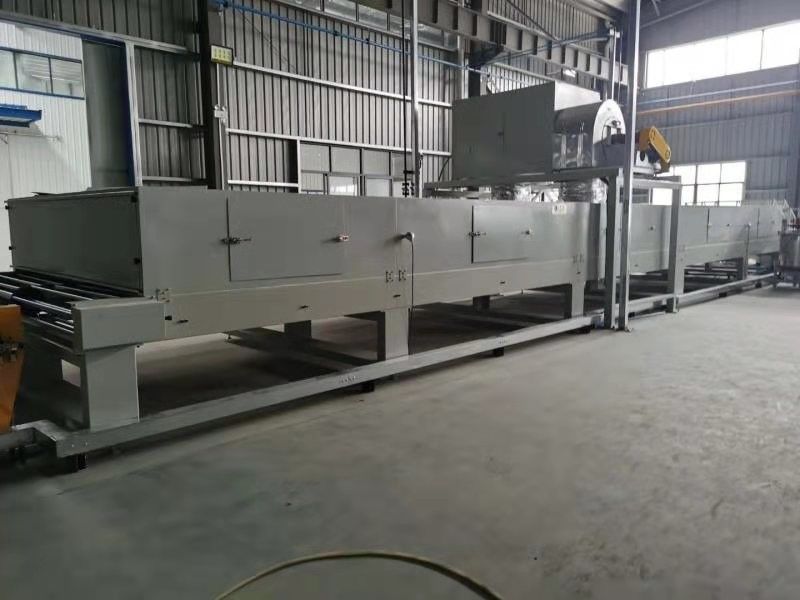

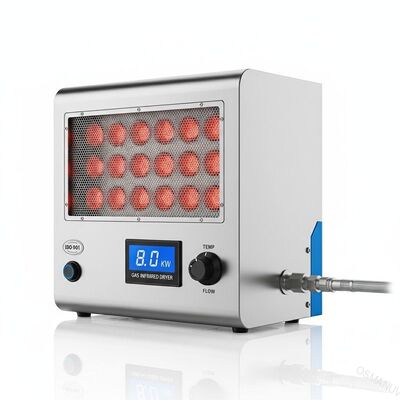

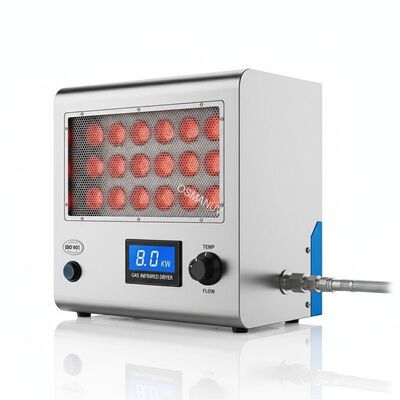

ISO9001 8KW Natural Gas Infrared Drying Machine
ISO9001 Infrared Drying Machine
,8KW Infrared Drying Machine
| Product Name | Natural Gas Infrared Drying Machine |
|---|---|
| Model | OSM-HD-1320T |
| Power | 8KW |
| Mechanical Size | 15 meters long × 1650mm wide × 2800mm high (length can be customized) |
| Effective Network Width | 1320mm |
| Burner | Original Riyalu burner; One set of 100,000 kcal |
| Thermostat | OMRON intelligent thermostat; Three groups |
| Humidity | 50±10℃ |
| Temperature Range | Normal temperature ~90℃ |
| Transmission Speed (Linear Speed) | 5-20m/min |
| Working Height | 850mm-900mm (belt height from ground), roller height equipped with position display |
- Parallel structure with independent air supply, moisture exhaust, and waste heat secondary backflow function

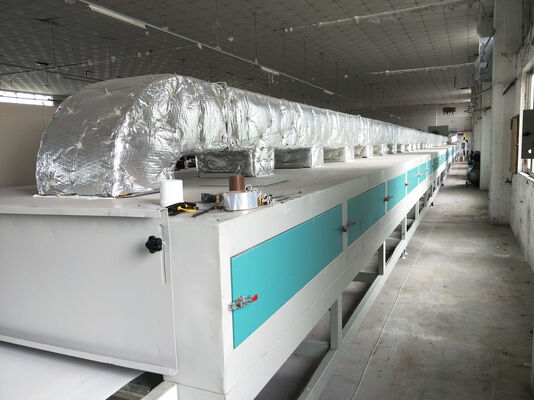

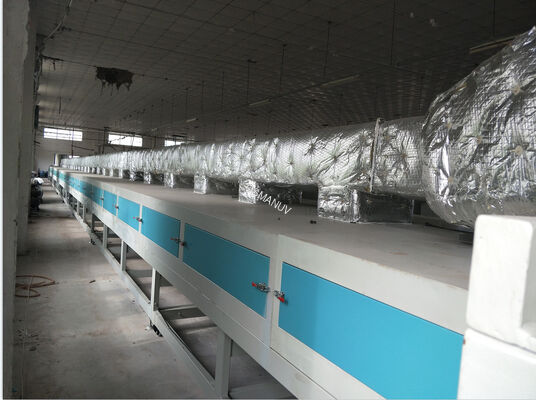

- Air supply: Hot air from main pipe is sent to each section of drying area through air supply fan
- Reflux: Residual heat energy is reused through secondary reflux pipe to heater to reduce energy consumption
- Equipped with combustion chamber
- Heating circulation system with temperature regulating device control
- Conveying system with roller transmission
- Control electrical components: Chintai/Deli Xi with Taiwan Delta frequency converter
- High temperature heating line fixed connected with steel pipe to prevent plate inclination
- Rapid heating: 50°C in 5 minutes (summer), 70°C in 10 minutes (winter), maximum 100°C
- Axial fan added in middle for air circulation, two sets every 2 meters, staggered installation
- Electrical parts: BKC thermostat, CHNT contactor, Taiwan Delta frequency converter, Japanese and Izumi switches
-
