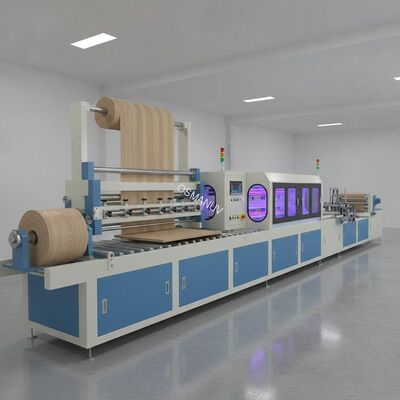

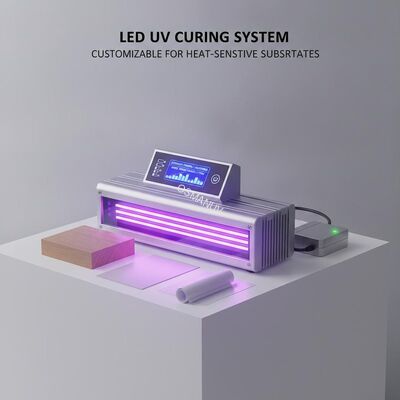

LED UV Curing System with Adjustable Intensity Profiles – Customizable for Heat-Sensitive Substrates (Wood/Plastic/Film)

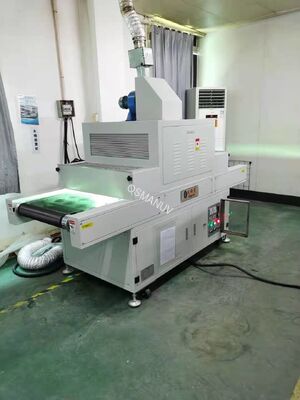

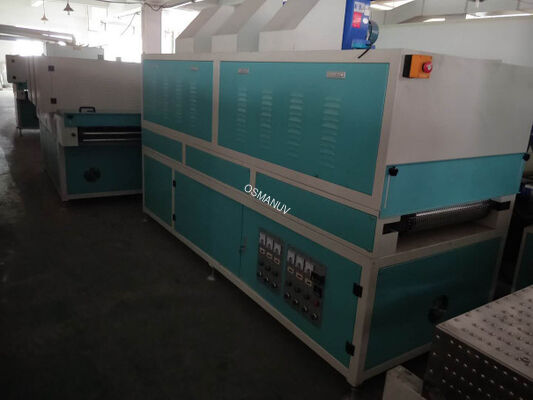

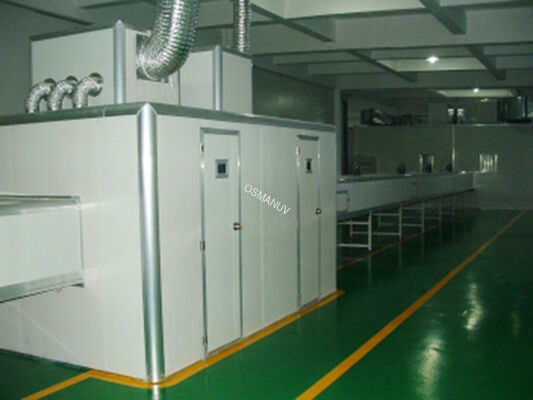

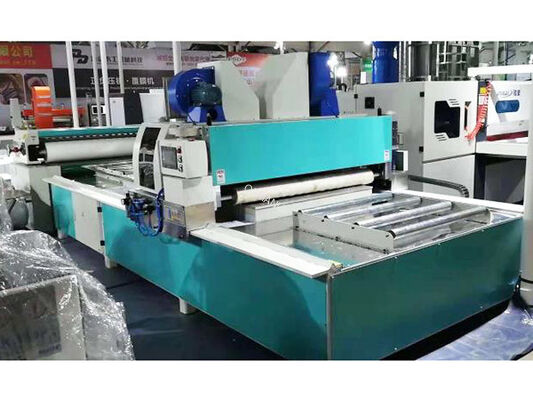

This customizable UV curing machine utilizes ultraviolet (UV) light to initiate photopolymerization, instantly curing UV-curable inks, coatings, and adhesives. Available in conveyor tunnel, LED cold-source, and spot/flood configurations.

The system is fully customizable in conveyor width, lamp type and number, wavelength, and automation level. UV curing offers significant advantages over thermal drying: faster cure speeds, lower energy consumption, minimal floor space (5-10 feet vs. 100-200 feet for thermal ovens), and environmental friendliness (typically 100% solids, no VOC emissions).

Working principle: UV light activates photoinitiators in the coating/adhesive, generating free radicals that trigger polymerization, converting liquid materials to solid state in seconds.

• Printing industry: Screen printing, offset printing, flexo printing - ink/coating curing on paper, film, and packaging
• Wood finishing: Clear coats, varnishes on MDF, furniture, flooring - LED version ideal for heat-sensitive pine
• Electronics manufacturing: PCB UV ink curing, small component UV adhesive bonding
• Automotive: Body paint curing, scratch repair, wheel coating
• Medical devices: UV adhesive bonding of catheters, syringes, sensors
• Optics: Lens bonding, fiber optic cable securing, optical element assembly
• 3D printing post-processing: Post-curing of 3D printed parts
• Automated assembly: Integration with robotic arms for inline spot curing

This UV curing system is highly customizable to meet your specific production requirements:

• Curing width: Customizable from 6″ to 72″ (152mm to 1830mm)
• Lamp type: Mercury arc / Metal halide / LED - customizable per chemistry and substrate
• Wavelength: 365nm, 385nm, 405nm - customizable based on photoinitiator absorption spectrum
• Lamp configuration: 1, 2, or 3 lamps - customizable for different speeds and coatings
• Power output: 100W - 600W per lamp, infinitely variable control
• Cooling method: Forced air / Water-cooled - customizable for ambient conditions
• Conveyor belt: Teflon-coated fiberglass / Stainless steel mesh / Roller chain
• Control system: Manual / PLC with HMI / Remote monitoring via Ethernet (IoT-ready)
• Automation integration: Robotic arm mounting, press speed tracking, automatic power stepping
• Additional modules: IR pre-heating, dual-side curing (top+bottom), anti-static system

• Instant curing: UV curing happens in seconds - significantly faster than thermal drying
• Energy efficient: Consumes less energy than thermal ovens; LED version even more efficient
• Space-saving: Compact footprint - typically 5-10 feet vs. 100-200 feet for thermal ovens
• Environmentally friendly: 100% solids formulations - no VOC emissions, no solvent recovery needed
• High peak irradiance: Elliptical reflector delivers up to 20% higher UV intensity
• Heat management: Advanced cooling prevents substrate deformation (LED models emit no IR)
• Precise control: PLC with recipe management, automatic power stepping to match line speed
• Quick-change lamp cassettes: Minimizes downtime for lamp replacement
• Low maintenance: LED systems offer >20,000 hours lamp life, no warm-up time
• Safety features: UV interlock, emergency stop, lamp hour indicator

• Free process consultation - send us your substrate and coating for curing trials
• Custom layout design for your production floor
• On-site installation and commissioning (customizable support packages)
• Operator training program included
• Remote troubleshooting via video call, Ethernet diagnostics, or IoT monitoring
• 12-month warranty on mechanical components (consumables: lamps excluded)
• Spare parts availability from regional warehouses
• Lamp reconditioning and reflector cleaning services
• Lifetime technical support via phone, email, or chat

Packing: Anti-rust film + reinforced plywood case for main body and control cabinet; foam padding for fragile components (lamps, control panel)

Standard model lead time: 15-25 days after order confirmation

Custom configuration lead time: 30-50 days (longer for custom widths or multi-lamp configurations)

Shipping: FOB Shanghai / CIF by sea, air, or rail

Customizable: Export crating, custom labeling, destination port documentation
