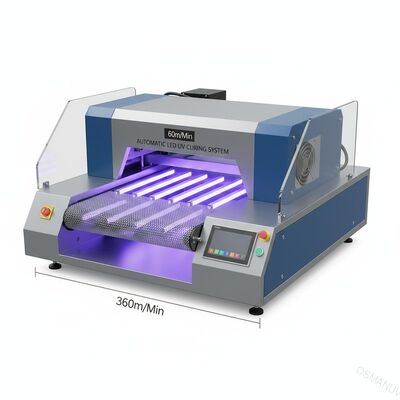

• 60m/Min Automatic Led UV Curing Machine 360mm Conveyor Mesh Width
60m/Min Automatic Led UV Curing Machine 360mm Conveyor Mesh Width

60m/Min Automatic Led UV Curing Machine 360mm Conveyor Mesh Width

Product Details:

Place of Origin: China
Brand Name: Osmanuv
Certification: ISO9001
Model Number: OSM-UV-4803TC

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 30 work days
Payment Terms: T/T, Western Union
Get Best Price Contact Now

Detail Information

Product Name: Uv Curing System Warranty: 1 Year
Automatic Grade: Automatic Speed: 0-60m/min
Height Of Feed Port: 10-250 - Mm Is Adjustable Cooling Method: Forced Air Cooling
Conveyor Mesh Width: 360mm
High Light:

60m/Min uv led machine


60m/Min UV Curing Machine


360mm UV Curing Machine

Product Description

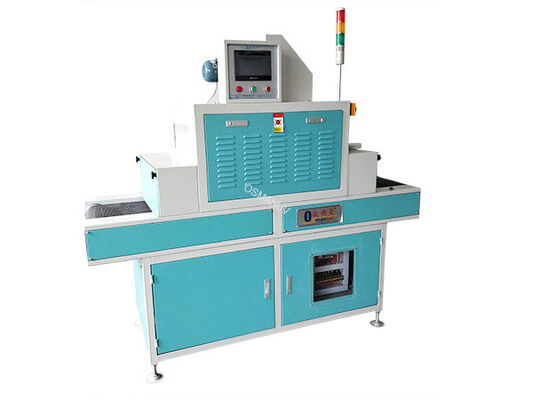

60m/Min Automatic Led UV Curing Machine 360mm Conveyor Mesh Width



 1 Model: OSM-UV-4803T
  2 Application: curing of ink and varnish on the surface of labels and packaging materials; Suitable for scientific research, enterprise unit laboratory product development, testing, etc.
  3 Specifications: 2350mm long ×700mm wide × 1650mm high. (Subject to actual size)



Product name:

UV curing machine.
  6 Material:

The shell is made of 1.5mm cold-rolled plate by bending and welding, and the shell is painted, wear-resistant and corrosion-resistant, and the color is computer white.

  7 Lamp

A. The first group of feed inlet is a wrinkle lamp light box, equipped with 40W 254nm, L460MM, 4 wrinkle lamps;

B. The two independent light boxes at the back are two sets of UV lamp systems; UV lamps: use OSMANUV UV tube 5KW 2 mercury lamps.

  8 Installation: Install on the top of the UV furnace to irradiate downwards.
  9   The height of the UV lamp: 50-200mm from the mesh belt.
  10 The illumination angle of the lampshade: The vertical mesh belt can be adjusted at 38 degrees left and right.
  11   the vertical mesh belt can be adjusted at 38 degrees left and right.
  12 UV power supply: equipped with 5KW UV inorganic adjustable electronic power supply, the quantity is 2 sets, each is independently controlled.
  13 Wrinkle lamp equipped with 40W 254 nm, L 460MM wrinkle lamp, the number is 4, each independently controlled.
  14   The entrance and exit are equipped with 150mm shading steps.
  15   Width of conveying net: 380mm.
  16 Width of conveying net:


 17 Conveyor belt: conveyor belt is used, which has the characteristics of UV resistance, fast heat dissipation, and easy cleaning.
  18 Features: tape is convenient for the use of pallets and the sticking of molds.
  19 Speed ​​control system Degree speed 0-36 m/min adjustable, controlled by Taiwan Delta inverter, stepless speed regulation
 20 UV lampshade using width 100MM, length 480MM, 4 groups of professional reflective materials (German alanod reflective sheet) to reflect UV
The light sheet greatly improves the utilization rate of ultraviolet light (more than 38%).
 21 Cooling system: use Taiwanese fans to force air cooling, with good heat dissipation effect; ensure that the temperature in the furnace is below 60 degrees.

Control system:


a. Each lamp has an independent control system, a total of 2 sets of UV lamp control circuits, and 4 wrinkle lamp control systems;


b. Each lamp tube is equipped with an LCD usage time recorder, which records the service life of the lamp tube and can be reset to zero.

 23 Electrical parts: OMRON relays, Delta inverters, CHNT contactors, CKC brand for delay, JapaneseProduced by Izumi Corporation.
 24 Safety devices: leakage circuit breaker, over-temperature prevention, transformer motor overload protection, control circuit fuse... all comply with international safetyFull standard.
 25 Power






Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
