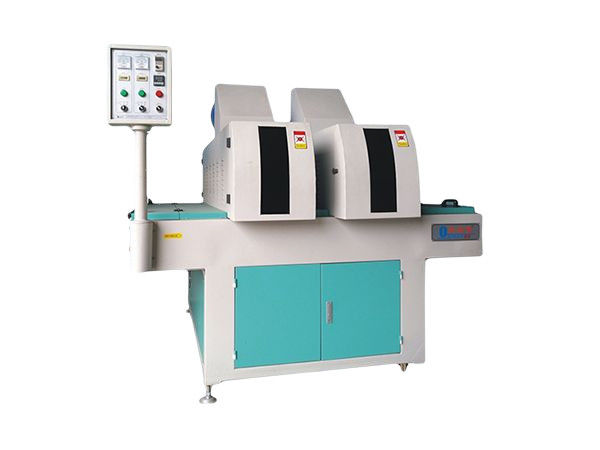

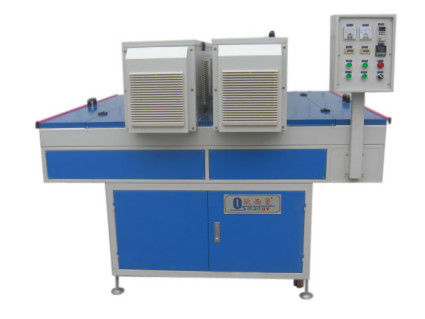

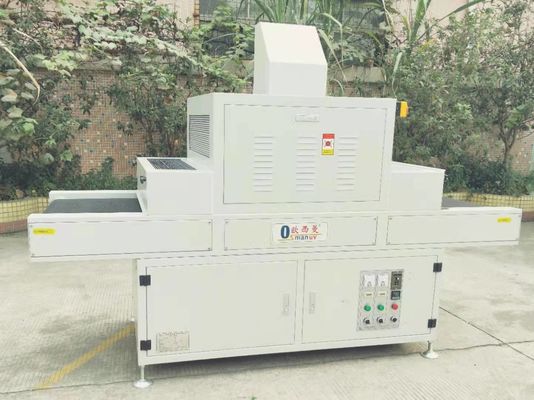

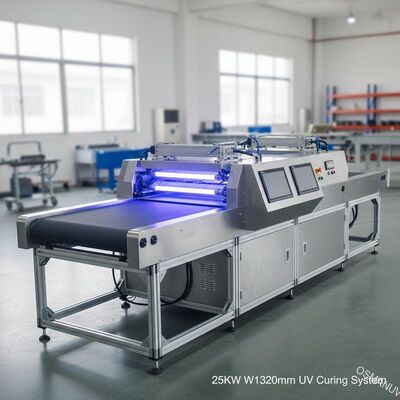

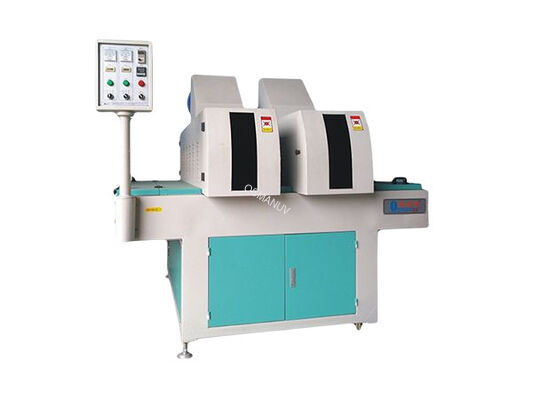

25KW W1320mm Two Lamps Uv Light Curing Machine Conveyor Systems

25KW W1320mm Two Lamps Uv Light Curing Machine Conveyor Systems

Product Details:

Place of Origin: CHINA
Brand Name: Osmanuv
Certification: ISO9001 And CE
Model Number: osm-uv-1320Ⅱ

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: 35-45 Working days
Payment Terms: T/T, Western Union
Supply Ability: According to customer's demand
Get Best Price Contact Now

Detail Information

Product Name: Two-lamps UV Dryer Size: L:1900mm×W:2230mm×H:1410mm
Color: Computer White / Green Voltage: 50HZ
Power: 25KW Feature: This Machina Adpots UV Light.so That UV Coating Ink Fast Curing.
Highlight:

25KW uv light curing machine

,

W1320mm uv light curing machine

,

25KW uv conveyor systems

Product Description

25KW W1320mm Two Lamps Uv Light Curing Machine Conveyor Systems

Description:

This machine can cure UV coatings in a short time through UV energy, which is highly efficient, energy-saving andenvironmentally friendly. Mechanization can greatly improve production efficiency, and is not affected by its externalconditions. It is widely used for drying and curing all kinds of wood, aluminum, acrylic, calcium silicate, PVC, andhardware accessories.



  1

Mechanical dimensions:

1800mm long x 2230mm wide x 1680mm high.

(According to actual size)

  2

Effective processing size:

Effective width: 1320mm

  3

Lamps:

2 imported lamps (synthetic mercury), suitable for ultraviolet light curing of various products. 5. Speed: 5-20m/min.

  4

Power supply voltage:

380V 50HZ, three-phase five-wire system.

  5

Material:

The outer shell is made of cold-rolled plate with a thickness of 1.5mm. The surface is treated with liquid paint, which iswear-resistant and corrosion-resistant. The UV section is insulated with double-layer steel plates, which can effectivelyreduce the cooling effect.



  6

Reflector:

It is made of aluminum and is integrally formed with alanod imported reflective lenses inside, which can increase the UV reflection efficiency by 38%.

  7

Transmission system:



stainless steel string rod transmission, with high temperature resistance, ultraviolet resistance and other characteristics. Make the machine run more smoothly. It adopts 1HP Taiwan Wanxin decelerating motor and Delta inverter control, and the speed can be adjusted from 1 to 15 meters per minute.

  8

Cooling system:

Forced air cooling, the chassis is split design, and the light box adopts independent lamp group cooling channel, which has sufficient heat dissipation and good effect.

  9

Light source control system:

a. Each group of lamps can be controlled independently, and is equipped with strong and weak light, the light intensity is 70%, 100% dimmable.

b. The lamp is equipped with an LCD usage time recorder, which records the service life of the lamp and can be reset to zero.

 10

Electrical part:

Use OMRON relay, CHNT or Tianzheng contactor, Delta inverter, Taiwan Wanxin motor, delay time adopts CKC brand, switch adopts Japanese Izumi company production, all comply with CE standards.

  11

Safety devices:

leakage circuit breaker, over-temperature protection, transformer, motor overload protection, control circuit fuse... all comply with international safety standards.

  12

Conveying method:

From left to right.

  13

Working height:

850-900mm adjustable, (the height of the ground from the conveyor belt).

  14









FAQ


Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
