Product Details:

Place of Origin: China
Brand Name: Osmanuv
Certification: ISO9001
Model Number: osm-uv-1320Ⅳ

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 30 work days
Payment Terms: T/T, Western Union
Get Best Price Contact Now

Detail Information

Product Name: Four-lamps UV Dryer Speed: 5-20m/ Min
Supply Voltage: 380V 50HZ Size: 2500 Mm X 2130 Mm X 1410 Mm
Feature: This Machine Can Make UV Coating Solidify In A Short Time Through UV Ultraviolet Light Energy, High Efficiency, Energy Saving And Environmental Protection Heat Dissipation System: Forced Air Cooling, Integrated Design Of The Light Box, Full Heat Dissipation, Good Effect
High Light:

380V uv curing systems for printing


850mm uv curing systems for printing


850mm uv curing conveyor

Product Description

380V 850mm Height Uv Curing Systems For Printing Forced Air Cooling

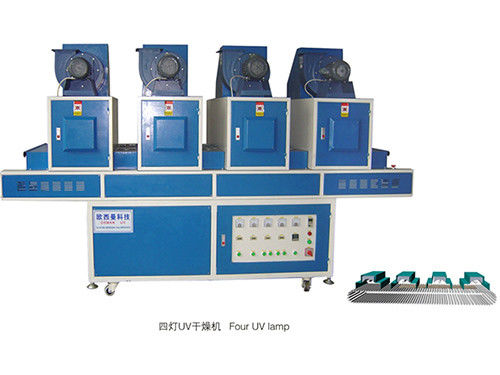

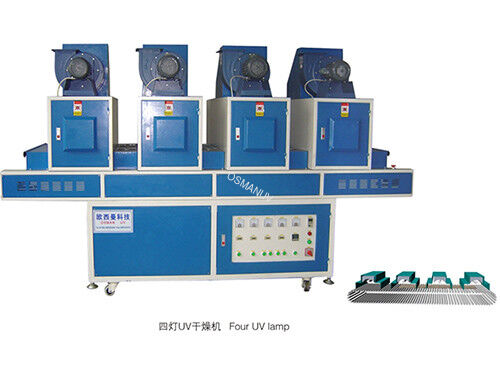

 1 Product name: UV light curing machine.


 3 Features: This machine can cure UV coatings in a short time through UV energy, which is highly efficient, energy-saving and environmentally friendly. Mechanization can greatly improve production efficiency, and is not affected by its external conditions. It is widely used for drying and curing all kinds of wood, aluminum, acrylic, calcium silicate, PVC, and hardware accessories.
 4 Mechanical dimensions

2500mm long x 2130mm wide x 1410mm high.

(According to actual size)

 5 Effective processing size: Effective width: 1200mm, thickness: 05-10mm, length (shortest): 300mm.
 6 Power supply voltage: 380V 50HZ, three-phase four-wire system.
 7 Material The outer shell is made of cold-rolled plate with a thickness of 2mm. The surface is treated with liquid paint, which is wear-resistant and corrosion-resistant. The UV section is insulated with double-layer steel plates, which can effectively reduce the cooling effect.
 8 Lamp

4pcs British PRIMARC 23.4KW 1400mm mercury lamp.

The height and angle of the lamp tube in the UV furnace can be adjusted, which is suitable for ultraviolet light curing of various products.

 9 Reflector: It is made of aluminum and is integrally formed with alanod imported reflective lenses inside, which can increase the UV reflection efficiency by 38%.
 10 Transmission system:

adopts mesh belt, which has the characteristics of high temperature resistance and ultraviolet resistance. Make the machine run more smoothly. Adopt RV reducer, Delta frequency converter to control the speed, and the panel is equipped with potentiometer speed control knob.

 11   The speed is adjustable from 5-20 meters per minute.
 12 Heat dissipation system: forced air cooling, integrated design of light box, sufficient heat dissipation and good effect.
 13 Light source control system

a. Each group of lamps can be controlled independently, and is equipped with strong and weak light, the light intensity is 70%, 100% dimmable.


b. The lamp is equipped with an LCD usage time recorder, which records the service life of the lamp and can be reset to zero.


C. Each lamp tube is equipped with a white fuse.

 14 Electrical parts: UV transformer, capacitor independent control electric box, OMRON relay, Taian contactor, CKC brand for time delay, and Japanese Izumi company production switch, all comply with CE standards.
 15 Safety devices: leakage circuit breakers, over-temperature protection, transformer motor overload protection, control circuit fuses... all comply with international safety standards.
 16 Working height: 850-900mm adjustable (the height of the conveyor belt from the ground).
 17 Conveying direction: from right to left.
 18 Warranty: One year for the whole machine, half a year for the electrical part, and 800-1000 hours of UV lamp warranty.




Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
