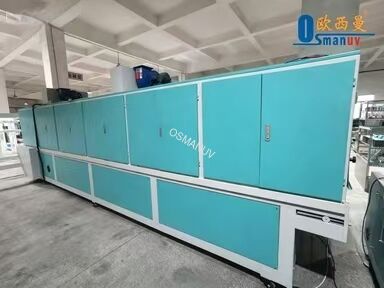

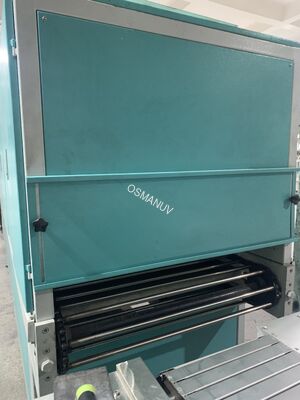

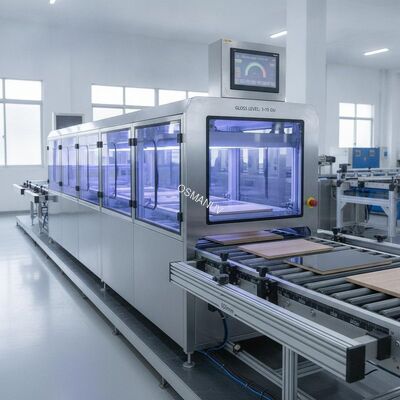

Continuous 172nm Excimer Soft-Touch Coating Line for Wood & Panels – Customizable Width (600-2100mm) & Gloss Level (1-10 GU)

This customizable excimer coating line utilizes advanced 172nm excimer UV technology to produce ultra-matte, soft-touch ("skin-feel") surfaces on wood-based panels, furniture, and decorative materials. Available in continuous flat panel, 3D shaped object, and water-based eco-friendly configurations.

The system is fully customizable in working width, coating method, lamp configuration, gloss level, and automation level. The excimer technology creates a micro-wrinkled surface through rapid surface photopolymerization, achieving gloss levels as low as 0.5-5 GU without chemical matting agents, resulting in an elegant, velvety tactile sensation often described as "baby skin" smoothness.

Working Principle: UV-curable lacquer is applied to the substrate via roller or spray, then passes through a nitrogen-inerted chamber where 172nm excimer lamps trigger surface polymerization. This creates microscopic surface folds that diffuse light (super-matte effect) without affecting deeper coating layers, which are subsequently fully cured by conventional UV lamps. The nitrogen environment is essential as oxygen would inhibit the curing process.

• High-end furniture & cabinetry: Luxury kitchen cabinets, wardrobes, furniture panels - ultra-matte skin-feel finish
• Interior decorative panels: Wall panels, headboards, acoustic panels - anti-fingerprint, anti-scratch surfaces
• Commercial spaces: Hotel room panels, retail displays - durable, aesthetic finishes
• Children's furniture: Safe, low-VOC, soft-touch surfaces
• Bathroom vanities: Moisture-resistant, easy-clean properties
• Automotive interiors: Dashboard trim, door panels - scratch-resistant, velvety feel
• Consumer electronics: Phone cases, keyboards, mouse - anti-fingerprint, skin-feel coating

• Super-matte finish: Achieves 0.5-5 GU gloss without matting agents - true anti-glare, elegant aesthetic
• Skin-feel tactile quality: Velvety, "baby skin" soft-touch surface that is pleasant to the touch
• Anti-fingerprint & self-healing: Micro-wrinkled surface resists fingerprints; light scratches can "heal" (resilient)
• Excellent durability: Scratch-resistant, stain-resistant (coffee, water), wear-resistant
• Eco-friendly: Zero solvent emissions; water-based options; low VOC; reduced photoinitiator use with inert curing
• No orange peel: Perfect flatness and uniform surface without orange peel effect
• Low heat input: 172nm excimer is a cold light source - ideal for heat-sensitive substrates
• Nitrogen optimized: Reduced consumption through recycling or optimized flow; optional no-nitrogen operation
• Fast curing: Instant surface polymerization reduces production time
• Resistance to yellowing: Excimer layer contains no photoinitiators, preventing yellowing under sunlight

This excimer coating line is highly customizable to meet your specific production requirements:

• Working width: From 600mm to 2,100mm - fully customizable
• Coating method: Roller coating, curtain coating, or spray coating (oscillating/robotic) - customizable
• Excimer lamp layout: Number of lamps, arrangement - customizable for different speeds and gloss levels
• Gloss level: From 0.5 to 10 GU - customizable via process parameter adjustment
• Coating type: UV-curable, water-based UV, or PU - customizable
• Nitrogen system: With or without nitrogen purging - customizable (selectable option)
• Automation level: Semi-automatic to fully automatic with MES/ERP integration
• Panel thickness: Customizable range up to 80mm for 3D products
• Lamp wavelength: 172nm (standard), 186nm, 222nm, 254nm, or 308nm - customizable
• Quality inspection: Optional camera-based automatic inspection
• Integration: Customizable connection with upstream sanding/printing machines

• Free process consultation and sample coating trials
• Custom layout design for your production floor
• On-site installation and commissioning (customizable support packages)
• Operator training program included
• Remote troubleshooting via video call or IoT monitoring
• 18-month warranty (extendable)
• Spare parts availability from regional warehouses
• Preventive maintenance service contracts available
• Lifetime technical support via phone, email, or chat

• Packing: Anti-rust film + reinforced wooden case for main body and control cabinet; foam padding for sensitive components (lamps, control panel); vacuum packing for electronic parts
• Standard model lead time: 30-40 days after order confirmation
• Custom configuration lead time: 30-60 days (longer for custom widths or 3D configurations)
• Shipping: FOB Shanghai / CIF by sea, air, or rail
• Customizable: Export crating, custom labeling, destination port documentation
