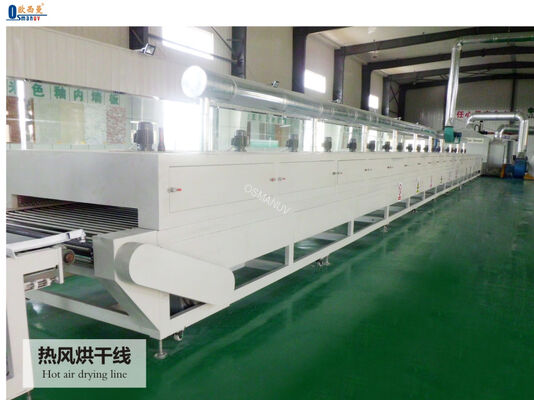

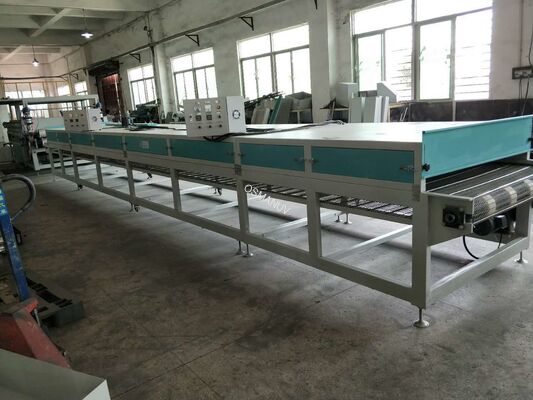

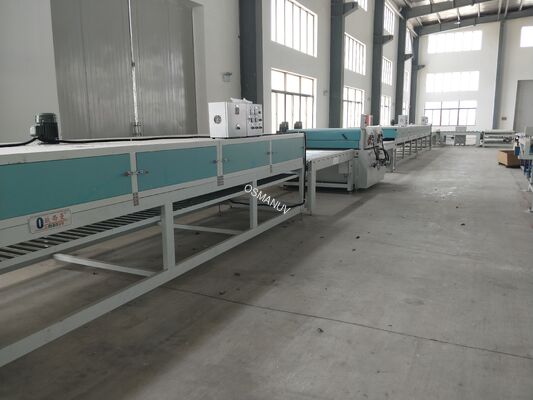

Multi-Zone Customizable Infrared Drying Machine | Detailed Technical Parameters for Coating & Ink Curing Production Line
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | OSMANUV |
| Certification: | ISO9001 |
| Model Number: | Specification |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | WOOD PACKAGING |
| Delivery Time: | 30-45 days |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Length: | 2500MM | Roller Type: | Steel Wire |
|---|---|---|---|
| Function: | Plastic Cup Quick Dryer | Timer Setting: | 1-60 Minutes |
| Heating Source: | Electricity | Effective Leveling Width: | 1320 |
| Condition: | New | Drying Speed: | Adjustable (e.g., 0.5m/min - 5m/min) |
Product Description
As middle-stage curing equipment in production line composition, the infrared dryer is installed between surface treatment station and finished product inspection station to complete continuous online drying. Users can increase or reduce preheating/cooling sections on the production line, and the dryer's internal heating layout is fully customizable.

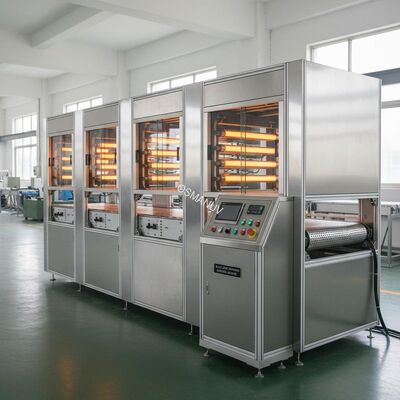

Multi-temperature zone customizable infrared dryer is developed for precision drying of sensitive raw materials, with each heating zone featuring independent PID constant temperature control to prevent material deformation. Body shell material, internal thermal insulation layer, and conveyor mode can be customized based on customers' raw material characteristics and environmental conditions.
| Parameter Item | Standard Data | Customized Selection |
|---|---|---|
| Heating wavelength | Medium infrared 2-10μm | Customized short/long infrared wavelength |
| Conveyor material | Stainless steel mesh belt | Customized silicone belt / Teflon belt |
| Internal insulation | High-density aluminum silicate cotton | Customized high temperature resistant insulation |
| Noise value | ≤72dB | Customized mute silent configuration |
| Cooling section | Optional single cooling zone | Customized multi-stage forced air cooling |
Applied in 3C electronic component drying, ceramic glaze curing, textile printing drying, glass coating solidification, and small parts continuous processing production lines.
- Customized closed dustproof tunnel
- Customized independent dehumidifier
- Customized mobile base with walking wheel
- Customized explosion-proof structure for flammable solvent workshop
- Customized touch screen multilingual operation interface
- Independent temperature control for each zone, temperature error ≤±2℃
- Energy-saving reflective inner plate, improves heat utilization rate by over 30%
- Automatic conveyor deviation correction device, prevents belt skew
- Special anti-corrosion internal lining available via customized production
- Free pre-order technical scheme evaluation
- Online video installation guidance
- Regular after-sales follow-up inspection
- Global spare parts stock supply
- Customized long-term maintenance contract for long-term cooperative clients
Waterproof wrapping + shockproof separate packaging for precision parts; host packed with export wooden case. Support customized outer package logo printing and designated destination port logistics arrangement.
