High-Intensity UV-C Disinfection Machine for Food Packaging – Adjustable Height & Customizable Belt Width

High-Intensity UV-C Disinfection Machine for Food Packaging – Adjustable Height & Customizable Belt Width
High-Intensity UV-C Disinfection Machine for Food Packaging – Adjustable Height & Customizable Belt Width
High-Intensity UV-C Disinfection Machine for Food Packaging – Adjustable Height & Customizable Belt Width High-Intensity UV-C Disinfection Machine for Food Packaging – Adjustable Height & Customizable Belt Width High-Intensity UV-C Disinfection Machine for Food Packaging – Adjustable Height & Customizable Belt Width High-Intensity UV-C Disinfection Machine for Food Packaging – Adjustable Height & Customizable Belt Width High-Intensity UV-C Disinfection Machine for Food Packaging – Adjustable Height & Customizable Belt Width

Large Image :  High-Intensity UV-C Disinfection Machine for Food Packaging – Adjustable Height & Customizable Belt Width

Product Details:
Place of Origin: CHINA
Brand Name: OSMANUV
Certification: ISO9001
Model Number: Specification
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: WOOD PACKAGING
Delivery Time: 30-45 days
Payment Terms: T/T
Supply Ability: Negotiation
Contact Now

High-Intensity UV-C Disinfection Machine for Food Packaging – Adjustable Height & Customizable Belt Width

Description
Highlight:

UV-C disinfection machine for food packaging

,

adjustable height UV-C disinfection machine

,

customizable belt width disinfection machine

High-Intensity UV-C Disinfection Machine for Food Packaging – Adjustable Height & Customizable Belt Width
Product Overview

This customizable UV sterilizer uses germicidal UV-C (254 nm) radiation to destroy bacteria, viruses, and molds on product surfaces without heat or chemicals. Available in tunnel, flatbed, and rotary configurations. The system is fully customizable in belt width, number of lamps, lamp arrangement, and exposure length. Ideal for food packaging, medical devices, cosmetic jars, and laboratory tools. PLC control allows customizable belt speed and automatic lamp dimming based on product height.

Technical Specifications
Parameter Tunnel UV Sterilizer Flatbed UV-C Machine Rotary 360° UV System
Belt width (customizable) 300-1500 mm 200-1000 mm 200-800 mm
Number of UV lamps (customizable) 2-20 pcs 1-8 pcs 4-16 pcs (360° array)
Lamp type Amalgam / mercury Mercury / low-pressure Amalgam / high-output
UV dose (customizable) 20-200 mJ/cm² 15-100 mJ/cm² 30-250 mJ/cm²
Conveyor speed (customizable) 0.5-15 m/min 1-20 m/min 0.2-10 m/min
Product height clearance (customizable) 50-400 mm 20-150 mm Up to 300 mm (rotary chamber)
Cooling method Forced air + optional water cooling Forced air Forced air + internal airflow
Safety certification CE, FDA compliance CE CE, Class I laser safety
Applications
  • Food industry: Dairy cups, meat trays, bread bags, fruit packaging
  • Beverage: Bottle caps, can lids, juice cartons
  • Medical & pharmaceutical: Syringes, Petri dishes, pill blister packs
  • Cosmetics: Cream jars, lipstick tubes, brush handles
  • Electronics: Keyboard covers, phone screen films

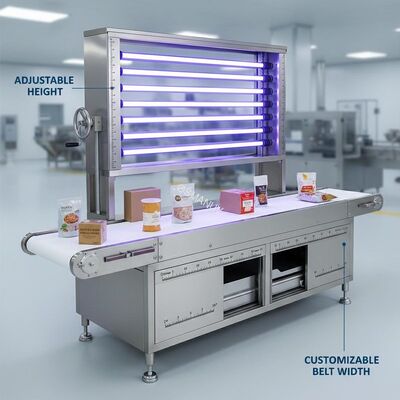

Customization Options

This UV sterilizer is highly customizable including:

  • Belt material (stainless steel mesh, PU, PTFE - customizable upon request)
  • Lamp quantity, arrangement (top-only, top+bottom, 360° rotary)
  • Tunnel length and irradiation zone length
  • Automatic lamp intensity adjustment based on product height sensor
  • HEPA filtration + UV combo for air/surface hybrid sterilization
  • Explosion-proof design for alcohol-packaging lines
  • Remote monitoring and data logging (IoT-ready)
Key Features
  • No heat, no chemicals, no residue
  • Instant on/off - no warm-up delay
  • Up to 99.99% microbial reduction (validated by third-party lab)
  • Quartz glass lamp sleeves for easy cleaning
  • Safety interlock: automatically shuts off if door opened
  • Low maintenance (lamps last 8,000-12,000 hours)
Support and Services
  • Free UV dose simulation report for your product
  • On-site installation and calibration (for orders ≥ 10 units)
  • Lamp replacement reminder service (via optional email alert)
  • 12-month lamp warranty + 24-month machine warranty
  • Online troubleshooting with video support
Packing and Shipping
  • Packing: Shock-absorbing EPE foam + sealed plywood case (with anti-static bag for control panel)
  • Shipping: FOB Shanghai / CIF by sea, air, or rail. Lead time: 10-25 days after customization confirmation.
Frequently Asked Questions
Q1: Can the UV sterilizer be customized for very tall bottles (over 300 mm)?
A: Yes, we can customize the chamber height up to 600 mm and add side UV lamps for full coverage.
Q2: Does UV-C damage plastic packaging?
A: No, UV-C only affects microorganisms. However, prolonged exposure may yellow some plastics - we can customize exposure time to prevent this.
Q3: How do I know the UV lamp is still effective?
A: Optional customizable UV intensity sensor provides real-time display and alerts when dose falls below setpoint.
