Heavy-Duty Folding Plate Turnover Machine for Plywood & MDF Lines – 180° Sheet Flipper with Customizable Arm Spacing

Heavy-Duty Folding Plate Turnover Machine for Plywood & MDF Lines – 180° Sheet Flipper with Customizable Arm Spacing
Heavy-Duty Folding Plate Turnover Machine for Plywood & MDF Lines – 180° Sheet Flipper with Customizable Arm Spacing
Heavy-Duty Folding Plate Turnover Machine for Plywood & MDF Lines – 180° Sheet Flipper with Customizable Arm Spacing Heavy-Duty Folding Plate Turnover Machine for Plywood & MDF Lines – 180° Sheet Flipper with Customizable Arm Spacing Heavy-Duty Folding Plate Turnover Machine for Plywood & MDF Lines – 180° Sheet Flipper with Customizable Arm Spacing Heavy-Duty Folding Plate Turnover Machine for Plywood & MDF Lines – 180° Sheet Flipper with Customizable Arm Spacing Heavy-Duty Folding Plate Turnover Machine for Plywood & MDF Lines – 180° Sheet Flipper with Customizable Arm Spacing Heavy-Duty Folding Plate Turnover Machine for Plywood & MDF Lines – 180° Sheet Flipper with Customizable Arm Spacing Heavy-Duty Folding Plate Turnover Machine for Plywood & MDF Lines – 180° Sheet Flipper with Customizable Arm Spacing

Large Image :  Heavy-Duty Folding Plate Turnover Machine for Plywood & MDF Lines – 180° Sheet Flipper with Customizable Arm Spacing

Product Details:
Place of Origin: CHINA
Brand Name: OSMANUV
Certification: ISO9001
Model Number: Specification
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: WOOD PACKAGING
Delivery Time: 30-45 days
Payment Terms: T/T
Supply Ability: Negotiation
Contact Now

Heavy-Duty Folding Plate Turnover Machine for Plywood & MDF Lines – 180° Sheet Flipper with Customizable Arm Spacing

Description
Drying Time: 0.2-1.2 H (Adjustable) Evaporation Capacity: 60-80kg/h
Capacity: 0.8-1kg/kw.h Dry Method: Natural Gas
Coating Speed: Adjustable,0.3-10meters/min Noiselevel: ≤75 DB
Steel Material: SUS 304 Steam Consumption: 225-600 Kg/h
Highlight:

heavy-duty plywood turnover machine

,

180° sheet flipper for MDF

,

customizable arm spacing flipper

Heavy-Duty Folding Plate Turnover Machine for Plywood & MDF Lines – 180° Sheet Flipper with Customizable Arm Spacing

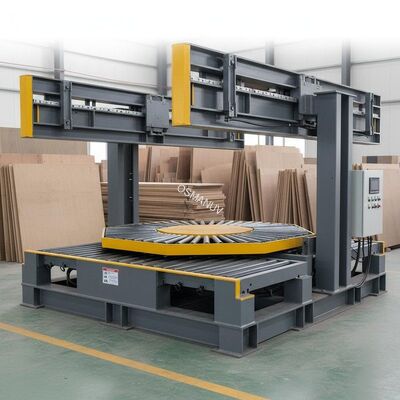

This folding turnover machine (also known as a plate flipper or sheet reverser) is designed to safely rotate panels, boards, metal sheets, or glass plates by 180° for double-side processing, inspection, or stacking. The folding arm structure minimizes space usage while maximizing throughput. The machine is fully customizable in terms of arm width, conveyor speed, turnover angle, and automation level to fit existing production lines.
Technical Parameters
Parameter Standard Value Customizable Range
Max. sheet/panel size 2500 × 1300 mm Customizable up to 4000 × 2000 mm
Min. sheet thickness 3 mm Customizable down to 1.5 mm
Max. load capacity 200 kg Up to 800 kg customizable
Turnover angle 180° 90°, 180°, or customizable angle
Turnover speed 12 - 20 cycles/min 5 - 30 cycles/min customizable
Conveyor roller spacing 150 mm Customizable (80 - 250 mm)
Control system PLC + 7″ HMI Delta / customizable brand
Power supply 380V / 50Hz (3-phase) 220V - 480V, 50/60Hz customizable
Air pressure requirement 0.6 MPa Customizable (0.4 - 0.8 MPa)
Applications
  • Woodworking industry: Plywood, MDF, OSB, particle board double-side laminating or sanding
  • Metal processing: Steel plate, aluminum sheet flipping for painting or inspection
  • Glass manufacturing: Glass plate turnover between washing and coating
  • Plastic sheet & composite panel production
  • Customizable for: battery plates, stone slabs, rubber sheets
Customization Options
All models support full customization:
  • Folding arm material (carbon steel painted / 304 stainless steel / aluminum)
  • Conveyor type (roller, belt, chain-driven)
  • Safety guard style and material
  • Integration with existing line (infeed/outfeed height customizable)
  • Special surface coating (anti-scratch, anti-static)
  • Remote control or IoT data logging
Key Features
  • Folding arm design - saves floor space vs. traditional rotary flipper
  • No-scratch turnover - soft contact surface optional
  • Bi-directional flipping (left or right discharge)
  • Automatic speed matching with upstream/downstream equipment
  • Emergency stop & overload protection standard
  • Touch screen control with fault diagnosis
Support and Services
  • 18-month standard warranty (extendable)
  • Remote video support via WhatsApp / Teams
  • Spare parts stocked for 7+ years
  • On-site commissioning and training (for orders ≥ 1 unit)
  • Customization engineering support included
Packing and Shipping
  • Packing: Reinforced plywood crate with anti-rust treatment
  • Conveyor sections wrapped in stretch film + moisture barrier
  • Shipping: FOB (Shanghai / Shenzhen) or CIF by sea / air / rail
  • Lead time: 15 - 40 days based on customization level
Frequently Asked Questions
Q: Can this folding turnover machine handle warped or uneven boards?
A: Yes. We can customize pneumatic arm pressure and roller spacing to stabilize curved boards.
Q: Is the machine safe for fragile sheets like glass or coated panels?
A: Yes. Optional soft rubber or felt contact surfaces are customizable to prevent scratching.
Q: Can it work without compressed air?
A: Yes. Fully electric (servo-driven) version is available - customizable upon request.
