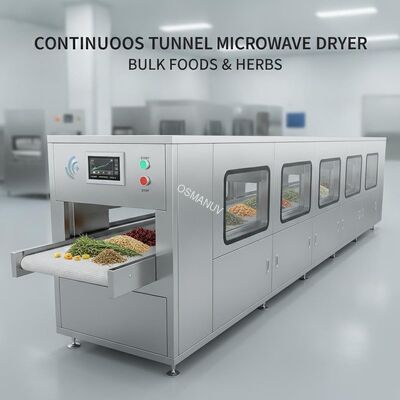

Continuous Tunnel Microwave Dryer for Bulk Foods & Herbs – Customizable Power (12-200kW) & Conveyor Speed

This customizable industrial microwave dryer uses microwave electromagnetic energy to volumetrically heat and dry materials, achieving rapid, uniform moisture removal. Available in continuous tunnel, vacuum low-temperature, and multi-layer industrial configurations.

Unlike conventional drying that relies on thermal conduction (which is slow for insulating materials), microwaves selectively interact with polar molecules (primarily water), generating heat within the entire volume of the material simultaneously. This enables drying times 30-90 minutes compared to 24-48 hours for freeze drying, and energy consumption of 1-1.5 kWh per kg of water removed—up to 90% less than traditional methods.

The system is fully customizable in microwave power, conveyor speed, drying zone configuration, and control logic. It is suitable for continuous 24/7 operation and can be integrated with upstream/downstream equipment to form a complete production line.

• Food industry: Drying fruits, vegetables, nuts, tea, herbs, spices, meat jerky, pet food
• Pharmaceutical: Drying pills, capsules, tablets, Chinese medicine extracts, healthcare products
• Chemical materials: Powders, granules, pigments, catalysts, rubber additives
• Wood & building materials: Wood sheets, lumber, MDF, water-based paint drying
• Agricultural products: Grains, beans, peanuts, chili, flowers
• Textile & tobacco: Yarn, cotton, tobacco leaf drying

This microwave dryer is highly customizable to meet your specific production requirements:

• Microwave power: From 3kW to 200kW+ - customizable based on throughput and material moisture content
• Conveyor width & length: Customizable to match your product dimensions and facility layout
• Belt material: Teflon conveyor belt (food-grade) or stainless steel mesh - customizable
• Number of drying zones: Modular sections can be added or removed - customizable
• Temperature & humidity control: Precise settings via PLC with infrared thermometry - customizable
• Cooling system: Air-cooled or water-cooled magnetrons - customizable
• Feeding system: Manual, vibratory feeder, or conveyor-fed - customizable
• Control interface: Standard PLC or remote IoT monitoring - customizable
• Voltage: 220V/380V/415V - customizable to local electrical standards
• Material finish: Food-grade stainless steel (SUS304/316L) or industrial-grade - customizable

• Volumetric heating: Microwaves heat the entire material volume simultaneously, eliminating thermal gradients and "wet core" issues
• Fast drying: Cycle times typically 30-90 minutes - dramatically faster than conventional drying
• Energy efficient: Consumes 1-1.5 kWh per kg of water removed - up to 90% less than freeze drying
• Uniform drying: Achieves consistent moisture content across the product
• Low-temperature operation: Vacuum models preserve nutrients, color, and flavor of heat-sensitive materials
• Dual function: Simultaneous drying and sterilization (biological and thermal effects)
• PLC auto-control: Power stepless adjustment, conveyor speed variable, temperature/humidity intelligent control
• Modular design: Easy to expand or reconfigure as production needs evolve
• Hygienic construction: SUS304 stainless steel, conforms to GMP standards
• Safety protection: Microwave leakage <1 mW/cm², over-temperature alarm, emergency stop

• Free process consultation - send your material for trial drying
• Custom layout design for your production floor
• On-site installation and commissioning (customizable support packages)
• Operator training program included
• Remote troubleshooting via video call, IoT monitoring, or online support
• 12-month warranty on core components (magnetrons excluded)
• Spare parts availability from regional warehouses
• Preventive maintenance service contracts available
• Lifetime technical support via phone, email, or chat

Packing: Anti-rust film + reinforced wooden case (inside plastic bag, outside wooden case); foam padding for sensitive components (control panel, magnetrons)

Standard model lead time: 15-25 days after order confirmation

Custom configuration lead time: 30-50 days (longer for custom power or multi-zone configurations)

Shipping: FOB Shanghai / CIF by sea, air, or rail

Customizable: Export crating, custom labeling, destination port documentation
