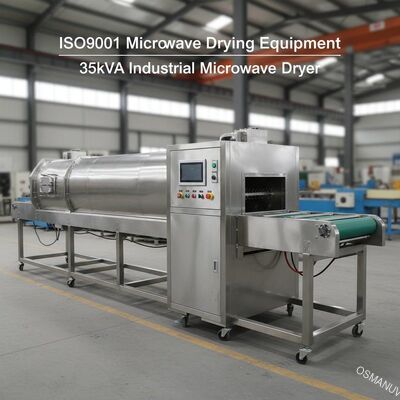

ISO9001 Microwave Drying Equipment 35kVA Industrial Microwave Dryer
Product Details:
| Place of Origin: | China |
| Brand Name: | Osmanuv |
| Certification: | ISO9001 |
| Model Number: | OSM-WBHG-1320T |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 35-45 work days |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | According to customer's demand |
|
Detail Information |
|||
| Product Name: | Microwave Equipment | Rated Input Power: | Microwave ≤35kVA |
|---|---|---|---|
| Microwave Power Cooling Method: | Oil Immersion And Water Cooling | Microwave Output Power:: | 85KW |
| Cooling Method: | Magnetron Water Cooling, Microwave Electronic Power Transformer Oil Immersion Water Cooling | ||
| Highlight: | ISO9001 Microwave Vacuum Drying Equipment,35kVA Industrial Microwave Vacuum Dryer,ISO9001 industrial microwave vacuum dryer |
||
Product Description
Microwave Drying Equipment Stainless Steel Material, Cold Drawn Plate Bending Microwave Equipment
- The conveyor belt of the whole production line is 850mm from the ground, adjustable 50mm
- The transmission system is driven by servo motor
- Conveyor belt adopts plastic conveyor belt (PP white tank chain conveyor belt) transmission, width: 1320mm
- Operation direction of the production line: the person faces the operation panel from left to right
- Line speed of conveyor belt: 1-10 meters/min, and adjustable by frequency conversion
- The maximum power of each cavity at both ends of the inlet and outlet is no more than 6KW
Microwave heating is a method that relies on material absorbing microwave energy and converting it into heat energy, enabling simultaneous heating throughout the material. The high-frequency electromagnetic field operates at billions of cycles per second, causing polar molecules (water molecules, proteins, nucleic acids, fats, carbohydrates) to align and rotate, generating friction heat that rapidly increases temperature and dries water molecules.
Material: 1.5mm SUS 304# stainless steel plate, conforms to microwave production standards, solvent resistant and easy to clean
- Penetrating heating, fast heating speed: Microwave heating makes the object itself become the heating source, requiring no heat conduction process, enabling rapid heating regardless of object shape
- Uniform heating: Microwave penetration ensures even heating throughout the object, avoiding external burning while internal remains wet, improving product quality
A square exhaust fan accelerates cooling of baked products with natural wind, shortening the time to enter the next process.
| Model Number | OSM-WBHG-1320 water-based paint drying production line |
|---|---|
| Input Power | Three-phase five-wire 380V±10% 50Hz±2% |
| Rated Input Power | Microwave ≤35kVA |
| Microwave Output Power | ≥85KW | Adjustable power |
| Microwave Frequency | 2450MHz±50Hz |
| Dimensions (L×W×H) | 17530mm×1600mm×1100mm |
| Number of Boxes Size | Cabinet: 9 | Width: 1170mm |
| Suppressor Size | Suppressor length: 2000mm opening height: 180mm |
| Microwave Energy Feeding | Top feed | Aluminum waveguide |
| Use Environment Temperature | 0～40℃ | Relative humidity ≤80% |
| Magnetron Cooling | Water cooling |
| Microwave Power Supply Cooling | Oil-soaked and water-cooled |
| Operation Control System | PLC programming control with luxurious buttons |
| Surveillance System | Built-in camera in microwave box with display monitoring |
| Power Controller | Oil-immersed microwave power controller (30%-100% adjustment) |
| Total Input Power | Around 85KW |
| Temperature Control | Increase from room temperature to about 80℃ |
| Magnetron Life | Continuous work ≥6000-8000 hours |
| Control Method | Independent console, Delta PLC controller, Weilun touch screen system |
| Conveyor Belt | PP plastic conveyor belt (tank chain conveyor belt), width: 1320mm |
| Conveyor Belt Speed | 1-10m/min, Delta inverter speed adjustable |
We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.
We provide sample testing on our machines with video documentation. Factory visits are available. Our products are widely used in China, Southeast Asia, South America, and Europe.
Fully compliant with GMP & ISO standards with CE certification for exporting.
One year warranty with lifelong maintenance and technical support.
