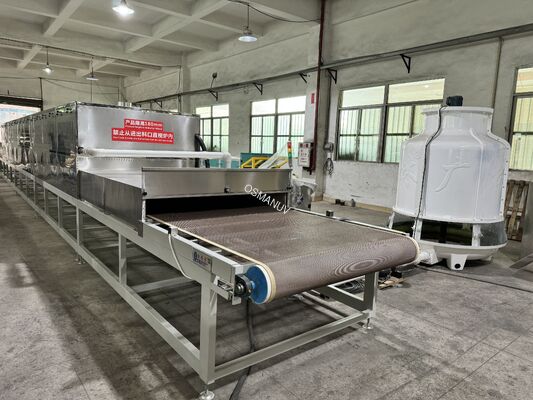

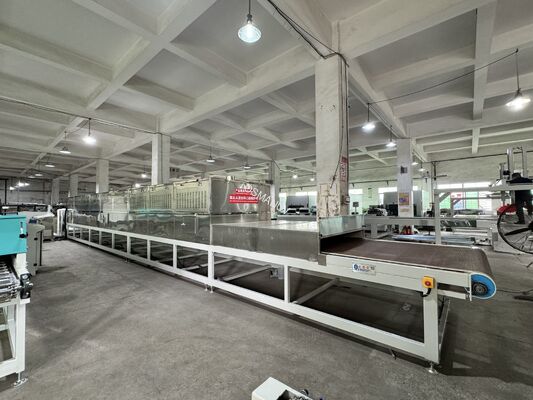

Customizable Microwave Drying Line for Pulp Molding with Modular Multi-Zone Design and PLC Control

Product Description

This microwave drying production line is engineered for rapid, energy-efficient drying of molded pulp products (MPPs) such as food packaging containers, egg trays, and industrial packaging. The system uses microwave energy at 2450 MHz to directly interact with water molecules within the pulp material, enabling volumetric heating that significantly reduces drying time and energy consumption.

Unlike conventional convection drying methods where heat conducts from the surface inward, microwave drying generates heat volumetrically throughout the material—achieving drying time reductions of 25-90% and energy savings up to 40% compared to convection methods. The continuous conveyor belt design dynamically interacts with the microwave field, effectively reducing drying non-uniformity and preventing warping or case-hardening.

The drying process typically reduces moisture content from approximately 50% after pressing to below 20% in a fraction of the time required by conventional ovens. With intelligent PLC control and recipe-driven operation, the equipment supports fully customizable drying profiles to accommodate different product geometries, fiber compositions, and production throughputs.

• Food Service Ware: Drying molded pulp plates, bowls, clamshells, lunch boxes, cup carriers—ensuring dimensional stability and preventing warping
• Egg Trays & Produce Trays: Rapid drying of fruit and vegetable packaging to reduce cycle time and prevent mold growth
• Electronics Packaging: Precision drying of anti-static trays for semiconductors, circuit boards, hard drives—maintaining flatness tolerances
• Industrial Packaging: Corner protectors, edge guards, pallet supports—durable drying for structural integrity
• Medical Device Trays: Cleanroom-compatible drying for sterile barrier packaging
• Cosmetics Packaging: Premium molded fiber inserts and display trays—aesthetic and dimensional stability
• Pharmaceutical Blister Pack Inserts: Tablet trays requiring uniform moisture content for food-grade compliance

Materials compatibility: Suitable for various pulp formulations including bamboo pulp, sugarcane bagasse, and recycled paper pulp. Research confirms that microwave drying reduces drying time from 22.0 minutes for convection drying to 16.0 minutes for microwave drying, with an 88% energy saving, with customizable parameter adjustments for different fiber compositions and product thicknesses.

• Power Configuration: Customizable microwave power output (30-100 kW in 5-10 kW increments) to match production capacity and product thickness
• Drying Chamber: Customizable chamber length (2-15 m), width, and zone count for optimal temperature profiles

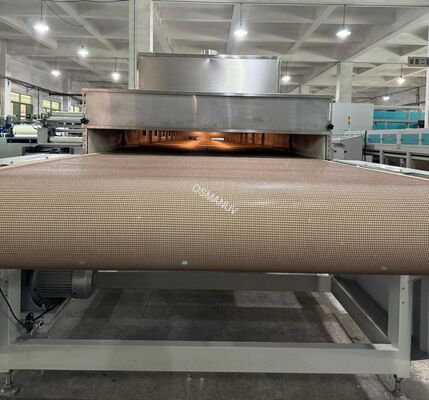

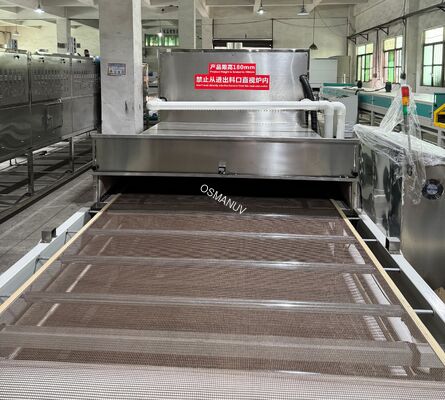

• Conveyor System: Customizable belt materials (mesh, PTFE-coated, solid belt), speed profiles, and belt height adjustment
• Sensor Configuration: Customizable moisture sensor placements for critical monitoring areas
• Control Interface: Customizable automation levels—manual, semi-automatic, or fully automated with MES/ERP integration
• Line Layout: Customizable line configuration—compact placement for limited space or extended conveyor for large-scale production
• Cooling Section: Customizable forced-air cooling or water-cooled zone to stabilize products before stacking
• Cleanroom Compatibility: Customizable cleanroom integration—ISO 5 to ISO 8 with HEPA/ULPA filtration
• System Integration: Customizable I/O interfaces (Ethernet/IP, Profinet, dry contacts) for seamless integration with existing pulp molding presses and factory automation systems

• Rapid & Energy-Efficient Drying: Microwave energy directly heats water molecules within the pulp, reducing drying time by 25-90% and energy consumption by up to 88% compared to conventional convection methods
• Superior Drying Uniformity: Continuous conveyor movement combined with multi-magnetron array ensures even microwave distribution, achieving ±2% moisture deviation and preventing case-hardening or warping
• Volumetric Heating Advantage: Heat and moisture transfer from inside out, unlike conventional drying where heat transfers from surface inward—resulting in faster, more uniform drying
• Intelligent PLC Control: Touchscreen HMI with recipe storage for different product types and fiber compositions; real-time monitoring of temperature, moisture, and power; customizable drying profiles
• Multi-Zone Design: Customizable zoning configurations allow independent temperature and power control for optimized drying of complex or varying-thickness products
• Safety & Compliance: Built-in overheat protection, emergency stop, radiation shielding, safety interlocks; CE and ISO9001 certified
• Modular Construction: Facilitates easy installation, maintenance, and future upgrades; supports customizable integration with existing production lines
• Real-Time Moisture Monitoring: Optional inline sensors provide closed-loop feedback for automatic parameter adjustment, ensuring consistent output quality
• Energy-Saving Magnetron Cooling: Fan-cooled or water-cooled magnetron system for extended component life and continuous 24/7 operation

• Installation & Commissioning: On-site setup, calibration, and integration by experienced engineers (1-3 weeks on-site) with customizable support packages available
• Comprehensive Training: Hands-on training for operators, maintenance staff, and R&D personnel—3-7 days on-site training included
• Warranty & Maintenance: 1-year comprehensive warranty on magnetrons, PLC, and all electronics; customizable preventive maintenance contracts available
• Remote Support: 24/7 remote troubleshooting via video call or IoT monitoring with VPN access to PLC for real-time diagnostics, software updates, and parameter tuning
• Process Development: Sample testing and process development—send your molded pulp products; we provide a full optimization report including drying parameters, temperature profiles, and quality results
• Technical Consultation: Free lifetime technical consultation and future upgrade services for evolving production needs
• Lifetime Support: Technical assistance via phone, email, or online chat for the lifetime of the equipment

• Packing: Securely packed in reinforced wooden crates with anti-rust film and waterproof wrapping; sensitive components protected with foam padding
• Standard Lead Time: 30 - 45 working days after order confirmation for standard configurations
• Custom Lead Time: Customizable delivery schedules—50-70 days for fully customized lines
• Shipping: Worldwide shipping via sea freight, air freight, or rail; FOB / CIF terms available
• Documentation: Full export documentation including technical manuals, electrical schematics, CE declaration, and customs forms provided
• Customizable Options: Export crating, custom labeling, destination port documentation, and special handling instructions available upon request
