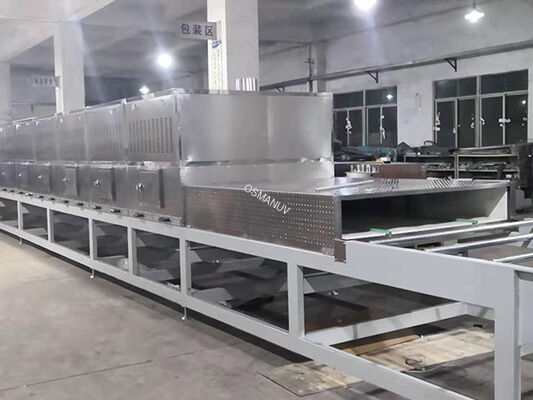

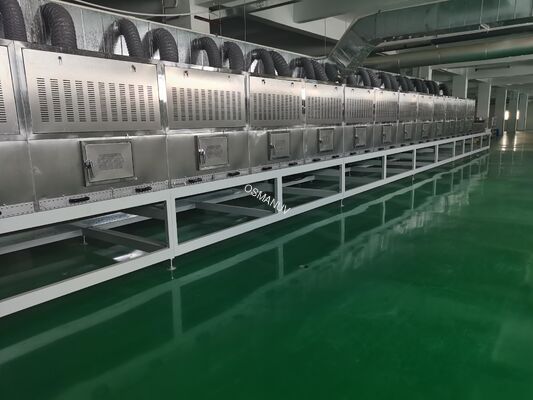

Intelligent Microwave Drying Production Line with Customizable Magnetron Configuration, Automation Integration, and Volumetric Internal Heating

Customizable magnetron configuration and automation integration for pulp molding industry applications

This advanced microwave drying system is specifically engineered for the pulp molding industry, utilizing microwave energy to directly and rapidly heat water molecules within pulp fibers. Unlike conventional hot air drying that heats from the surface inward, this system delivers volumetric internal heating, resulting in significantly faster drying times (reduced by 25-40%), lower energy consumption, and more uniform moisture removal.

• Rapid Internal Heating: Microwave energy penetrates the material and generates heat directly inside the product, eliminating the risk of case hardening and ensuring consistent moisture distribution
• Energy-Efficient Operation: Direct energy transfer to water molecules achieves thermal efficiency far superior to traditional drying methods, saving up to 30-50% of electricity compared to conventional electric heating
• Clean & Eco-Friendly: No combustion, no emissions, and no pollution—fully aligned with sustainable manufacturing principles

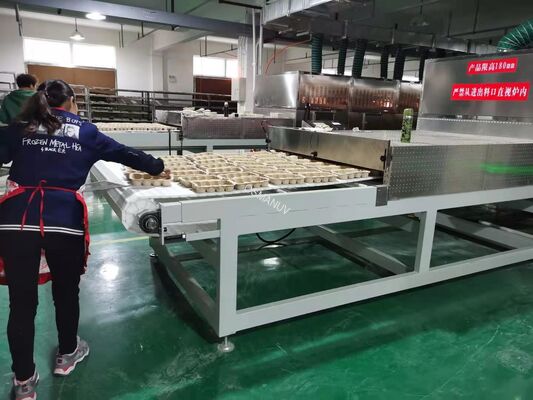

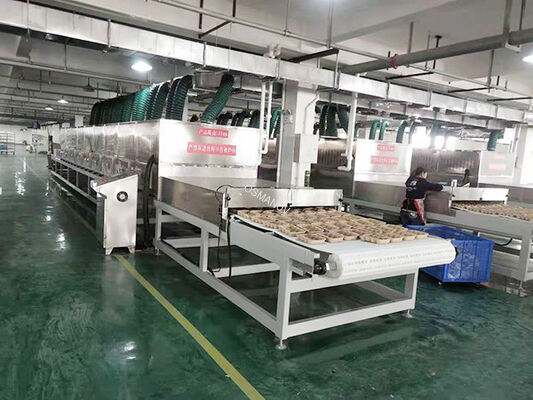

• Molded Pulp Tableware: Drying plates, bowls, trays, clamshell boxes, and cup carriers—rapid and uniform drying without case hardening
• Industrial Pulp Packaging: Drying egg trays, fruit trays, electronic cushioning pads, and industrial corner protectors
• Agricultural Products: Drying seedling pots, horticultural trays, and biodegradable planting containers
• Premium Molded Products: Medical device trays, cosmetic packaging inserts, and custom-shaped containers requiring precise moisture control
• High-Volume Production Lines: Continuous drying for large-scale manufacturing where production flexibility and energy efficiency are critical

This microwave drying system is highly customizable across multiple dimensions to fit your specific production requirements:

• Power Configuration: Customizable microwave output power (30kW - 300kW) and number of magnetrons to match your production capacity targets
• Tunnel Length & Layout: Fully customizable drying tunnel length (6m - 28m) and layout to fit your production floor space and line integration

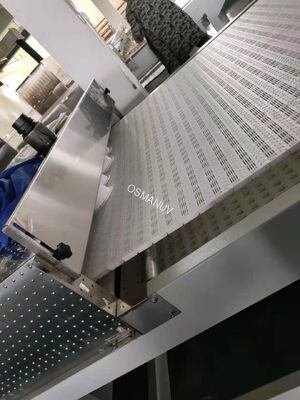

• Conveyor Width & Speed: Customizable effective width (600mm - 1,320mm) and speed profiles (0.5 - 20 m/min) for different product sizes and drying requirements
• Temperature Zone Control: Customizable number of independent temperature zones (2 - 8 zones) for precise drying profile adjustment
• Material Handling: Customizable infeed and outfeed configurations, including robotic loading/unloading integration
• Control System Integration: Customizable communication protocols (Modbus, Profibus, Ethernet/IP) to sync with your master PLC or MES system

• Rapid & Uniform Drying: Volumetric heating from within ensures fast drying with consistent moisture distribution—prevents surface hardening and cracking
• Significant Energy Savings: Up to 30-50% lower energy consumption compared to conventional drying methods—drastically reduces OPEX
• Space-Saving Design: Smaller footprint compared to conventional hot air drying tunnels—efficient use of factory floor space
• Quick Start-Up & Shut-Down: Instant on/off control with no preheating required—eliminates idle energy waste
• Precision Control: Real-time moisture monitoring and feedback control ensure consistent product quality
• Low Maintenance: Solid-state design with no heating elements to replace—reduced maintenance costs
• Safe Operation: Microwave leakage below 5mW/cm² (far below international safety limits) with comprehensive safety interlocks

• Comprehensive pre-installation site assessment and layout planning
• Professional on-site installation, commissioning, and calibration
• Thorough operator training and maintenance instruction
• 12-month standard warranty on the entire system (extendable)
• Lifetime remote technical support and online diagnostics

• Microwave generators and magnetrons shipped in shock-resistant, moisture-proof foam crates
• Entire system modularized and packed in heavy-duty, weatherproof wooden crates
• Special anti-static packaging for electronic and control components
• All shipments include detailed documentation and can be arranged via air or sea based on your requirements
