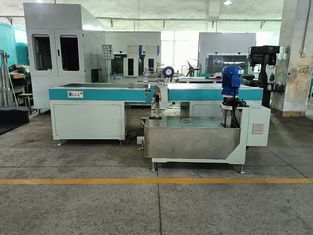

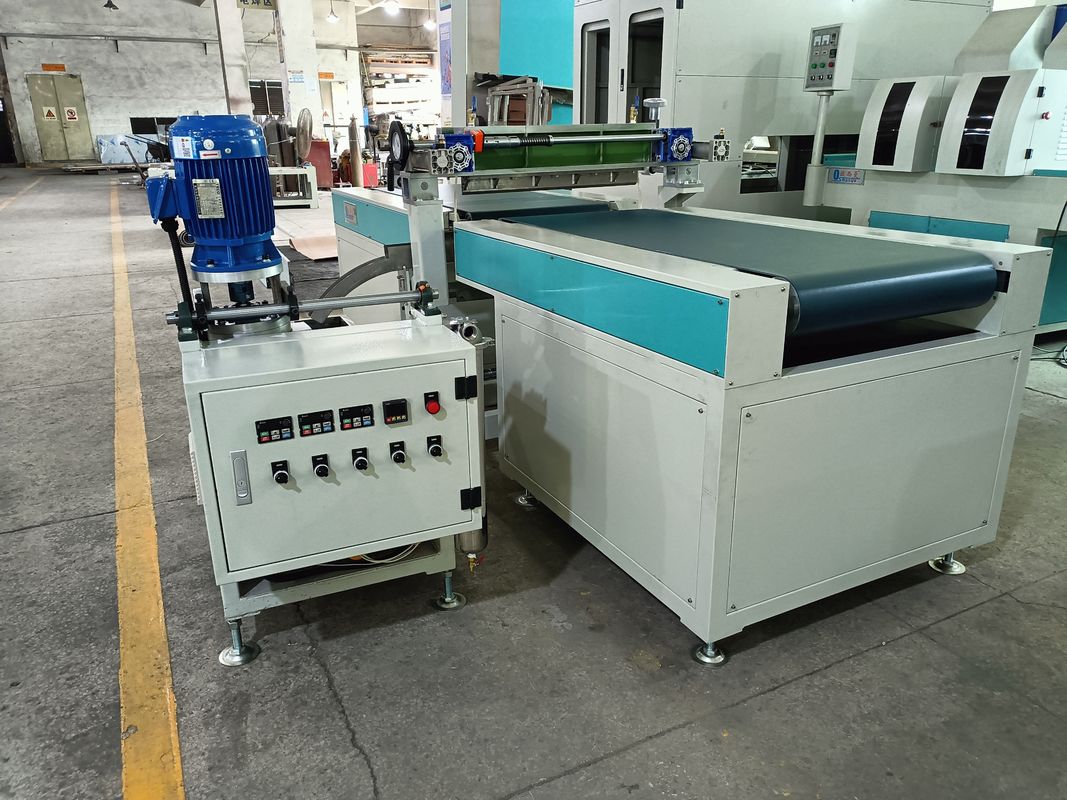

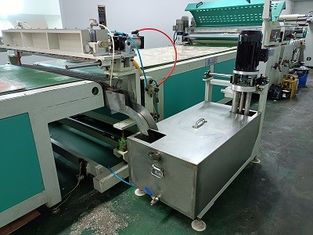

Precision Curtain Coating Line for High-Gloss Pulp Molding - Superior Surface Finish Solution

Precision Curtain Coating Line for High-Gloss Pulp Molding - Superior Surface Finish Solution
Precision Curtain Coating Line for High-Gloss Pulp Molding - Superior Surface Finish Solution
Precision Curtain Coating Line for High-Gloss Pulp Molding - Superior Surface Finish Solution Precision Curtain Coating Line for High-Gloss Pulp Molding - Superior Surface Finish Solution Precision Curtain Coating Line for High-Gloss Pulp Molding - Superior Surface Finish Solution Precision Curtain Coating Line for High-Gloss Pulp Molding - Superior Surface Finish Solution Precision Curtain Coating Line for High-Gloss Pulp Molding - Superior Surface Finish Solution Precision Curtain Coating Line for High-Gloss Pulp Molding - Superior Surface Finish Solution Precision Curtain Coating Line for High-Gloss Pulp Molding - Superior Surface Finish Solution

Large Image :  Precision Curtain Coating Line for High-Gloss Pulp Molding - Superior Surface Finish Solution

Product Details:
Place of Origin: CHINA
Brand Name: OSMANUV
Certification: ISO9001 And CE
Model Number: OSM-LT-1320
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: WOOD PAKAGING
Delivery Time: 35 days
Payment Terms: T/T
Supply Ability: Negotiation
Contact Now

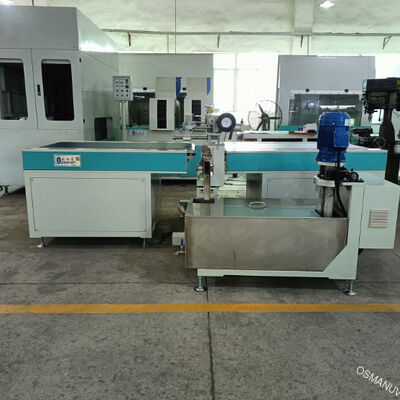

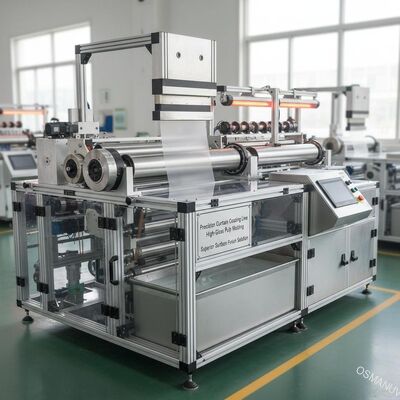

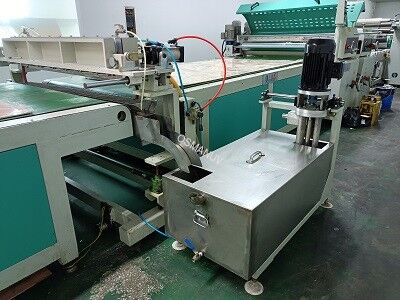

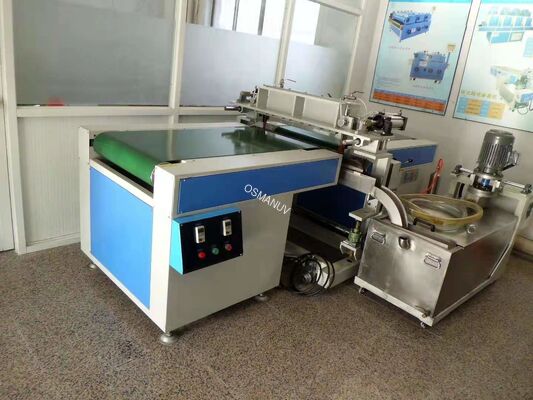

Precision Curtain Coating Line for High-Gloss Pulp Molding - Superior Surface Finish Solution

Description
Voltage: 220V,380V,380V/220V,220V/380V,380V/50HZ Condition: New
Dimension(l*w*h): Customized Size,38900mm*2950mm*1650mm Warranty: 1 Year
Electric Power: Around 117.45kw Production Cycle: 35-45days
Transmission Is Limited Wide: 1320mm
Highlight:

precision curtain coating machine for pulp molding

,

high-gloss curtain coating line

,

pulp molding surface finish solution

Precision Curtain Coating Line for High-Gloss Pulp Molding
Our precision curtain coating line delivers superior surface finish solutions for pulp-molded products, engineered to apply perfectly uniform, high-gloss coatings that eliminate orange peel and spray patterns.
Production Line Composition
This comprehensive system includes precision conveyor belt with vacuum hold-down, coating head reservoir with temperature control, high-precision pump and filter system, vacuum debubbling unit, automatic curtain height control, leveling zone, multi-zone IR drying tunnel, UV curing station, and centralized PLC control cabinet.
Technical Specifications
Parameter Category Specification Notes
Coating Width 600mm / 1200mm Customizable to product size
Coating Thickness 20-150 μm Excellent uniformity (±2%)
Line Speed 5-40 m/min Adjustable for viscosity and thickness
Viscosity Range 100-2000 cP For optimal curtain stability
Power Supply 380V / 50Hz / 3Phase Customizable voltage available
Control System PLC + HMI + Vision System For real-time defect detection
Drying/Curing IR + UV Customizable energy source
Applications
Ideal for applying high-gloss decorative coatings for premium consumer product packaging, high-barrier coatings for flat-bottomed food containers, and functional coatings requiring extreme uniformity.
Key Features
  • Superior Finish: Achieves flawless, high-gloss surface unmatched by spray methods
  • High Material Efficiency: Near 100% material utilization with recirculation system, minimizing waste
  • Consistent Coverage: Provides perfect edge-to-edge coating uniformity on flat surfaces
  • In-line Quality Control: Optional integrated vision inspection system for defect detection
Customization Options
We offer highly customizable solutions. The coating width, conveyor bed design (for product holding), drying and curing methods, and control system sophistication can be tailored to your specific product and output requirements.
Support & Services
We provide installation & commissioning, comprehensive operator training on viscosity management and curtain maintenance, remote troubleshooting, and a 12-month warranty.
Packing & Shipping
The line is disassembled into modular sections. The precision coating head is packed in a custom crate with special shock absorption. Shipped via sea freight or air freight.
Frequently Asked Questions
What are the main advantages over spray coating?
Superior finish quality, higher material efficiency, and no overspray contamination. It is the best choice for high-gloss, flat surfaces.
Can it coat 3D shaped products?
It is best suited for flat or mildly curved products. The vacuum conveyor bed can be customized to hold specific 3D shapes, but steep angles may cause curtain disruption.
