Automatic Natural Gas Industrial Dryer Machine For Bamboo Paper Pulp Molding
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | OSMANUV |
| Certification: | ISO9001 |
| Model Number: | OSM-LRHG-1320T |
| Document: | Natural Gas Drying Machine.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden package |
| Delivery Time: | 30 Days |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Exterior Dimensions: | 700mm X 700mm X 800mm | Weight: | 2000kg |
|---|---|---|---|
| Voltage: | 380V 50HZ | Product Named: | Natural Gas Drying Machine |
| Temperature Range: | Ambient +5℃ ~ 200℃ | Temperature Control: | PLC |
| Temperature Display: | LED Display | Color: | Computer White / Green |
| Highlight: | Bamboo Pulp Molding Industrial Dryer,Paper Pulp Molding Industrial Dryer,Automatic Natural Gas Industrial Dryer |
||
Product Description
Automatic Natural Gas Industrial Dryer Machine For Bamboo Paper Pulp Molding
Product Overview
Automatic Natural Gas Drying Machine For Industrial Bamboo Paper Pulp Molding OSM-ND-800

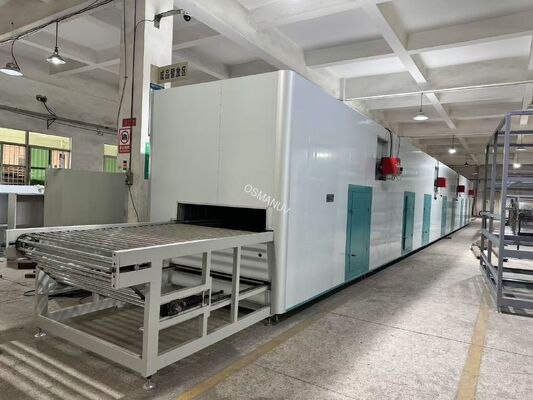

The 28M Natural Gas Drying Line (Model: OSM-LRHG-1320T) is a state-of-the-art industrial drying solution designed for high-efficiency and uniform heat distribution. With a total length of 28 meters, this drying line features a 304 stainless steel conveyor belt, advanced Italian Riello burners, and precise temperature control, making it ideal for drying textiles, coatings, and other heat-sensitive materials.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | OSM-LRHG-1320T |
| Dimensions | 28000mm (L) × 2400mm (W) × 3140mm (H) |

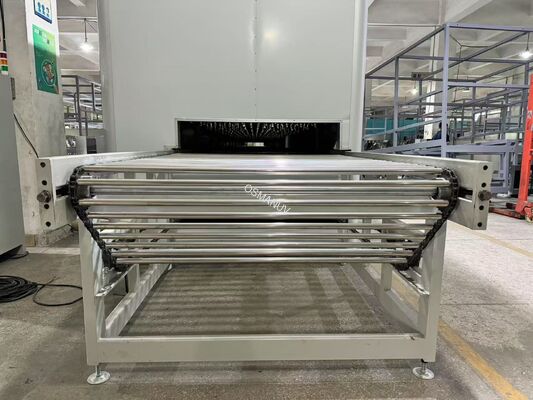

| Conveyor Belt Width | 1320mm (SUS 304 stainless steel) |
| Speed Range | 0.5-8 m/min (Delta inverter speed control) |
| Heating System | 4× Riello burners (200,000 kcal/h, jet-type hot air heating) |
| Fuel Type | Natural Gas |
| Power | 24KW, 380V 50Hz three-phase five-wire system |
| Insulation | 100mm thick rock wool board |
| Warranty | 1 year for machine, 6 months for electrical components |
Applications
- Textile drying
- Coating and paint curing
- Food processing (low-temperature drying)
- Paper and packaging industries
Customization Options
- Adjustable conveyor speed and temperature zones
- Optional additional exhaust systems for specific industries
Key Features
- Energy-efficient Riello burners
- High-quality electrical components for reliability
- Overheat protection and emergency stop system
Support and Services
- On-site installation guidance
- 24/7 technical support
- Spare parts availability
Packing and Shipping
Standard export wooden crate packaging. Shipping dimensions and weight provided upon request.
Frequently Asked Questions
Can the drying line use other fuels?
No, it is designed exclusively for natural gas.
Is the exhaust system included?
No, customers need to provide their own exhaust pipes and environmental equipment.
