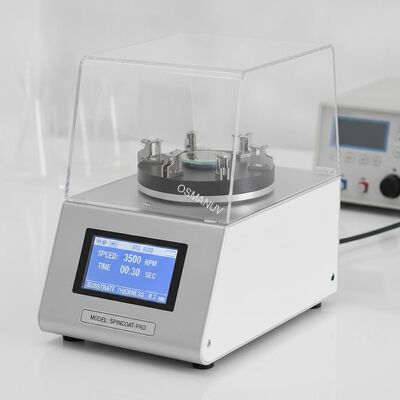

Compact Benchtop Spin Coater with Non-Vacuum Chuck – Customizable for Fragile or Thin Substrates (0.2mm thickness)

Large Image : Compact Benchtop Spin Coater with Non-Vacuum Chuck – Customizable for Fragile or Thin Substrates (0.2mm thickness)

Product Details:

Place of Origin:	CHINA
Brand Name:	OSMANUV
Certification:	ISO9001
Model Number:	OSMANUV

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Negotiation
Packaging Details:	WOOD PACKAGING
Delivery Time:	30 work days
Payment Terms:	T/T
Supply Ability:	Negotiation

Contact Now

Compact Benchtop Spin Coater with Non-Vacuum Chuck – Customizable for Fragile or Thin Substrates (0.2mm thickness)

Description

Feeding Method:	Bottom, Side Optional	Production Capacity:	Varies By Model, Typically 100-500 Pieces Per Minute
Power Consumption:	Approximately 5-15 KW	Station:	24 Station
Production Efficiency:	48 Bowls Or Plates / Min	Automation Level:	Semi-automatic To Fully Automatic
Coating Cost:	Low Cost	Packing:	Standard Wooden Case
Highlight:	compact benchtop spin coater , spin coater with non-vacuum chuck , spin coater for fragile substrates

Compact Benchtop Spin Coater with Non-Vacuum Chuck – Customizable for Fragile or Thin Substrates (0.2mm thickness)

Product Overview

This customizable single-station spin coater is designed for uniform thin-film deposition of photoresist, polyimide, sol-gel, nanoparticles, and other functional coatings onto substrates. Available in high-precision R&D, compact benchtop, and large-format configurations.

The system is fully customizable in spin speed range, substrate size, chuck type, bowl material, and automation level. Spin coating uses centrifugal force to spread a liquid coating evenly across a substrate, achieving film thicknesses from 1 to 50 microns with uniformity up to ± 1%.

Key advantages include exceptional speed stability (< ±1% fluctuation), low vibration operation, and a chemical-resistant process bowl. The compact design is ideal for research laboratories, pilot lines, and small-batch production environments. The modular architecture supports future upgrades, including multiple dispense nozzles, nitrogen purge, and in-situ heating modules.

Technical Specifications

Parameter	High-Precision R&D Model	Compact Benchtop Model	Large-Format Model
Substrate size (customizable)	Up to 150 mm dia.	5 - 120 mm dia.	Up to 450 mm / 18"
Spin speed range (customizable)	100 - 12,000 rpm	50 - 10,000 rpm	Up to 15,000 rpm
Speed accuracy	±0.5% of set value	±1 rpm	±1 rpm (servo)
Acceleration (customizable)	100 - 10,000 rpm/s	Programmable ramp rates	Up to 30,000 rpm/s
Program steps (customizable)	20+ steps per recipe	10 programs, 20 steps each	200 recipes, 40 steps each
Chuck type (customizable)	Vacuum (aluminum/PTFE)	Non-vacuum / Vacuum	Vacuum / Mechanical clamp
Bowl material (customizable)	PTFE / PP / Stainless steel 316L	PP / PTFE-coated	Stainless steel
Coating viscosity range	Up to 2,000 cP	Up to 1,000 cP	Customizable
Control interface	7" HMI touchscreen	4.3" LCD	Touchscreen + PLC
Data export	USB / Ethernet	USB	USB / Ethernet / Modbus
Power supply	110/220V, 50/60Hz	110/220V, 50/60Hz	220/380V, 50/60Hz
Typical application	Semiconductor, OLED, perovskite	General R&D, teaching	Industrial pilot, large panels

Applications

Semiconductor & MEMS: Photoresist, ARC, polyimide coatings on wafers
Optoelectronics: OLED, quantum dots, perovskite solar cells
Materials science: Sol-gel, spin-on glass (SOG), nanoparticle films
Biotechnology: Biosensors, microfluidics, polymer films
R&D & academia: Process development, formula optimization, teaching labs
Specialty packaging: Barrier coatings on molded pulp products (e.g., meal boxes, cups, trays)

Customization Options

This single-station spin coater is highly customizable to meet your specific application requirements:

Chuck design & size: Custom-machined vacuum chucks for round (up to 450 mm), square, rectangular, or irregular substrates
Spin speed range: Extendable from 50 rpm up to 15,000 rpm
Acceleration profiles: Customizable ramp rates for edge bead control
Bowl material: Polypropylene (PP), PTFE, stainless steel 316L - customizable for solvent resistance
Fixture type: Vacuum chuck, mechanical clamp, or custom 3D-printed holders for complex geometries
Dispense system: Manual syringe / automated syringe pump / solenoid valve / multi-nozzle array - customizable
Environmental control: Inert gas purge (N₂), humidity control, solvent vapor hood
Drying integration: Optional in-situ IR heaters, hot air blowers, or UV curing lamps
Software: Recipe management, data logging, USB/Ethernet export, Modbus integration
Automation level: Fully manual to semi-automatic with automated dispense and cycle control
Safety: Interlocked enclosures, emergency stop, spill containment

Key Features

High precision spin control: High-torque brushless motor with ±0.5% speed accuracy and programmable acceleration ensures repeatable, uniform coating
R&D-focused design: Multi-step recipe programming and data logging capabilities for systematic process development
Versatile fixturing: Customizable chucks and fixtures securely hold complex 3D shapes or fragile substrates
Minimal material waste: Precise, small-volume dispensing is ideal for expensive or experimental coating materials
User-friendly interface: Intuitive touchscreen HMI with recipe storage for quick recall of optimized parameters
Compact footprint: Benchtop design saves valuable lab or production floor space
Chemical-resistant construction: PTFE, PP, or stainless steel bowls for aggressive solvents
Safety interlocks: Automatic stop when lid is opened during operation
Easy cleaning: Removable fluid path components and smooth chamber surfaces
Data traceability: Recipe storage, real-time monitoring, USB/Ethernet export

Support and Services

Free process consulting and material testing (send us your substrates)
Custom fixture design and engineering services
Installation guide and calibration video included
Remote troubleshooting within 24 hours
18-month warranty on motor and controller, 12-month on accessories
Spare parts availability from regional warehouses (US/EU/Asia)
On-site training (available for customizable support packages)
Lifetime technical support via phone, email, or chat

Packing and Shipping

Packing: Anti-static foam + reinforced plywood/wooden case (with desiccant for moisture-sensitive components)
Standard model lead time: 15-25 days after order confirmation
Custom configuration lead time: 30-45 days (longer for custom chucks or bowls)
Shipping: FOB Shanghai / CIF by sea, air, or rail
Customizable: Export crating, custom labeling, destination port documentation

Frequently Asked Questions

Q1: What is the maximum substrate size this spin coater can handle?

A: Standard R&D models handle up to 150 mm (6") diameter wafers. For large-format applications, we offer customizable chucks up to 450 mm (18") substrates. Square substrates up to 150×150 mm are also supported.

Q2: Can I use this spin coater for non-round substrates (e.g., rectangular or irregular shapes)?

A: Yes. We offer customizable vacuum chucks and mechanical fixtures for square, rectangular, and irregularly shaped substrates. Please provide your substrate dimensions and geometry for custom fixture design.
