Compact Benchtop Spin Coating Machine with Programmable Speed, Data Logging, and Customizable for Small-Batch Pulp Molding

Large Image : Compact Benchtop Spin Coating Machine with Programmable Speed, Data Logging, and Customizable for Small-Batch Pulp Molding

Product Details:

Place of Origin:	CHINA
Brand Name:	OSMANUV
Certification:	ISO9001
Model Number:	Specification

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiation
Packaging Details:	Wood Packaging
Delivery Time:	30 Working Days
Payment Terms:	T/T
Supply Ability:	Negotiation

Contact Now

Compact Benchtop Spin Coating Machine with Programmable Speed, Data Logging, and Customizable for Small-Batch Pulp Molding

Description

Condition:	New	Automatic Grade:	Automatic
Warranty:	1 Year	After-sales Service Provided:	Engineers Available To Service Machinery Overseas,No Overseas Service Provided,Online Support,Field Maintenance And Repair Service
Application:	Food Container	Driven Type:	Electric
Packaging Type:	Wood Packaging	Power:	50W,180W,below15W,5W
Highlight:	Programmable Speed Spin Coating Machine , Data Logging Pulp Molding Coater , Customizable Benchtop Spin Coater

Compact Benchtop Spin Coating Machine with Programmable Speed, Data Logging, and Customizable for Small-Batch Pulp Molding

Product Description

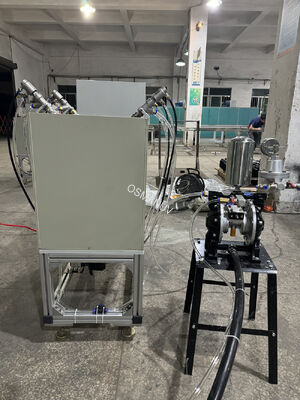

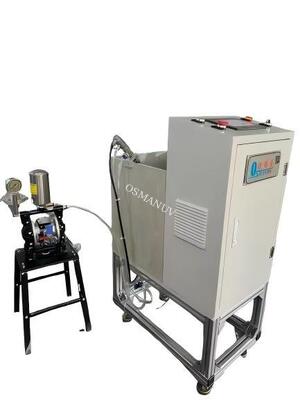

This precision-engineered single-station spin coating system is specifically designed for applying uniform functional coatings—including waterproof, oil-proof, and heat-resistant barrier coatings—to the internal surfaces of molded pulp products such as meal containers, bowls, plates, trays, and cups.

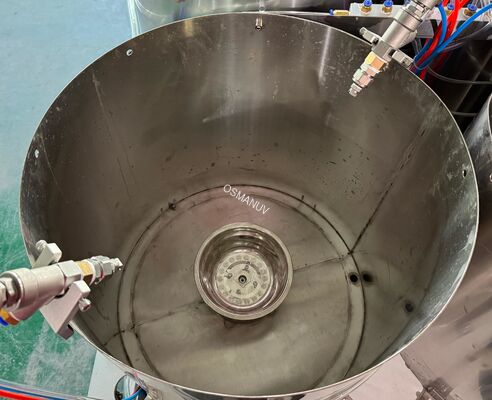

The machine utilizes advanced spin-coating technology where a molded pulp product is securely held on a custom-engineered fixture within the coating chamber. A precision dispense system applies controlled amounts of coating material, then the fixture rotates at programmable speeds (100-10,000 RPM), using centrifugal force to spread the coating evenly across all complex interior geometries.

Unlike spray coating methods, spin coating delivers complete coverage on intricate 3D shapes while achieving coating transfer efficiency greater than 90%, significantly reducing material waste for high-value barrier materials.

Technical Specifications

Parameter	Specification / Range	Customization Options
Machine Type	Benchtop or Floor-Standing Single Station	Fixed
Spin Speed Range	100 - 10,000 RPM (standard)	Customizable up to 15,000 RPM
Speed Accuracy	±1% of set value	High-precision servo options available
Acceleration	100 - 20,000 RPM/s (programmable)	Customizable acceleration profiles
Programmable Steps	Up to 10 steps per recipe	Fixed
Fixture / Chuck Size	Standard up to 200mm diameter	Fully Customizable to your product geometry
Fixture Type	Vacuum chuck (standard)	Customizable holding method
Max. Product Height/Depth	Up to 150mm (standard)	Customizable chamber depth

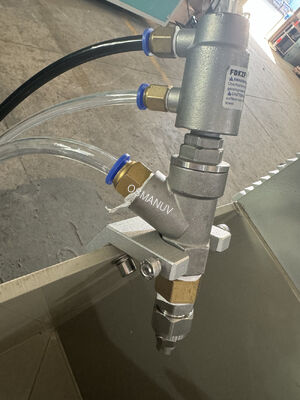

Coating Dispense Method	Syringe pump / Solenoid valve	Customizable dispense system
Max. Coating Viscosity	Up to 1,000 cP (standard)	Customizable for higher viscosity
Control Interface	Digital Touchscreen with recipe storage	Customizable software, data logging
Data Logging	USB / Ethernet for CSV/PDF export	Customizable data acquisition
Power Supply	110V/220V, 50/60Hz (Single Phase)	Configurable to local voltage
Footprint (approx.)	400mm × 500mm to 600mm × 700mm	Customizable layout
Safety Features	Interlocked transparent hood, emergency stop	Customizable safety interlocks
Compliance	ISO9001	Additional certifications available

Applications

R&D and Coating Formulation Development: Testing new water-based, bio-polymer, or barrier coatings on pulp substrates
Prototyping & Sample Production: Creating coated samples for customer presentations and field trials
Small-Batch Production: Manufacturing limited quantities of specialty or high-value coated pulp products
Process Parameter Optimization: Determining optimal spin speed, dispense volume, and acceleration for new product shapes
Quality Control & Testing: Evaluating coating performance on finished samples
Educational & Research Institutions: Supporting academic research into sustainable packaging

Key Features

Precision Spin Control: High-torque brushless motor with ±1% speed accuracy and programmable acceleration
R&D-Focused Design: Multi-step recipe programming and data logging capabilities
Versatile Fixturing: Customizable vacuum chucks and fixtures for complex 3D pulp shapes
Minimal Material Waste: Precise, small-volume dispensing reduces R&D costs
Complete Coverage: Effective coating of all internal contours, including deep corners and sidewalls
User-Friendly Interface: Intuitive touchscreen HMI with recipe storage
Compact Footprint: Benchtop design saves valuable lab or production space
Robust & Safe Construction: Safety-interlocked enclosures and emergency stop features
Future-Proof Modularity: Modular architecture allows for later upgrades
Easy Cleaning: Removable fluid path components simplify cleaning between materials
Data Export: USB port or Ethernet connection for comprehensive R&D documentation

Customization Options

Custom Fixture Design: Tailored fixtures for your specific pulp molded product geometry
Fixture Material: Customizable selection for compatibility with corrosive coatings
Dispense System Customization: Choice of dispensing methods including precision syringe pumps
Speed Range & Control: Customizable maximum speed up to 15,000 RPM
Software & Data Logging: Tailored software features and data export options
Chamber & Enclosure: Customizable chamber size for larger products
Drying Integration: Customizable integration with optional IR heaters or UV curing
Automation Level: From manual lab units to semi-automatic systems
System Integration: Customizable I/O interfaces for existing workflows

Support and Services

Pre-Sales Technical Consultation: Analysis of your specific product samples and requirements
Sample Testing: Process development and demonstration in our application lab
Fixture Design Assistance: Engineering team support for creating perfect holding solutions
Installation & Commissioning: Detailed setup support and on-site commissioning available
Comprehensive Training: Operator training covering machine operation and maintenance
Warranty: 12-24 month comprehensive warranty with extended options
Remote Support: 24/7 online technical support via phone, email, or video call
Lifetime Support: Technical assistance for the lifetime of the equipment

Packing and Shipping

Packing: Securely packed in foam-insulated cardboard or reinforced export wooden crate
Included Accessories: All necessary cables, tools, consumables starter kit, and documentation
Standard Lead Time: 15-25 working days for standard models
Custom Lead Time: 25-35 working days for customized systems
Shipping: Worldwide shipping via sea freight with FOB/CIF terms available
Documentation: Complete commercial and technical documentation provided

Frequently Asked Questions

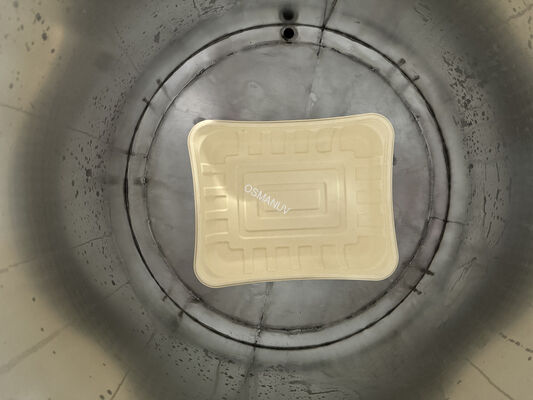

Q1:Can this single-station spin coater handle irregularly shaped pulp molded products like deep bowls or complex trays?

Yes, absolutely. This is its primary function. The key is a customized vacuum fixture designed specifically to hold your unique 3D mold geometry securely during high-speed rotation. The spin coating process effectively coats all internal contours, including deep corners and sidewalls.

Q2:What is the typical coating thickness range achievable?

Coating thickness depends on several factors including material viscosity, spin speed, and solids content. Typically, the system can achieve uniform films from 1 to 50 microns. Process development using this machine will determine the exact parameters required for your target thickness.

Q3:How do I clean the system between different coating materials?

The fluid path is designed for easy cleaning. The dispense system uses disposable or easily cleanable components, and the fixture/chuck surface is wipe-clean. Detailed cleaning procedures are outlined in the user manual.

Q4:Is the machine suitable for water-based bio-polymer coatings?

Absolutely. The system is compatible with a wide range of coatings including water-based, solvent-based, and bio-polymer formulations. For water-based coatings, controlling drying speed is an important part of the process development.
