Precision Spin Coating Machine with Uniform 360° Coverage for PFAS-Free Pulp Molding Applications

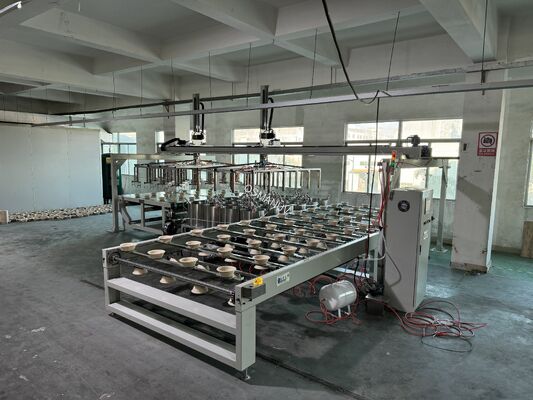

Large Image : Precision Spin Coating Machine with Uniform 360° Coverage for PFAS-Free Pulp Molding Applications

Product Details:

Place of Origin:	CHINA
Brand Name:	OSMANUV
Certification:	ISO9001
Model Number:	Specification

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiation
Packaging Details:	Wood Packaging
Delivery Time:	30 Working Days
Payment Terms:	T/T
Supply Ability:	Negotiation

Contact Now

Precision Spin Coating Machine with Uniform 360° Coverage for PFAS-Free Pulp Molding Applications

Description

Coating Way:	Spin Coating	Working Thickness:	3-80mm
Power Supply:	220V / 380V, 50Hz/60Hz	Coating Speed:	0-10 Meters/min
Feeding Method:	Bottom, Side Optional	Application Type:	Industrial
Humidity:	50±10℃	Conveying Speed:	25 - 80 M/min
Highlight:	Precision Spin Coating Machine for PFAS-Free , Pulp Molding Coating Machine with 360° Coverage , Uniform Spin Coating Machine for Pulp Molding

Precision Spin Coating Machine with Uniform 360° Coverage for PFAS-Free Pulp Molding Applications

Product Overview
This rotary spin coating production line is engineered for applying uniform, high-performance internal barrier coatings—waterproof, oil-proof, and heat-resistant—to molded pulp tableware and packaging products. The rotary spin-coating process utilizes centrifugal force to evenly spread coating over complex three-dimensional interior surfaces, eliminating pinholes and ensuring consistent dry film thickness.

Unlike conventional spray coating methods, spin coating achieves transfer efficiency of ≥90%, drastically reducing material waste and lowering coating costs by 30-50% for high-value barrier materials. The system supports both water-based dispersions (PE, PLA, bio-based polymers) and PFAS-free barrier formulations, making it ideal for manufacturers transitioning to sustainable food-grade packaging solutions.

With intelligent PLC control and recipe-driven operation, the equipment supports fully customizable drying profiles, spin speed programs, and product fixture designs to accommodate different product geometries, coating formulations, and production throughputs.

Technical Parameters

Parameter	Specification / Range	Customization Options
Number of Work Stations	1 / 2 / 24 stations (rotary indexing)	Customizable: 1, 2, 24 stations
Production Capacity	15 - 35 cycles/min ≈ 360 - 800+ pcs/hour	Customizable per product configuration
Max Product Size (L×W×H)	400 × 300 × 150 mm	Customizable fixtures and nests
Turntable Indexing Accuracy	±0.1 mm (servo-driven harmonic drive)	Fixed high-precision standard
Spin Speed Range	100 - 3,000 RPM per station	Customizable up to 10,000 RPM
Spin Speed Accuracy	±1 RPM (under load)	--
Coating Weight / Thickness Range	5 - 25 gsm dry	Adjustable; ±2% thickness uniformity
Compatible Coating Types	Water-based dispersions, PE, PLA, bio-based barriers, PFAS-free solutions	Customizable for solvent-based systems with explosion-proof enclosure
Drying Method	Integrated multi-stage tunnel (IR + forced hot air)	Customizable: IR only, hot air only, or UV-LED
Drying Temperature Range	40 - 150°C (zone-independent PID control)	Customizable temperature profiles
Coating Transfer Efficiency	≥90% (centrifugal spin method)	--
Power Supply	380V / 400V / 460V, 50/60Hz, 3-phase	Configurable to local standards (e.g., 220V/60Hz)
Control System	S7-1200 PLC with 10-12″ HMI, 500-recipe storage	Customizable automation protocols (PROFIBUS, Ethernet/IP)
Data Logging	USB, Ethernet/IP, Profinet	Optional FDA 21 CFR Part 11 compliance
Line Dimensions (L×W×H)	Approx. 12,000 × 3,000 × 2,200 mm	Customizable layout and footprint
Material (Contact Surfaces)	SUS304 food-grade stainless steel	--
Safety Features	Light curtain, emergency stops, enclosure interlock, over-temperature protection	Customizable per factory requirements
Compliance	CE, ISO9001	Additional certifications available

Note: All technical parameters are customizable to meet specific production requirements and product specifications.

Applications

This spin coating production line is widely used in the following sectors:

Food Service Ware: Internal barrier coating for plates, bowls, clamshells, lunch boxes, cup carriers—ensuring waterproof and oil-proof performance with PFAS-free coatings.
Egg Trays & Produce Trays: Moisture barrier coating for fruit and vegetable packaging to extend shelf life.
Electronics Packaging: Anti-static trays for semiconductors, circuit boards, and hard drives—requiring precision coating uniformity.
Industrial Packaging: Corner protectors, edge guards, pallet supports—durable coating for mechanical protection.
Medical Device Trays: Sterile barrier packaging with high cleanroom compatibility requirements.
Cosmetics Packaging: Premium molded fiber inserts and display trays—aesthetic and functional coating.
Pharmaceutical Blister Pack Inserts: Tablet trays requiring uniform, food-grade barrier coating.

Materials compatibility: Suitable for various pulp formulations including bamboo pulp, bagasse (sugarcane pulp), and recycled paper pulp, with customizable parameter adjustments for different fiber compositions and product thicknesses.

Customization Options

We provide comprehensive customizable services to meet specific client needs:

Station Count: Customizable number of workstations—1, 2, 24 stations—scalable by adding turntable modules to match production capacity requirements.
Product Fixtures (Nests): Customizable dedicated fixtures for each product shape with quick-change system; changeover takes less than 5 minutes.
Spin Speed per Station: Customizable independent programming for mixed-product runs on the same turntable.
Drying Zone Configuration: Customizable drying profiles—add UV-LED, modify IR/hot air ratio, or integrate additional cooling sections.
Coating Application System: Customizable dispense methods—peristaltic pump, precision syringe, rotary atomizer, or spray nozzle.
Control Interface: Customizable automation levels—manual, semi-automatic, or fully automated with MES/ERP integration.
Line Length and Layout: Customizable line configuration—compact placement for limited space or extended conveyor for large-scale lines.
Cleanroom Compatibility: Customizable cleanroom integration—ISO 5 to ISO 8 with HEPA/ULPA filtration and positive-pressure enclosure.
Coating Parameters: Customizable pre-set and adjustable programs for different coating materials, viscosities, and application targets.
Integration: Customizable I/O interfaces (Ethernet/IP, Profinet, dry contacts) for seamless integration with existing pulp molding presses and factory automation systems.

Key Features

Rotary Indexing Parallel Processing: All stations operate simultaneously, maximizing throughput per square meter of floor space—24 stations can process 360-800+ pieces per hour.
High-Precision Spin Coating: Achieves uniform 360° coverage on complex 3D geometries, eliminating pinholes, streaks, and inconsistent film thickness common in spray.
Integrated Staged Drying: IR + forced hot air in-line drying eliminates separate curing ovens and double handling, reducing work-in-process inventory.
Recipe-Driven Changeover: Store 500+ recipes; change between product families or coating formulations in less than 5 minutes—ideal for flexible manufacturing.
Closed-Loop Pressure Control: Ensures consistent coating weight (±2% accuracy) and thickness uniformity (>95% across all stations).
High Material Efficiency: Spin coating achieves ≥90% material transfer efficiency, reducing coating material costs by 30-50% compared to air spray (40-60% efficiency).
Heavy-Duty Modular Construction: Scalable from 12 to 36 stations; expandable via bolted turntable sections for future capacity upgrades.
Full Data Traceability: Batch logging of spin speed, temperature, coating weight, and cycle times for quality control compliance and ISO certification audits.
Energy-Saving Design: VFD-controlled blowers, IR zones that activate only with product presence, and standby power mode reduce energy consumption.
Tool-Less Fixture Change: Quick-release product nests minimize downtime between production runs.
Food-Grade Construction: All product-contact surfaces in SUS304 stainless steel ensure compliance with food safety standards.
Safety & Compliance: Built-in light curtains, emergency stops, enclosure interlocks, and over-temperature protection; CE and ISO9001 certified.

Support and Services

We are committed to full-cycle customer support:

Installation & Commissioning: On-site setup and calibration by experienced engineers (2-3 weeks on-site) with customizable support packages available.
Comprehensive Training: Hands-on training for operators, maintenance staff, and R&D personnel—5-10 days on-site training included.
Warranty & Maintenance: 2-year comprehensive warranty on turntable drive, spin motors, PLC, pumps, and all electronics; customizable preventive maintenance contracts available.
Spare Parts Supply: Guaranteed for 10+ years with 48-hour express global shipping from regional warehouses.
Remote Support: 24/7 remote troubleshooting via video call or IoT monitoring with VPN access to PLC for real-time diagnostics, software updates, and parameter tuning.
Process Development: Free sample testing and process development—send your molded pulp products; we provide a full optimization report including coating thickness, uniformity, and barrier performance.
Technical Consultation: Free lifetime technical consultation and future upgrade services for evolving production needs.
Lifetime Support: Technical assistance via phone, email, or online chat for the lifetime of the equipment.

Packing and Shipping

Packing: Securely packed in reinforced wooden crates with anti-rust film and waterproof wrapping; sensitive components (control panel, product fixtures, precision nozzles) protected with foam padding.
Standard Lead Time: 30 - 45 working days after order confirmation for standard 12-station configurations.
Custom Lead Time: Customizable delivery schedules—50-70 days for fully customized 24-station or 36-station lines.
Shipping: Worldwide shipping via sea freight, air freight, or rail; FOB / CIF terms available.
Documentation: Full export documentation including technical manuals, electrical schematics, CE declaration, and customs forms provided.
Customizable Options: Export crating, custom labeling, destination port documentation, and special handling instructions available upon request.

Frequently Asked Questions

Q1: What types of coatings are compatible with the spin coating process?

The line is compatible with water-based dispersions (PE, PLA, bio-based polymers), PFAS-free barrier coatings, oil-proof emulsions, and functional additives (anti-static, hydrophobic). For solvent-based coatings, we can upgrade the enclosure with explosion-proof electricals and enhanced exhaust—a customizable option.

Q2: How does spin coating compare to spray coating in terms of material waste and coverage uniformity?

Spin coating achieves transfer efficiency ≥90% (material applied vs. material used)—significantly higher than air spray (40-60%). The centrifugal force spreads coating uniformly across all internal surfaces, including deep recesses and corners, eliminating pinholes and streaks common in spray application. For high-value barrier coatings (e.g., bio-based polymers), spin coating can reduce material costs by 30-50%.

Q3: How customizable is the drying process for different coating formulations?

The drying tunnel features fully customizable temperature and airflow profiles. Each zone has independent PID control (40-150°C) and can be configured for IR, forced hot air, or a combination. For UV-curable coatings, we can add UV-LED modules. All drying parameters are stored in recipes for rapid changeover.
