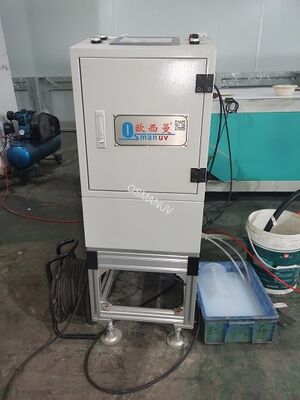

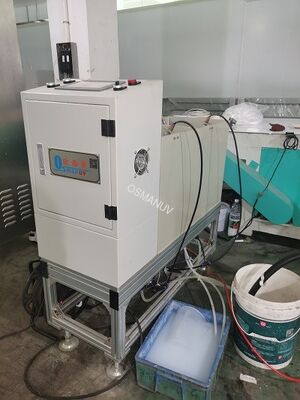

High-Throughput Dual-Station Spin Coater with Customizable Speed up to 10,000 rpm and Independent Station Control

High-Throughput Dual-Station Spin Coater with Customizable Speed up to 10,000 rpm and Independent Station Control
High-Throughput Dual-Station Spin Coater for R&D Labs – Customizable Speed up to 10,000 rpm & Independent Station ControlProduct OverviewThis customizable dual-station spin coater is a high-performance coating system engineered for laboratories and production facilities requiring high throughput, ...
Place of Origin:CHINA
Brand Name:OSMANUV
Certification:ISO9001
Model Number:OSMANUV
Minimum Order Quantity:1 SET
Price:Negotiation
Product Custom Attributes
Highlight

Dual-station spin coater with customizable speed

,

High-throughput spin coater with independent control

,

Pulp molding coating machine with 10 000 rpm

Coating Safety:
High Safety
Lamp Type:
Carbon Fiber Type
Driven Type:
Electric,Manual
Production Line:
Production Line
Type:
Spin Coating Line
Compressed Air:
Self-provided 6 Kg Gas Source
Burner:
Original Riello Burner; 2 Sets
Spray Room Dimensions:
400 * 400 * 500 Mm
Product Description
High-Throughput Dual-Station Spin Coater for R&D Labs – Customizable Speed up to 10,000 rpm & Independent Station Control
Product Overview

This customizable dual-station spin coater is a high-performance coating system engineered for laboratories and production facilities requiring high throughput, efficiency, and process repeatability. Available in research, industrial production, and cleanroom-compatible configurations.

The system is fully customizable in chuck size, spin speed range, number of program steps, and dispensing method. Two independent stations allow simultaneous or alternating operation—one station can coat while the other is being loaded/unloaded, dramatically increasing productivity. Each station operates with independent programmable controls, enabling coating of different materials or substrates under optimized conditions without cross-contamination.

Spin coating is a preferred method for producing uniform thin films because it provides a low-cost but effective way to precisely control the deposition process. The system is ideal for photoresist coating, sol-gel deposition, barrier layer applications in semiconductor, MEMS, optics, and printed electronics industries.

Technical Specifications
ParameterResearch & Pilot ModelIndustrial Production ModelCleanroom/Glovebox Model
Number of stations2 independent2 independent (customizable up to 4)2 independent
Spin speed range (customizable)300 - 10,000 rpm100 - 3,000 rpm (customizable up to 15,000)500 - 8,000 rpm
Speed accuracy±1 rpm±1 rpm (servo)±3%
Acceleration controlProgrammable multi-stepProgrammable multi-stepPID regulated
Substrate size (customizable)Up to 200 mm (8") per stationUp to 450 mm (18") - customizableUp to 200 mm (8") per station
Programmable stagesUp to 10 steps per stationRecipe-based (unlimited)5 steps per station
Vacuum systemIndependent pump per stationIndependent high-flow pumpShared + solenoid valves
Dispense system (customizable)Manual syringe / nozzleServo-driven automated dosingSemi-auto metering pump
Control interfaceDual 7-inch touchscreensPLC + HMI with data loggingPLC + HMI touchscreen
Enclosure materialStainless steel / PTFEChemical-resistant coatingStainless steel + anti-corrosion
Power supply (customizable)AC 110/220V, 50/60HzAC 380V, 50/60Hz (customizable)AC 220V, 50/60Hz
Dimensions~700×400×300 mmCustomizable650×750×1620 mm
Weight~28 kgCustomizable~120 kg
Applications
  • Semiconductor & MEMS: Photoresist coating on silicon wafers, MEMS devices
  • Optoelectronics: Thin-film deposition for LEDs, solar cells, flat panel displays
  • Materials science: Sol-gel, polymer, and nanocomposite coatings
  • Biomedical: Bio-sensor and microfluidic device fabrication
  • Printed electronics: Conductive ink deposition on flexible substrates

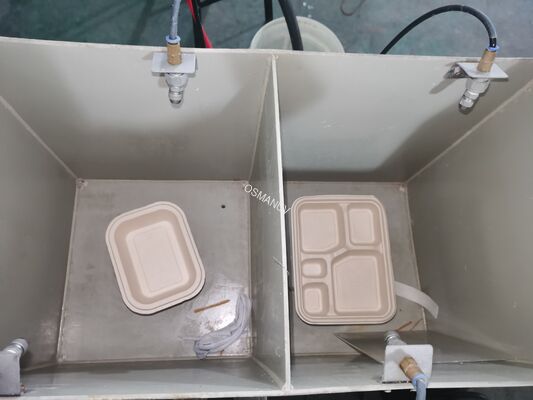

  • Packaging: Barrier coating on pulp-molded tableware and food containers
  • Perovskite & renewable energy: Thin-film perovskite solar cell preparation
Customization Options

This dual-station spin coater is highly customizable to meet your specific application requirements:

  • Chuck design & size: Custom-machined vacuum chucks for substrates from 10mm to 450mm
  • Spin speed range: Extendable up to 15,000 rpm for ultra-thin film applications
  • Number of stations: Expandable to 3 or 4 stations for multi-batch processing
  • Dispense system: Manual, semi-auto, or fully automated with servo-controlled pumps
  • Environmental control: Cleanroom (Class 10-100,000), inert gas purge, humidity control
  • Thermal integration: Built-in hot plate (up to 300°C) or UV curing module
  • Automation: Robotic loading/unloading, conveyor integration, batch processing
  • Enclosure material: Solvent-resistant PTFE, stainless steel, or explosion-proof design
  • Programming: Dual independent recipe control per station
  • Safety: Lid interlock, emergency stop on each station
Key Features
  • Dual-station throughput: Two stations operate independently - coat and load simultaneously, doubling productivity compared to single-station units
  • Independent recipe control: Each station runs different materials or spin parameters concurrently
  • High precision: Brushless DC or servo motor with ±1 rpm stability for exceptional uniformity
  • Chemical-resistant chamber: Stainless steel construction with solvent-resistant coating for cleanroom compatibility
  • Safety interlocks: Lid interlock and emergency stop on each station
  • Data traceability: Recipe storage, real-time monitoring, USB/Ethernet export (optional)
  • Material efficiency: Spin coating offers >90% material transfer efficiency
  • Low maintenance: Vibration-free design with sealed bearings
  • Compact footprint: Dual design saves space while doubling efficiency
Support and Services
  • Free process consulting and material testing - send us your substrates
  • Custom fixture design and engineering services
  • On-site installation and commissioning (customizable support packages)
  • Operator training program included
  • Remote troubleshooting via video call or IoT monitoring (customizable)
  • 12-month warranty on components
  • Spare parts availability from regional warehouses (chucks, pumps, motors)
  • Lifetime technical support via phone, email, or chat
Packing and Shipping
  • Packing: Anti-static foam + reinforced wooden case (with desiccant for moisture-sensitive components)
  • Standard model lead time: 15-30 days after order confirmation
  • Custom configuration lead time: 30-45 days (longer for custom chucks or automation integration)
  • Shipping: FOB Shanghai / CIF by sea, air, or rail
  • Customizable: Export crating, custom labeling, destination port documentation
Frequently Asked Questions
Q1: What is the main advantage of a dual-station spin coater over two single-station units?
A: A dual-station machine shares one control system and footprint while allowing one operator to load/unload one station while the other is coating—eliminating idle time. This results in lower total investment, smaller lab space, and higher throughput.
Q2: Can I run two different coating recipes simultaneously on each station?
A: Yes. Each station has independent programmable controls, allowing you to coat different materials or substrate sizes at the same time without cross-contamination.
Q3: How do I choose the right chuck for my substrate shape and size?
A: Chucks are customizable based on your substrate dimensions and material. We offer standard chucks for round substrates (up to 450mm) and custom-machined chucks for square, rectangular, or irregular substrates.
