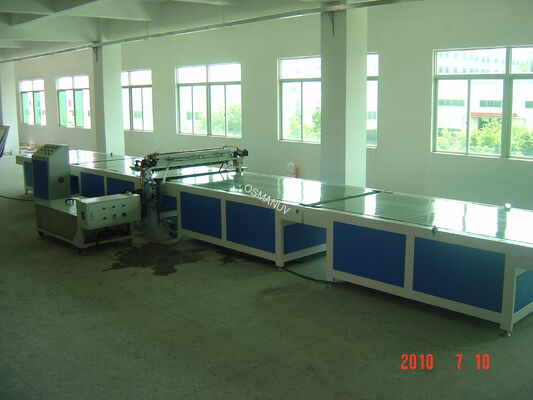

ISO9001 2.2Kw Uv Curtain Coating Machine 304 Stainless Steel Plate
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Osmanuv |
| Certification: | ISO9001 And CE |
| Model Number: | OSM-LT-1320T |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Box |
| Delivery Time: | 35-45 Working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | According to customer's demand |
|
Detail Information |
|||
| Wooden Box: | European Precision Curtain Coating Machine | Power Supply: | 380V/50HZ Three-phase Five-wire System. |
|---|---|---|---|
| Gross Weight: | 2000kg | Coating Width: | 1320mm |
| Size: | 6000mm Long × 2200mm Wide × 1400 Mm High, Leather | Processing Thickness: | 3-80mm |
| Transmission Power: | 2.2 Kw | Paint Dosage: | 60～200 G/㎡ |
| Highlight: | ISO9001 uv curtain coating machine,2.2Kw uv curtain coating machine,ISO9001 auto print uv machine |
||
Product Description
ISO9001 2.2Kw Uv Curtain Coating Machine 304 Stainless Steel Plate
Description:
| 1 | This machine uses Italian technology crystallization, structure, technology and performance. |
| 2 | The opening and closing of the shower head is controlled by a pneumatic device and can be moved horizontally, which is convenient for operation and adjustment. |
| 3 | The coating supply system of the shower curtain adopts unique technology, and the defoaming pump and defoaming device with defoaming function are used for supply. |
| 4 | The curtain spraying machine adopts four-stage conveying and supporting use, and the conveying speed can reach 80m/min when spraying. |
| 5 |
The main part of the shower curtain adopts a pulley structure, which can be easily pulled in, pulled out and easy to clean. |
The furnace shell is made of
| 2.0 cold-rolled plate bending and welding, and the surface is sprayed with powder and baked paint. |
Conveyor belt:
| The Dutch PVC belt is used, which has the characteristics of corrosion resistance, oil stain resistance, and easy cleaning. |
Belt conveying speed:
| 5-80m/min, stepless speed regulation. |
Conveying system:
| Adopt Taiwan Wanxin gear reducer motor as conveying power. |

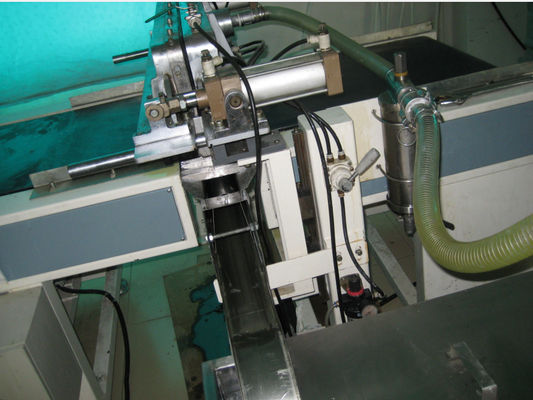

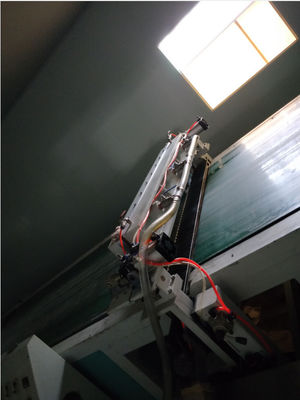

Curtain head:
| Adopts unique scallop-type diagonal support structure, easy to adjust, disassemble and clean after use |
Transmission bearing:
| It adopts Japanese NSK imported bearing, which has good sealing performance and prevents paint from soaking. |

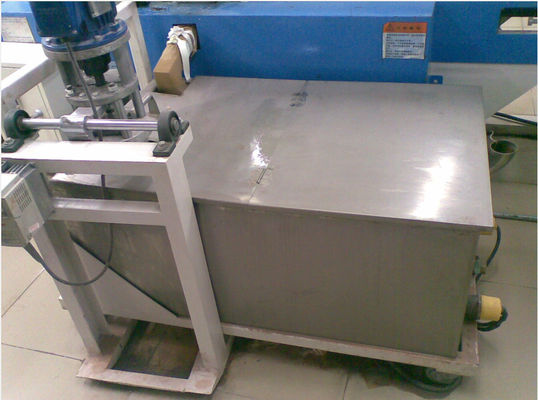

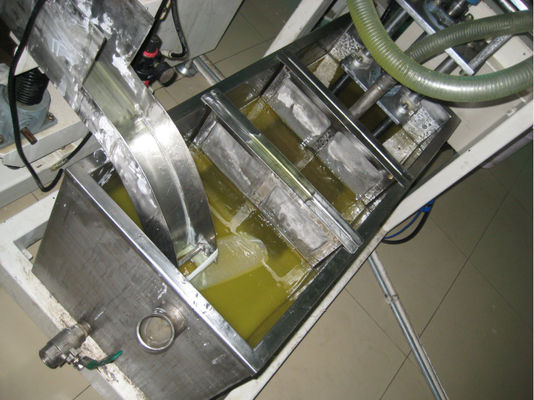

Oil storage tank:
| It is welded with 2.0t 304# stainless steel plate, built-in 5 layers of high-efficiency filter screen, which can effectively filter the impurities carried by the paint during the reflow process. The oil tank is also equipped with a constant temperature heating system, and the temperature can be set freely (generally set It is 60℃) to ensure the stability of the paint. At the same time, the oil tank is also equipped with a backflow buffer system, which can effectively eliminate the generation of bubbles. |
Electrical part:
| Delta inverters, CHNT contactors, Japanese Izumi switches and other famous-brand electrical appliances that meet international standards. |
Control panel:
| power indicator light, start switch, stop switch, oil pump switch, electric heating switch, abnormal emergency switch, etc. |
Safety devices:
| leakage circuit breaker, motor overload protection, abnormal emergency switch, control circuit fuse, etc., in line with international safety standards. |
Conveying direction:
| From left to right, (facing the operating surface, the feeding direction is from left to right). |
FAQ
Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
