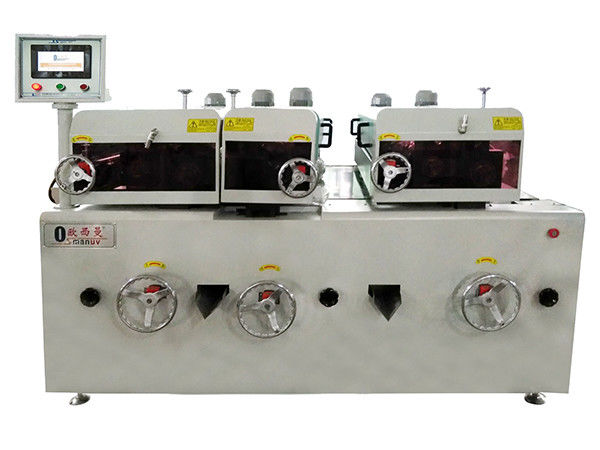

9KW 850mm Height Wood Uv Roller Coating Machine With Siemens Motor

9KW 850mm Height Wood Uv Roller Coating Machine With Siemens Motor

Product Details:

Place of Origin: China
Brand Name: Osmanuv
Certification: ISO9001
Model Number: OSM-TB-1320

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 30 work days
Payment Terms: T/T, Western Union
Get Best Price Contact Now

Detail Information

Poduct Name: Multi-function Coating Machine Size: 2100mm X 2300 Mm X 1520mm
Color: Computer White / Green Operational Height: 850-900mm
Total Power: 9KW Warranty: 1 Year
High Light:

9KW uv roller coating machine

,

850mm uv roller coating machine

Product Description

9KW 850mm Height Wood Uv Roller Coating Machine With Siemens Motor



Description:



suitable for filling all kinds of wood, solid wood, original planer board medium density planer or other use waterborne UV light curing filling

The plate with the filling agent can fill the holes in the plate to achieve a smooth effect and scrape away the excess paint.

Recycling can completely eliminate manual filling, thus greatly improving production efficiency.



Describe

  1 .Filling roller: diameter:

¢240mm, power: 1.5KW, length: 1420mm.The 45# seamless steel tube is welded by CO², the surface is finely ground, the dynamic balance is done, the runout is less than 0.05mm, the surface is plated with hard chrome and polished to achieve the bright effect.Direct plug - in connection drive, can really achieve with the drive motor combined into one.


  2 Cots with diameter: ¢240mm, length: 1420mm, made of Japanese high quality rubber, wear-resistant, elastic, hard.Degree can be customized according to customer requirements (30 degrees - 50 degrees) between, can be resistant to various solvents.
  3 Metering wheel: diameter: ¢150mm, length: 1420mm, using 45# seamless steel tube by CO² welding, surface fine grinding, do dynamic balance, runout is less than 0.05mm, the surface by hard chrome plating and polishing to achieve bright effect.Directly inserted into theType connection drive can be truly achieved with the drive motor combined into one.
  4 .conveyor roller:

power: 2.2KW, diameter: ¢130mm, length: 1320mm.

The 45# seamless steel tube is welded by CO², the surface is finely ground, the dynamic balance is done, the runout is less than 0.05mm, and the surface is polished after hard chrome platingThe effect direct plug - in connection drive, can really achieve with the drive motor combined into one.


  5 Material:

The shell is made of 1.5mm steel plate bending and welding, the surface is treated with liquid paint, and the supporting wall is made of 20cm steel plate (A3 material).


  6 Transmission system Adopts Dutch imported plane anti-skid PVC belt, adjustable 5-20m/min, adopts high-quality coupling transmission, bearing adopts KHV bearing, controlled by Taiwan Delta frequency converter.
  7 Control system six sets of driving power are used to drive the speed separately, and it is equipped with Siemens motor and reducer of BNC.
  8 Electrical parts: OMRON relay, Siemens motor, Delta frequency converter, Waxin reducer, CHNT contactor, delay using CKC brand, switch using Japan Wazumi company production, all in line with the CE standard.
  9 Safety device: leakage circuit breaker, control line fuse......Etc. are in line with international safety standards.
  10 Delivery direction: from left to right.

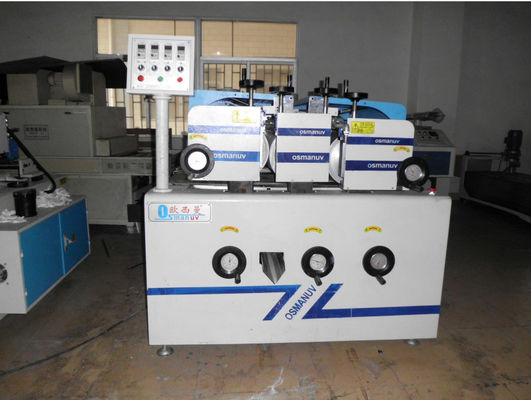

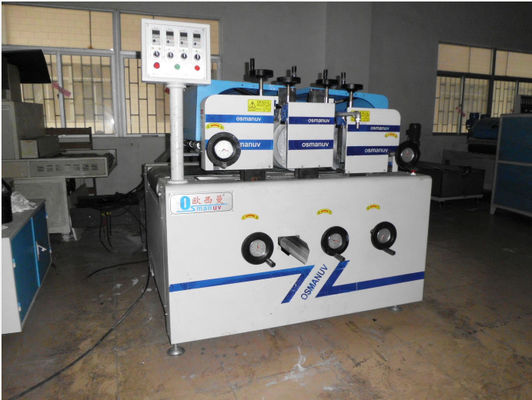

9KW 850mm Height Wood Uv Roller Coating Machine With Siemens Motor 09KW 850mm Height Wood Uv Roller Coating Machine With Siemens Motor 1



FAQ


Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
