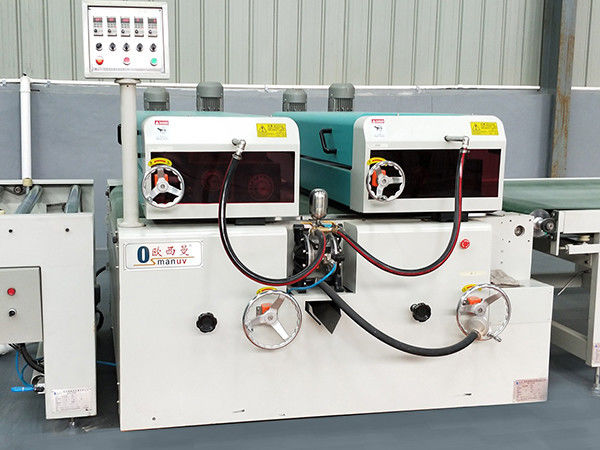

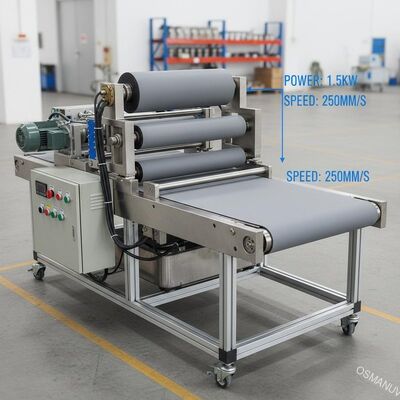

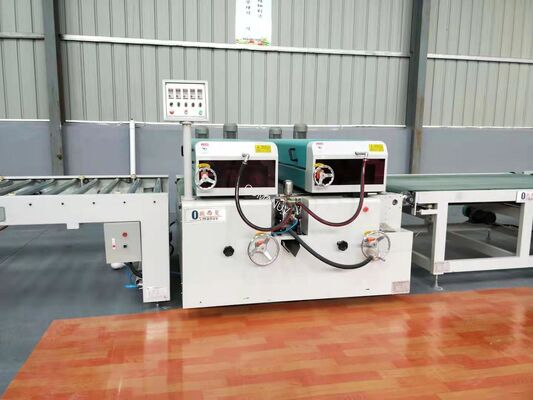

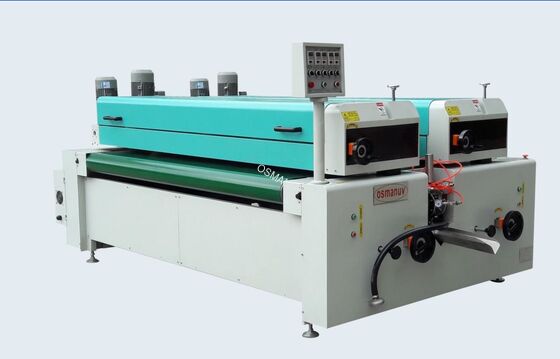

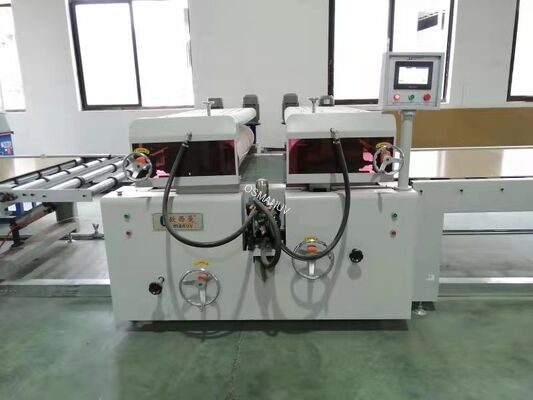

1.5KW 250mm Diameter Reverse Roll Coating Machine Flat Conveyor Belt
Product Details:
| Place of Origin: | China |
| Brand Name: | Osmanuv |
| Certification: | ISO9001 |
| Model Number: | OSM-GT-1320-Ⅱ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, Western Union |
|
Detail Information |
|||
| Product Name: | Primer Filling Machine | Size: | 1800mm Long X 2300mm Wide X 1520mm High. (According To Actual Size) |
|---|---|---|---|
| Effective Working Size:: | A, Effective Width: 1320mm; B, Thickness: 3-80mmc, Length (shortest): 300mm | Conveying Speed: | 5-20m/min |
| Coating Roller: | Diameter Used: ￠250mm | Conveying Roller: | Power: 1.5KW |
| High Light: | 1.5KW Reverse Roll Coating Machine,250mm Reverse Roll Coating Machine |
||
Product Description
1.5KW 250mm Diameter Reverse Roll Coating Machine Flat Conveyor Belt
Description:
| 1 | This machine is a primer filling machine specially designed for the rough surface of the tubular fiber on the surface of various flat furniture panels. It can also be used to fill the surface of the splint. This machine can fill in the recessed pores on the surface of the panel, and at the same time, The paint is scraped away, and the excess paint can be recycled. This machine completely eliminates manual filling, greatly improving production efficiency. |
| 2 | The conveying motor and frequency converter of this machine adopt imported brands or well-known domestic brands (customers can choose to match) |
| 3 | The coated rubber wheel is made of corrosion-resistant and friction-resistant silicon rubber material, which has wide adaptability and durability. |
| 4 | The distance between the rubber wheel and the steel wheel of this machine is adjusted by a worm wheel and a worm, and is equipped with a digital display position display, which can be easily set for each adjustment. |
Describe
| 1 | Coating part: | Double-group roller coating system is adopted. Each group system includes steel roller and silicone wheel. Each group of roller coating system can be raised and lowered independently. |
| 2 | Coating roller: |
diameter: ￠250mm, length: 1470mm, made of high-quality Japanese silica gel, wear-resistant, good elasticity, hardness can be customized according to customer requirements (between 30 degrees-50 degrees), and can withstand various solvents. High-quality coupling transmission, bearing adopts KHV bearing, Taiwan Delta frequency converter controls the speed of rubber roller. |
| 3 | Measuring wheel: | diameter: ￠130 mm, length: 1470mm, using 45# seamless steel pipe welded by CO², the surface is finely ground, dynamic balance, runout is less than 0.05mm, the surface is electroplated hard chrome and polished to achieve a bright effect. Direct plug-in connection transmission can truly be integrated with the drive motor. |
| 4 | Conveying roller |
power: 1.5KW, diameter: ￠130 mm, length: 1320mm. The 45# seamless steel pipe is welded by CO². The surface is finely ground and balanced. The runout is less than 0.05mm. The surface is hard chrome electroplated and polished to achieve a bright effect. Direct plug-in connection transmission can truly be integrated with the drive motor. |
| 5 | Conveyor belt | Green PVC flat conveyor belt is adopted, which has stable conveying and long service life. |
| 6 |
Conveying speed: |
5-20m/min. |
| 7 | Working height: | 0～850mm (the height of the belt from the ground), the height of the roller is equipped with a position indicator. |
| 8 | Control system: | 5 sets of RV reducers and 5 sets of Delta frequency converters are adopted, and each roller can be adjusted independently. |
| 9 | Electrical appliances: | use Delta inverters, CHNT contactors, RV reducers, Siemens motors, and use domestic well-known brands and other famous-brand electrical appliances that meet international safety standards. |
| 10 | Safety device |
This machine has leakage circuit breaker, motor overload protection, abnormal emergency switch, control circuit fuse, etc. in line with international safety standards. |
| 11 | Conveying direction: | from left to right. |
FAQ
Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
