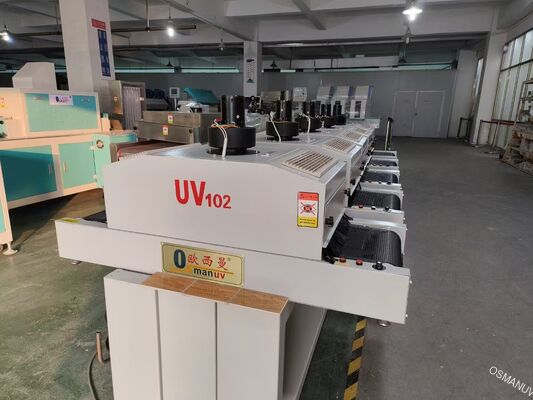

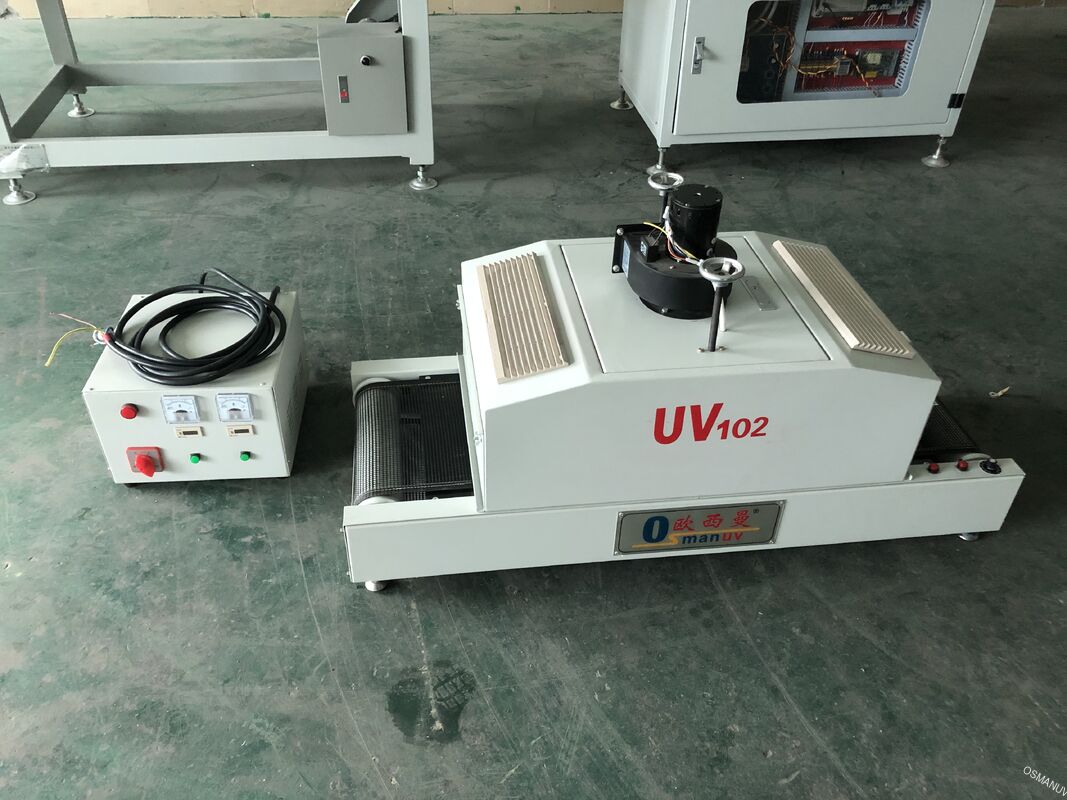

Standard Industrial 102 Curing Oven for Solvent-Based Paint on Wood & Metal
Product Details:
| Place of Origin: | China |
| Brand Name: | OSMANUV |
| Certification: | ISO9001 |
| Model Number: | OSM-GH-102 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | 30~40 Days |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Machinery Test Report: | Provided | Infeed Length: | 1500MM |
|---|---|---|---|
| Powersource: | Electricity | Safetyfeatures: | UV Shielding, Emergency Stop |
| Lamp Life: | 8000h | Supply Voltage: | 360-410V 50HZ |
| Automatic Grade: | Automatic | Drying: | UV Curing |
| Highlight: | industrial curing oven for paint,solvent-based paint curing machine,UV curing oven for wood metal |
||
Product Description

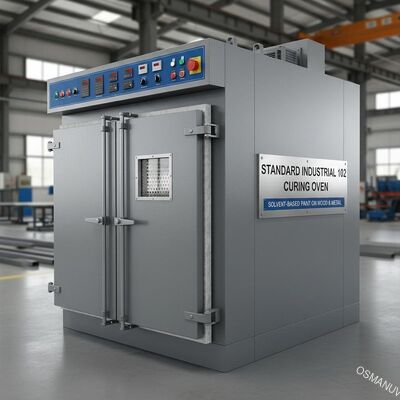

Standard Industrial 102 Curing Oven for Solvent-Based Paint on Wood & Metal
Product Overview
The Standard Industrial 102 Curing Oven is engineered for curing oil-based paints, alkyd resins, epoxy coatings, and polyurethane finishes on wood and metal substrates. Utilizing forced hot air circulation with indirect electrical heating, this oven ensures uniform temperature distribution (±3°C across the chamber) for consistent drying and cross-linking of solvent-based coatings.
Ideal for: furniture manufacturers, metal fabrication shops, and coating service providers requiring reliable, easy-to-operate curing solutions for small to medium-sized batches.
Production Line Composition
- Loading Conveyor Platform - manual or automated roller infeed
- Main Curing Chamber - thermally insulated, 1,200×1,200×1,800 mm (customizable dimensions)
- Heating System - electrical resistance or hot air circulation
- Temperature Control Unit - PID controller with digital display
- Exhaust Air System - with integrated damper for solvent vapor extraction
- Safety Interlock Latch - automatic power cut when door opened during operation
- PLC Control Cabinet - industrial-grade controller with 7-inch touchscreen HMI
- Data Recording Interface - USB/Ethernet port for curing parameter logging
Technical Specifications
| Parameter | Value / Range |
|---|---|
| Curing method | Forced hot air circulation + indirect electrical heating |
| Temperature range | 40 - 200°C (PID controlled, ±1°C accuracy) |
| Temperature uniformity | ±3°C |
| Effective chamber size (L×W×H) | Standard: 1,200×1,200×1,800 mm customizable |
| Heating power | 15 - 45 kW customizable |
| Airflow rate | 1,500 - 3,500 m³/h (adjustable) |
| Exhaust damper | 0-100% adjustable, explosion-proof fan |
| Solvent vapor extraction | Built-in safety purge cycle (pre-start and post-run) |
| Power supply | 380V / 400V / 460V, 50/60Hz, 3-phase customizable |
| Control system | PLC with 7″ touchscreen HMI, 50 recipe storage |
| Data logging | USB / Ethernet for curing parameter export |
| Safety features | Explosion-proof heating elements, door interlock, over-temp protection, emergency stop |
| Material | Inner chamber: SUS304; Outer: powder-coated steel |
| Dimensions (L×W×H) | 1,500×1,800×2,200 mm customizable |
| Weight | 600 - 1,500 kg (depending on size) |
Applications
- Wooden furniture and cabinetry - curing oil-based primers and topcoats
- Metal parts and machinery - industrial equipment coating curing
- Automotive components - chassis parts, engine covers
- Architectural products - doors, window frames, railings
- Industrial painting service shops - small to medium batch production
Customization Options
- Customizable chamber size - from 600×600×600 mm (lab) to 2,500×2,500×3,000 mm (industrial pallet)
- Customizable temperature range - up to 350°C for specialized coatings
- Customizable heating power - match chamber size and throughput requirements
- Customizable airflow pattern - vertical downflow, horizontal crossflow, or bottom-up
- Customizable voltage and frequency - for any global location
- Customizable door configuration - single-door, double-door, or roll-up
- Customizable safety package - ATEX certification for solvent-based coatings
Key Features
- Uniform heat distribution - forced air circulation eliminates cold spots
- Precise PID control - ±1°C accuracy for consistent curing across batches
- Multi-stage curing profiles - store up to 50 recipes; typical example: 60°C solvent flash-off → 120°C cross-linking
- Safe for solvent-based coatings - explosion-proof heating elements + purge cycle
- Energy efficient - high-density rock wool insulation (100-120 mm) reduces heat loss
- Quick load/unload - optional motorized loading cart available
- Data traceability - USB/Ethernet export of curing parameters for quality records
Support and Services
- Lifetime free technical support (phone/email/video)
- On-site installation & commissioning - engineers available worldwide
- Operator training - 2-3 days on-site training included
- 2-year warranty - on heating elements, PLC, fans, and all electronic components
- Spare parts supply - guaranteed for 10+ years; 48-hour global shipping
- Free sample testing - send your coated products; we provide curing test report
Packing and Shipping
- Packed in export-grade plywood case with VCI anti-rust film and foam padding
- Shipped assembled or in modular sections for container loading
- Includes: English manual, CE certificate, wiring diagrams, calibration certificate, tool kit, spare parts
- Lead time: 20 days (standard); 35-50 days (customized)
Frequently Asked Questions
Q1: What is the difference between drying and curing for oil-based paints?
Drying removes solvents (including water) by evaporation, while curing triggers chemical cross-linking reactions within the paint to achieve full hardness. Our 102 oven supports both operations: solvent removal in the low-temperature zone followed by thermochemical cross-linking in the high-temperature zone.
Q2: Is this oven safe for highly volatile solvent-based coatings?
Yes. The oven includes explosion-proof heating elements, an interlock system, and a pre-start purge cycle to eliminate flammable vapor accumulation.
Q3: Can the oven be integrated with an existing coating line?
Yes. Conveyor height, loading interfaces, and control signals are fully customizable for integration with spray booths, dip coating lines, or roller coaters.
Q4: What is the typical curing time for alkyd paint at 120°C?
At 120°C, most alkyd coatings reach full hardness in 20-40 minutes, compared to 8-24 hours at room temperature.
