ISO9001 620mm Effective Width Curing Machine For Screen Printing

ISO9001 620mm Effective Width Curing Machine For Screen Printing

Product Details:

Place of Origin: China
Brand Name: Osmanuv
Certification: ISO9001
Model Number: osm-uv-620Ⅴ

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 30 work days
Payment Terms: T/T, Western Union
Get Best Price Contact Now

Detail Information

Product Name: Uv Curing System Power Supply Voltage: 380V 50HZ, Three-phase Four-wire System.
Color: Computer White / Green Warranty: 1 Year
Type: UV Curing Machine Light Source Control System: With Strong, Weak Light, Light Intensity Of The Second 70%, 100% Adjustable Light
Operational High: 850-900 - Mm Is Adjustable Direction Of Transportation: From Left To Right
High Light:

ISO9001 curing machine for screen printing

,

620mm curing machine for screen printing

Product Description

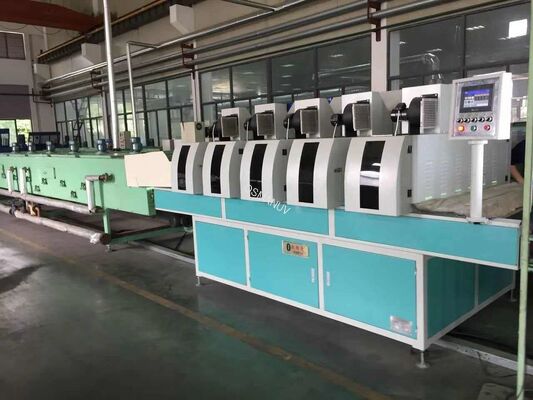

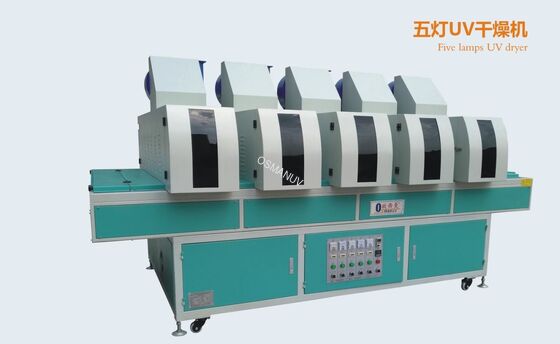

ISO9001 620mm Effective Width Curing Machine For Screen Printing

Description:

1.This machine can cure UV coatings in a short time through UV energy, which is highly efficient, energy-saving and environmentally friendly. Mechanization can greatly improve production efficiency, and is not affected by its external conditions. It is widely used for drying and curing all kinds of wood, aluminum, acrylic, calcium silicate, PVC, and hardware accessories.

 1Mechanical dimensions:

3200mm long x 1530mm wide x 1680mm high.
(According to actual size)

 2Effective processing size/effective width620mm
 3Lamps5 imported lamps (synthetic whale iron mercury mercury), suitable for ultraviolet light curing of various products.
 4Speed:5-20m/min.
 5MaterialThe outer shell is made of cold-rolled plate, the thickness is 2mm, and the surface is treated with liquid paint, which is wear-resistant and corrosion-resistant. The UV section is insulated with double-layer steel plates, which can effectively reduce the cooling effect.
 6Lamp

5pcs British PRIMARC 5.6KW mercury lamp.
The height and angle of the lamp tube in the UV furnace can be adjusted, which is suitable for ultraviolet light curing of various products.

 7ReflectorIt is made of aluminum and is integrally formed with alanod imported reflective lenses inside, which can increase the UV reflection efficiency by 38%.
 8Transmission system

stainless steel mesh belt (wire diameter 2.0 mesh 20*15), with high temperature resistance, UV resistance and other characteristics. Make the machine run more smoothly.
It adopts Siemens motor and Italian Modoli reducer, Mitsubishi frequency converter to control the speed, and the panel is equipped with potentiometer speed control knob.

 9Heat dissipation systemforced air cooling, integrated design of light box, sufficient heat dissipation and good effect.
 10Light source control systema. Each group of lamps can be controlled independently, and is equipped with strong and weak light, the light intensity is 70%, 100% dimmable.
b. The lamp is equipped with an LCD usage time recorder, which records the service life of the lamp and can be reset to zero.
C. Each lamp tube is equipped with a white fuse.
 11Electrical parts

UV transformer, capacitor independent control electric box, OMRON relay, Taian contactor, CKC brand for delay time, and switch from Japan Izumi company, all comply with CE standards.

 12Safety devicesleakage circuit breakers, over-temperature protection, transformer motor overload protection, control circuit fuses... all comply with international safety standards.
 13Working height:850-900mm adjustable (the height of the conveyor belt from the ground).
 14Conveying directionfrom left to right.
 15WarrantyOne year for the whole machine, half a year for electrical parts, and 800-1000 hours warranty for UV lamps.
 16 The lamp is guaranteed for 800-1000 hours.



ISO9001 620mm Effective Width Curing Machine For Screen Printing 0


FAQ
Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
