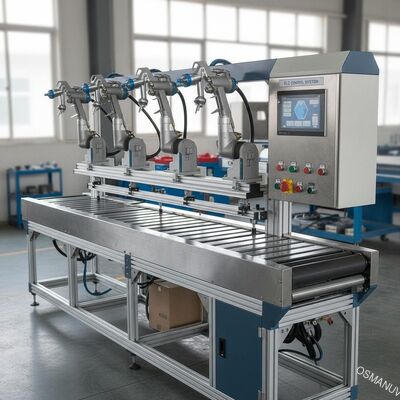

Fully Automatic Spray Coating Machine with Customizable Width, Japanese Iwata Spray Guns & PLC Control for Industrial Applications
automatic spray coating machine for wood
,customizable spray coating machine for glass
,adjustable conveyor speed spray coater
This fully automatic spray coating machine delivers high-precision painting for panel furniture, solid wood doors, decorative panels, photovoltaic glass, mesh fabrics, and craft products. Compatible with PU, NC, water-based paints, and color glazes, it features Japanese Iwata automatic spray guns and a high-efficiency air filtration system for uniform coating, minimal paint waste, and dust-free operation.
With PLC-controlled operation and fully customizable configurations, this system ensures consistent finish quality and operational efficiency for medium to large-scale manufacturing environments.
| Parameter | Specification |
|---|---|
| Model | OSM-GX-PV-13200/PT (customizable) |
| Effective Width | 1300 mm (customizable) |
| Machining Width | 300 mm - 1300 mm (customizable) |
| Machining Thickness | 3 - 200 mm |
| Minimum Machining Length | 1000 mm |
| Spray Gun Type | Japanese Iwata automatic spray guns (customizable quantity) |
| Spray Gun Diameter | 1.0 - 1.5 mm |
| Spray Gun Angle | Manually adjustable (customizable: motorized adjustment available) |
| Power Supply | 380V AC / 50Hz (customizable) |
| Total Power | 4.6 kW |
| Overall Dimensions (L × W × H) | 4200 × 3050 × 2500 mm (customizable) |
| Paint Supply System | 2 × Taiwan Xinjing 1-inch diaphragm pumps with pressure stabilizing valves |
| Air Filtration Class | Class 10,000 high-efficiency air filter |
| Conveyor Type | Rotating roller system (customizable: mesh belt or Teflon belt available) |
| Inner Wall Material | 1.5T SUS304 stainless steel |
| Exhaust System | 2 high-efficiency fans (ducts and secondary treatment by customer) |
Ideal for spray coating in various industries:
- Panel furniture - Cabinets, tables, chairs
- Solid wood doors - Interior and exterior doors
- Decorative panels - Wall panels, ceiling panels
- Photovoltaic glass - Anti-reflective coating
- Mesh fabrics - Plane mesh, upholstery fabrics
- Craft products - Decorative items, art pieces
- Cabinet doors - Kitchen and bathroom cabinets
Supports PU, NC, water-based paints, and color glaze applications.
This automatic spray coating machine is fully customizable to meet specific production requirements:
- Customizable effective width - Available from 300 mm to 1300 mm
- Customizable spray gun quantity and configuration - Up to 8 guns available
- Adjustable spray gun angle - Manual or motorized adjustment options
- Customizable conveyor system - Roller, mesh belt, or Teflon belt options
- Custom control system - PLC programming with multiple recipe storage
- Custom housing color - Color card to be confirmed with client
- Custom air filtration - Up to Class 1000 filtration available
- Custom exhaust integration - Designed for seamless connection to customer's ventilation system
- Customization consultation - Tailored design based on product type, coating material, and production capacity
- Installation and commissioning - On-site or remote support
- Operator training - Comprehensive training for operation, maintenance, and safety protocols
- Technical support - Lifetime remote assistance
- Spare parts supply - Genuine replacement parts, spray guns, pumps, and filters
- Warranty - 1-year standard warranty with extended options available
- Color card confirmation - Pre-production color approval for outer shell
- Packing: Wrapped in protective film, secured with wooden pallet (ISPM 15 compliant), reinforced edges for export
- Shipping: By sea, air, or land based on destination
- Lead Time: 30-45 days after customization confirmation
- Documentation: Operation manual, electrical diagrams, and CE certification (if applicable)
-
