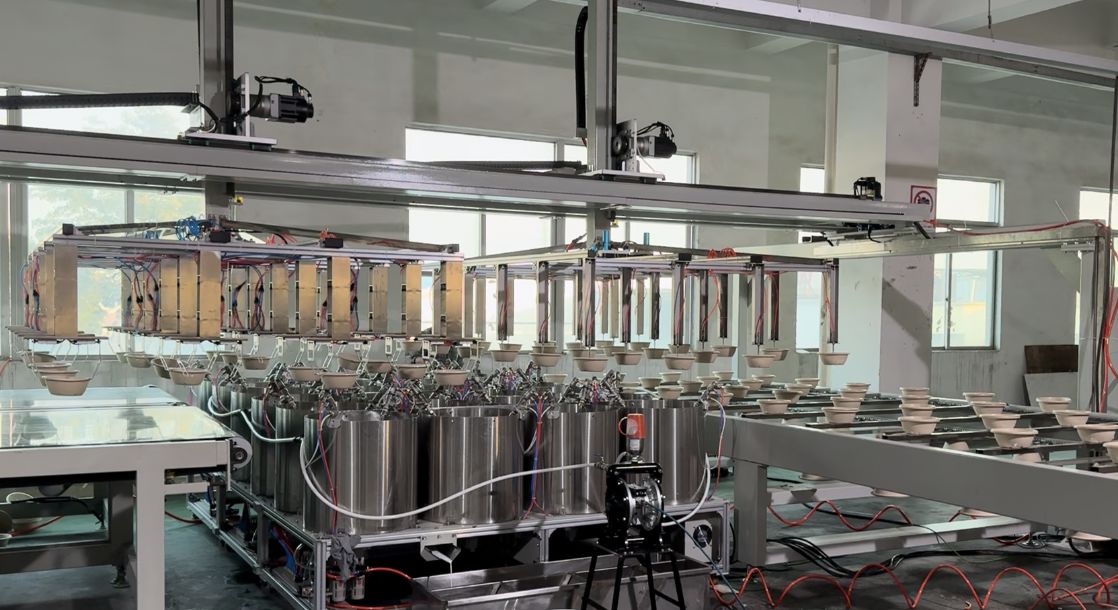

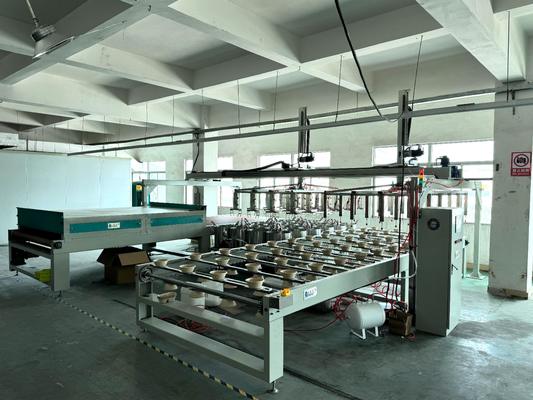

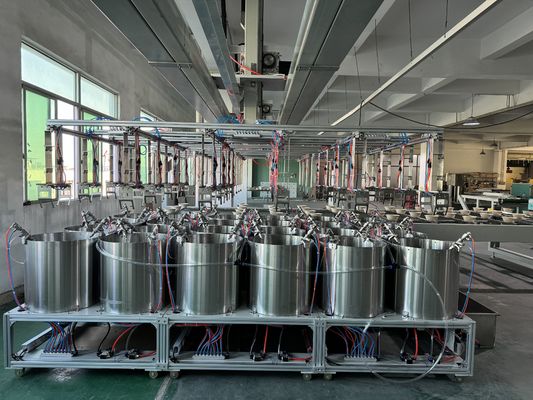

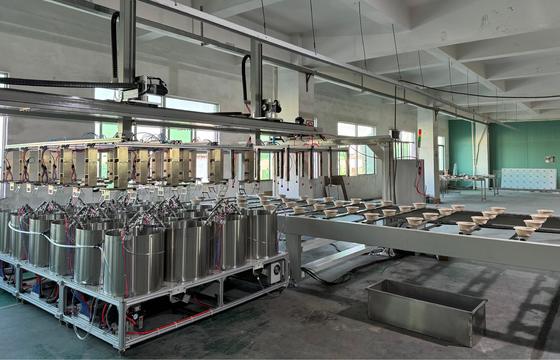

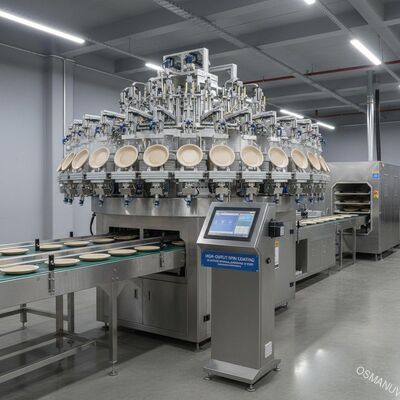

High-Output Spin Coating Production Line for Molded Pulp Tableware - 24-Station Internal Coating System with Customizable Parameters

High-Output Spin Coating Production Line for Molded Pulp Tableware - 24-Station Internal Coating System with Customizable Parameters
High-Output Spin Coating Production Line for Molded Pulp Tableware - 24-Station Internal Coating System with Customizable Parameters
High-Output Spin Coating Production Line for Molded Pulp Tableware - 24-Station Internal Coating System with Customizable Parameters High-Output Spin Coating Production Line for Molded Pulp Tableware - 24-Station Internal Coating System with Customizable Parameters High-Output Spin Coating Production Line for Molded Pulp Tableware - 24-Station Internal Coating System with Customizable Parameters High-Output Spin Coating Production Line for Molded Pulp Tableware - 24-Station Internal Coating System with Customizable Parameters High-Output Spin Coating Production Line for Molded Pulp Tableware - 24-Station Internal Coating System with Customizable Parameters High-Output Spin Coating Production Line for Molded Pulp Tableware - 24-Station Internal Coating System with Customizable Parameters High-Output Spin Coating Production Line for Molded Pulp Tableware - 24-Station Internal Coating System with Customizable Parameters

Large Image :  High-Output Spin Coating Production Line for Molded Pulp Tableware - 24-Station Internal Coating System with Customizable Parameters

Product Details:
Place of Origin: China
Brand Name: OSMANUV
Certification: ISO9001
Model Number: OSM-XT-500
Document: PULP MOLDING AUTOMATIC SPIN...NE.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wooden Box
Delivery Time: 30~45 Days
Payment Terms: T/T
Supply Ability: Negotiation
Contact Now

High-Output Spin Coating Production Line for Molded Pulp Tableware - 24-Station Internal Coating System with Customizable Parameters

Description
Control System: PLC Control / Manual Control Coating Area: Large Area
Packaging Type: Wooder Package Production Name: 24-station Spin Coating Line
Feeding Method: Bottom, Side Optional Package: Wooden Case
Driven Type: Electric Coating Quality: High Quality
Highlight:

24-station pulp molding coating machine

,

high-output spin coating production line

,

customizable molded pulp tableware coater

High-Output Spin Coating Production Line for Molded Pulp Tableware
Production Line Overview

Our Spin Coating Production Line for molded pulp products is a fully integrated, modular system designed for seamless workflow. The standard production line composition includes:

  • Automatic Feeding/Stacking System: For continuous and precise loading of molded pulp products
  • Optional Pre-Treatment Zone: For surface activation or pre-heating to enhance coating adhesion
  • Core Rotary/Spin Coating Station: Multiple independent stations with customized fixtures for uniform 360° internal coverage

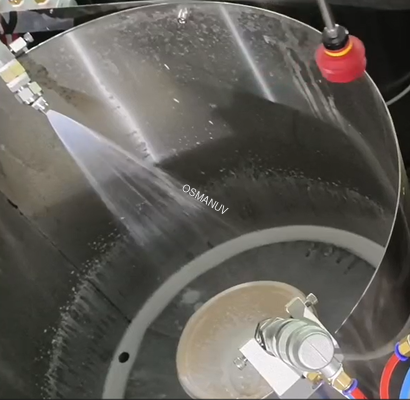

  • Precision Coating Dispense System: Servo-controlled spray nozzles for accurate application
  • Drying/Curing Tunnel: Modular drying zone with customizable temperature zones
  • Automatic Unloading & Stacking Unit: For organized collection of finished products
  • Centralized PLC Control Panel: Touch-screen HMI with recipe management

Note: The line configuration—including number of stations and conveyor layout—is fully customizable to fit your specific factory space and production volume.

Technical Specifications
ParameterHigh-Output ModelR&D / Sample ModelCustomization Options
Number of Stations12-24 stations (rotary)Single StationCustomizable from 1 to 24+ stations
Production SpeedApprox. 40s/group (variable)5-15 cycles/minCustomizable cycle times via servo control
Coating Weight Control0.1 - 5 g/piece (adjustable)±1.0% accuracyCustomizable dispense volume & precision
Max. Product SizeSuitable for standard tablewareØ 200mm x H 100mm (example)Fully Customizable fixtures and station size
Coating MethodPrecision Rotary SprayPrecision Rotary Spray / SyringeCustomizable spray head / dip / pour methods
Control SystemPLC with HMI & Recipe StoragePLC with HMI / MicroprocessorCustomizable software, data logging, remote access
Power Supply380V, 50Hz, 3-Phase220V, 50/60Hz (Single Phase)Customizable to local voltage/frequency
Applications
  • Eco-Friendly Food Packaging: Bowls, plates, clamshell containers, and meal trays with waterproof and oil-proof properties
  • Disposable Tableware: Pulp-molded cups, soup containers, and lunch boxes with heat resistance
  • Industrial Packaging: Anti-static, anti-corrosion, or moisture barrier coatings for protective packaging
  • R&D and Prototyping: Small-scale models for testing new bio-polymer coatings and optimizing parameters
Key Features
  • 360° Uniform Coverage: Spin coating technology ensures seamless, pinhole-free barrier coating on complex 3D shapes
  • High Precision & Repeatability: PLC-controlled servo drives ensure exact coating weight for every piece
  • Material Waste Reduction: Automated, targeted application minimizes overspray and coating waste
  • Rapid Changeover: Quick-release fixtures and stored PLC recipes enable fast product switching
  • Stainless Steel Construction: Durable, corrosion-resistant materials suitable for food-grade production
Customization Options

We understand that no two products are alike. Therefore, our spin coating lines are highly customizable:

  • Custom Fixture Design: Tailored holding fixtures for your specific product geometry
  • Station Quantity & Layout: Customizable from single-station R&D units to high-speed 24-station systems
  • Coating Application Method: Customizable selection of spray nozzles, flow rates, and alternative methods
  • Drying/Curing Profile: Modular IR, convection, or UV sections with zoned temperature control
  • Automation Level: From semi-automatic lab models to fully automated lines with MES integration
Support & Services
  • Pre-Sales Engineering Consultation: Analysis of your product samples and coating requirements
  • Installation & Commissioning: On-site setup, calibration, and integration by experienced engineers
  • Comprehensive Training: Hands-on training for operators and maintenance staff
  • Warranty & Spare Parts: 12-month warranty with guaranteed supply of genuine spare parts
  • Lifelong Technical Support: Remote troubleshooting and consultation available
Frequently Asked Questions
What is the main advantage of spin coating compared to traditional spray coating for molded pulp?
Spin coating uses centrifugal force to create an extremely uniform, thin film that perfectly conforms to complex interior shapes. It ensures seamless coverage in corners where traditional spray might miss, resulting in superior barrier properties with more precise control over coating weight.
Can this line handle different product shapes (e.g., both square trays and round bowls)?
Yes. The key is the customizable fixture design. We create dedicated fixtures for each product shape. Changeover between products involves swapping the fixtures and loading a different recipe from the PLC, which can be done in minutes.
What types of coatings can be applied with this machine?
The system is compatible with a wide range of functional coatings, including water-based acrylics, PFAS-free oil-barrier coatings, bio-polymer films, and anti-static agents. The fluid path components can be customized to handle specific material viscosities and chemistries.
How is the coating thickness controlled?
Thickness is controlled by several programmable parameters: the rotational speed (RPM) of the spin, the acceleration rate, the volume of coating dispensed, and the viscosity of the material. All these parameters are stored in the PLC for perfect repeatability.
What is the typical lead time for a customized production line?
Lead time depends on the complexity of the customization. After finalizing the design based on your product samples, manufacturing typically takes between 30 to 50 working days, followed by sea freight shipping.
