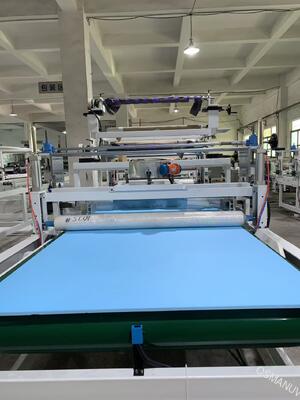

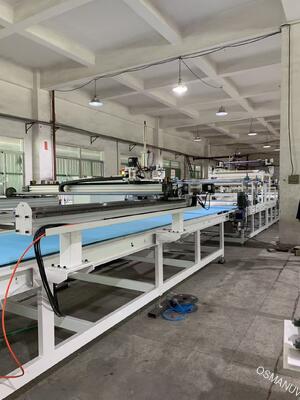

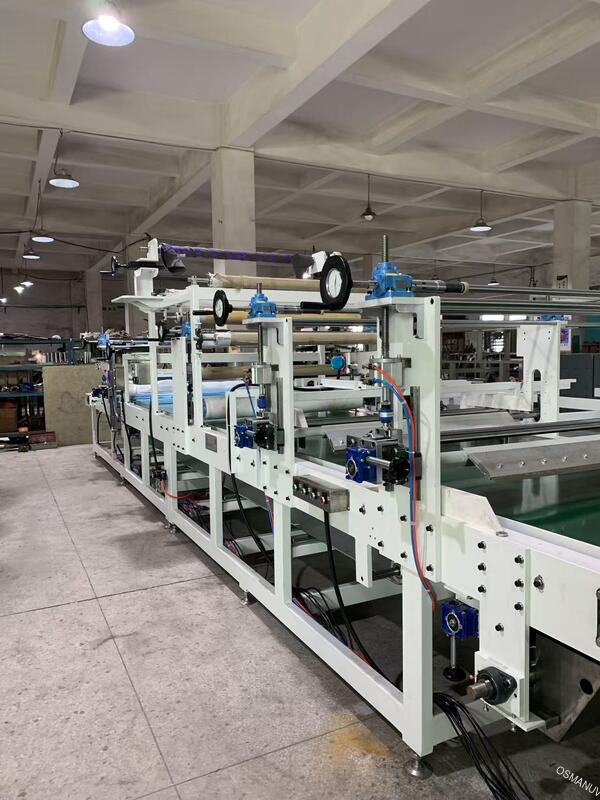

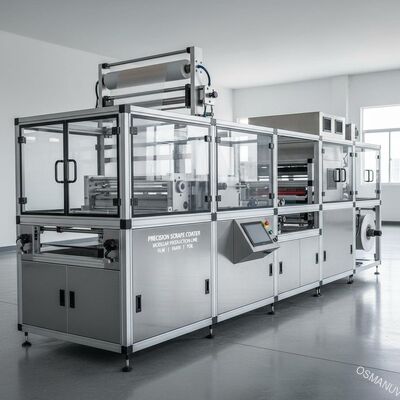

Precision Scrape Coating Machine – Fully Customizable Modular Production Line for Film, Paper & Foil

Product Description

The Osman Scrape Coating Production Line (also known as Comma Blade Coater or Knife-Over-Roll Coater) is a high-precision, industrial-grade coating system designed for applying uniform coatings onto flexible substrates such as films, paper, foils, and textiles. The comma blade (scraper) mechanism prevents paint leakage and ensures exceptional coating thickness accuracy. This closed-system design pre-meters coating materials through a precision pump, significantly reducing material waste, volatile emissions, and workplace contamination while enabling faster production line speeds.

The production line features a modular architecture supporting full customization from coating width to drying configuration, making it suitable for both R&D pilot lines and high-volume mass production. The scraper thickness is controlled by high-precision slide rails with accuracy between 0.2-0.5mm, and an external pressurization system manages the amount of paint leaking from the scraper. The system also includes cleaning devices for waste collection and demolding agent application to prevent sticking.

Key advantages over roller coating systems include:

• More uniform coating weight and distribution

• Faster production line speeds

• Minimized material waste and workplace clutter

• Capability to handle ultra-high viscosity materials (up to 120,000 cP)

• Suitable for ultra-thin or transparent coatings

Technical Parameters

Application

• Pressure Sensitive Adhesives (PSA): Acrylic, rubber-based, hot melt adhesives

• Battery Industry: Lithium-ion battery electrode slurries (anode & cathode), separator coatings

• Optical Films: Anti-reflective (AR) film, anti-glare (AG) film, hard coating

• Medical Products: Transdermal patches, medical tapes, bandages, wound dressings

• Packaging Materials: Flexible packaging, food wrapping, adhesive tapes, labels

• Textile Coating: Fabric coating, non-woven fabric finishing

• Electronic Materials: EMI shielding films, flexible printed circuit boards (FPC), thermal interface materials

• Photovoltaic: Solar panel backsheets, encapsulation films

• Industrial: Release liners, masking tapes, sandpaper, abrasive materials

• Ceramic & Metal Slurries: Ceramic green tapes, metal paste coating

Customization

We offer full customization for the Osman Scrape Coating Production Line including:

• Coating width: From 200mm lab-scale to 2500mm production line

• Coating head type: Comma blade, slot die, micro-gravure, reverse roll (interchangeable)

• Number of drying zones: 1 to 6 zones with independent temperature control

• Drying method: Hot air, IR, UV curing, or hybrid combinations

• Substrate types: PET, PI, paper, aluminum foil, copper foil, textile, non-woven (custom tension control)

• Unwind/rewind roll diameter: Customizable core sizes and max diameter

• In-line processes: Corona treatment, laminating, slitting, edge guiding, inspection

• Environmental control: Cleanroom integration (ISO Class 7/8), exhaust & solvent recovery

• Automation level: Manual, semi-automatic, or fully automatic with robotic loading

• Software: Custom recipe management, data logging, SECS/GEM, remote monitoring (IoT)

• Safety features: Emergency stop, light curtains, explosion-proof design for solvent-based coatings

Feature

• Precision comma blade design – Stainless steel scraper with high-precision slide rail control (0.2-0.5mm accuracy) prevents paint leakage

• External pressurization system – Controls paint leakage volume for consistent coating application

• Integrated cleaning device – Collects waste material and prevents splashing; positioned below scraping system

• Demolding agent applicator – Applies anti-adhesive agent to conveyor belt to prevent sticking; includes lifting system for optional use

• Dual scraper system – Upper scraper for material collection (aluminum integrated frame, Swedish rubber blade), lower scraper for residual material removal

• S-shaped roller layout – Prevents web deviation and tension issues; effectively peels residual material from conveyor belt

• Closed-loop tension control – Maintains consistent web tension from unwind to rewind

• Recipe management – Store and recall multiple coating recipes for different products

• Real-time monitoring – Speed, tension, temperature, coating thickness (optional)

• Fail-safe interlocks – Ensures operator safety and prevents machine damage

• Energy-efficient drying – Optimized airflow design reduces energy consumption

• Easy maintenance – Modular components for quick access and cleaning

Support and Services

• 24/7 online technical support (phone, email, remote access)

• On-site installation & commissioning (customizable training packages for operators)

• Spare parts availability for 10+ years

• Preventive maintenance plan (customizable schedule based on production volume)

• Process optimization service (free for first 3 months)

• Remote diagnostic via IoT (optional)

• Customizable warranty extension (standard 1 year, up to 3 years)

• On-site repairs and emergency response (customizable SLA)

Packing and Shipping

• Packing: Anti-static, moisture-proof wrapping + shock-absorbing wooden case (export standard, fumigation-free). Critical components individually wrapped. Customizable labeling and documentation.

• Shipping: FOB Shenzhen / CIF worldwide by sea, air, or land. Lead time: 35-45 working days (customizable rush order available with expedited fee).

• Documents: Commercial invoice, packing list, CE certificate, ISO9001 certification, operation manual (English/Chinese), electrical schematic, spare parts list.

• Shipping weight: Approx. 3500-6000 kg depending on configuration

• Container type: 20ft or 40ft HQ (customizable disassembly for smaller containers)

FAQ

Q1: What is the difference between comma blade coating and slot die coating?
A: Comma blade (scrape coating) is ideal for high-viscosity materials (up to 120,000 cP) and thicker coatings, while slot die is better for low-viscosity, ultra-thin, and closed-system applications. Our production line can be customized to support both methods interchangeably.

Q2: Can I coat both solvent-based and water-based materials?
A: Yes. The system is compatible with both. For solvent-based coatings, we offer customizable explosion-proof designs and solvent recovery systems.

Q3: What substrate thickness range is supported?
A: Standard range is 0.03mm – 2mm. We can customize the tension control system for thinner (down to 6μm) or thicker substrates upon request.
