Industrial Waterproof, Oil-Proof, Anti-Adhesion & Heat-Resistant Coating Line for Pulp Molded Packaging - Heavy-Duty Production Solution

Industrial Waterproof, Oil-Proof, Anti-Adhesion & Heat-Resistant Coating Line for Pulp Molded Packaging - Heavy-Duty Production Solution
Industrial Waterproof, Oil-Proof, Anti-Adhesion & Heat-Resistant Coating Line for Pulp Molded Packaging Heavy-Duty Production Solution Keywords: industrial pulp coating machine, waterproof coating line, customizable coating equipment, molded pulp production Designed for industrial pulp molded ...
Place of Origin:China
Brand Name:Osmanuv
Certification:CE
Model Number:OSM-XT-2400T
Minimum Order Quantity:1 set
Price:Negotiation
Product Custom Attributes
Highlight

industrial pulp molding coating machine

,

waterproof coating line for pulp packaging

,

heavy-duty pulp molding production solution

Uv Lamp Power:
5KW
Coating Automation:
High Automation
Frequency Brand:
Shilin Or Schneider
Power Supply:
380V/50Hz
Lamps Type:
UV Lamp
Packaging Material:
Wood,Plastic,Metal,Paper,Glass
Burner:
Original Riello Burner; 2 Sets
Running Direction:
From Left To Right
Product Description
Industrial Waterproof, Oil-Proof, Anti-Adhesion & Heat-Resistant Coating Line for Pulp Molded Packaging
Heavy-Duty Production Solution
Keywords: industrial pulp coating machine, waterproof coating line, customizable coating equipment, molded pulp production
Designed for industrial pulp molded packaging, this line applies robust internal waterproof coatings with superior adhesion and resistance for demanding applications.

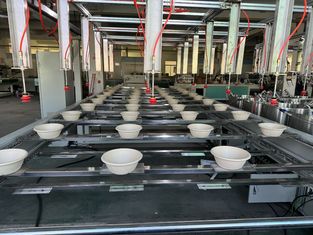

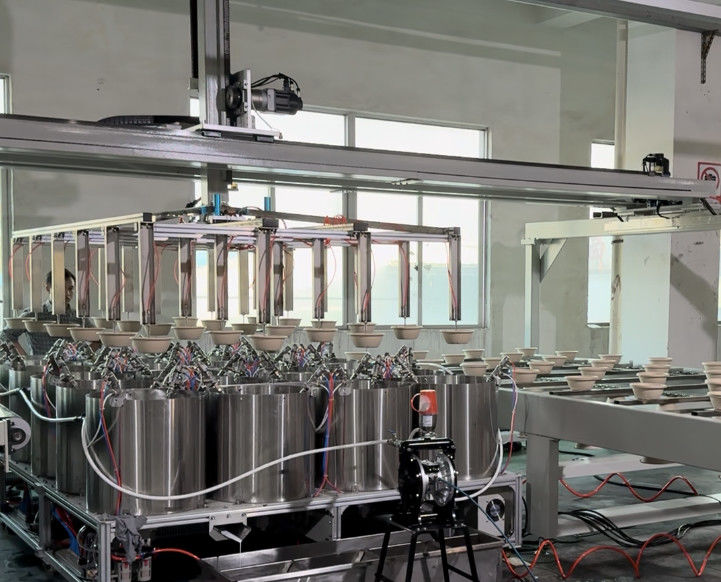

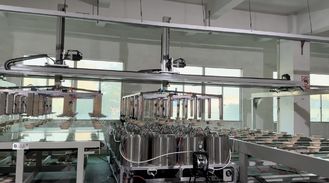

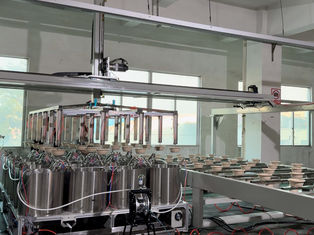

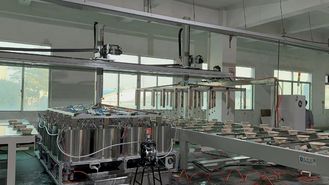

Production Line Composition
  • Robotic loading system
  • High-volume rotary spray stations
  • IR pre-drying tunnel
  • Final curing oven
  • Manual unloading conveyor
Technical Parameters
Parameter Specification
Production Capacity 500-2000 pcs/hour (customizable)
Coating Thickness 0.05-0.3 mm (adjustable)
Power Consumption 25-60 kW (configurable)
Control System Mitsubishi PLC + 10" HMI
Coating Type Water-based PU, acrylic (customizable)
Air Pressure 0.6-0.8 MPa
Footprint ~15m x 5m x 3m (customizable)
Applications
Waterproofing for industrial pulp packaging, electronic packaging, and automotive parts.
Customization Options
Customizable spray head configuration, drying power, and automation level for specific industrial needs.
Key Features
  • Hardened steel construction
  • High-viscosity coating capability
  • Low VOC emission design
  • Easy maintenance access
Support and Services
On-site commissioning, spare parts kit, operational training, video support.
Packing and Shipping
Weather-proof wooden crates, anti-rust treatment for all metal parts.
Frequently Asked Questions
Q: What coating materials are supported?
A: The system is customizable for various water-based coatings.
