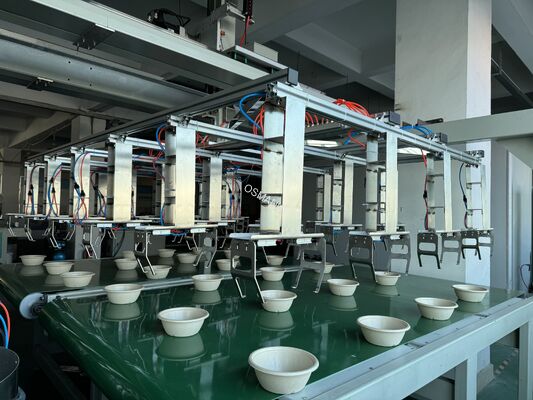

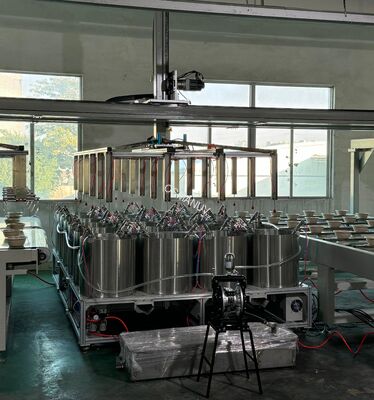

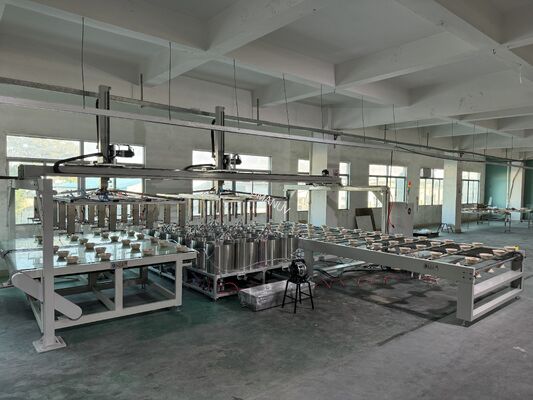

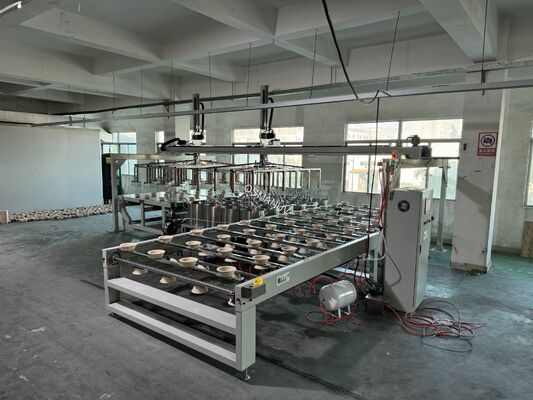

Automatic Multi-Station Spin Coating Machine for Pulp Molding with Customizable Coating Thickness & Robotic Material Handling

Large Image : Automatic Multi-Station Spin Coating Machine for Pulp Molding with Customizable Coating Thickness & Robotic Material Handling

Product Details: Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiation
Packaging Details:	Wood Packaging
Delivery Time:	30 Working Days
Payment Terms:	T/T
Supply Ability:	Negotiation

Contact Now

Automatic Multi-Station Spin Coating Machine for Pulp Molding with Customizable Coating Thickness & Robotic Material Handling

Description

Voltage:	220V,380V	Condition:	New
After-sales Service Provided:	Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Overseas Third-party Support Available,Field Installation	Dimension(lwh):	Customized Size
Automatic Grade:	Automatic,Semi-Automatic,manual,Other	Driven Type:	Electric,Other,Mechanical
Packaging Material:	Wood,Plastic	Warranty:	1 Year,one Year,12 Months
Highlight:	Customizable Coating Thickness Spin Coating Machine , Robotic Material Handling Pulp Molding Coating Machine , Multi-Station Design Rotary Coating System

Automatic Multi-Station Spin Coating Machine for Pulp Molding

This advanced spin coating machine is specifically engineered for the pulp molding industry, utilizing high-speed centrifugal spin coating technology to apply uniform functional coatings—waterproof, oil-proof, and biodegradable barrier coatings—onto molded pulp products such as tableware, food containers, and industrial packaging. The system combines precision dosing, high-speed spin coating, and integrated drying in a single continuous production flow.

Key Features

Precision Spin Coating: Independent stations with precision dosing and high-speed spin coating ensure uniform coverage on complex 3D geometries—achieves ±5% thickness uniformity
High Throughput: Multi-station rotary indexing table enables continuous, high-speed production—up to 1,200 pcs/hour
Integrated Drying: Inline IR/UV-LED/Hot Air drying tunnel enables immediate curing and downstream handling—eliminates additional transfer steps
Clean & Eco-Friendly: Enclosed coating chamber with exhaust and filtration system captures overspray and solvent vapors—ensures a clean working environment
Flexible Automation: Servo-driven rotary table with customizable indexing speed and station configuration—matches your production requirements
Precision Control: Real-time coating thickness monitoring and feedback control ensure consistent product quality
Low Maintenance: Durable spin coating unit design with easy-access maintenance points—reduced downtime and maintenance costs
Safe Operation: Comprehensive safety interlocks and emergency stop systems—fully compliant with international safety standards

Production Line Composition

Component	Description
Infeed Conveyor System	Automatic feeding with speed control and alignment mechanism
Multi-Station Rotary Indexing Table	Servo-driven rotary table with multiple independent spin coating stations (customizable)
Precision Dosing System	Metering pumps for accurate coating material application
Spin Coating Stations	High-speed centrifugal spin units with independent speed control
Coating Supply System	Precision metering pumps, pressure tanks, and filtration units
Drying Tunnel	IR/UV-LED/Hot Air drying system (customizable)
Exhaust & Filtration System	Overspray capture and solvent vapor filtration
PLC Control Cabinet	Industrial PC with HMI touchscreen, recipe storage, and data logging
Outfeed Conveyor	Automatic transfer to next station or stacking unit

Technical Parameters

Parameter	Specification	Customization Options
Number of Stations	12 - 24 stations (standard)	Customizable (4 - 48 stations)
Rotary Table Drive	Servo-driven, high-precision indexing	Customizable indexing speed
Spin Speed	Adjustable, up to 2,500 rpm	Independent speed control per station
Coating Thickness	5 - 50 μm (dry)	Customizable coating weight
Coating Uniformity	±5% thickness deviation	Customizable process parameters
Production Capacity	300 - 1,200 pcs/hour	Customizable per production targets
Conveyor Speed	1 - 20 m/min (stepless)	Customizable via VFD control
Drying Method	IR/UV-LED/Hot Air	Customizable drying system
Drying Temperature	40°C - 180°C	Customizable temperature profiles
Control System	Omron PLC + HMI	Integration protocols customizable
Data Logging	USB, Ethernet/IP, Modbus	Reporting formats customizable
Power Supply	380V/400V/460V, 50/60Hz, 3-phase	Customizable to regional standards
Exhaust Air Volume	2,000 - 8,000 m³/h	Customizable based on booth size
Overall Dimensions	8m - 30m * 1.5m - 2.5m * 1.8m - 2.5m	Layout and footprint fully customizable
Safety Standards	CE	Customizable to target market

Applications

Molded Pulp Tableware: Spin coating waterproof and oil-proof barriers on plates, bowls, trays, clamshell boxes, and cup carriers—uniform coverage on complex 3D geometries
Industrial Pulp Packaging: Spin coating protective and anti-static coatings on egg trays, fruit trays, electronic cushioning pads, and industrial corner protectors
Agricultural Products: Spin coating biodegradable barrier coatings on seedling pots, horticultural trays, and planting containers
Premium Molded Products: Spin coating aesthetic and functional coatings on medical device trays, cosmetic packaging inserts, and custom-shaped containers
High-Volume Production Lines: Continuous spin coating for large-scale manufacturing where production flexibility and coating quality are critical

Customization Options

Station Configuration: Customizable number of stations (4 - 48 stations) and layout to match your output targets
Spin Speed & Coating Thickness: Customizable spin speed (up to 2,500 rpm) and coating thickness (5 - 50 μm) for different product sizes and barrier requirements
Drying System: Customizable drying method (IR/UV-LED/Hot Air) and temperature profiles to match your coating chemistry
Conveyor Speed & Configuration: Customizable speed profiles (1 - 20 m/min) and conveyor layout for different production requirements
Material Handling: Customizable infeed and outfeed configurations, including robotic loading/unloading integration
Control System Integration: Customizable communication protocols (Modbus, Profibus, Ethernet/IP) to sync with your master PLC or MES system
Enclosure & Exhaust: Customizable booth dimensions and exhaust capacity to match your factory layout and environmental requirements

Support and Services

Comprehensive pre-installation site assessment and layout planning
Professional on-site installation, commissioning, and calibration
Thorough operator training and maintenance instruction
12-month standard warranty on the entire system (extendable)
Lifetime remote technical support and online diagnostics
Preventive maintenance plans and global spare parts network
Coating process optimization and technical consultation
Spin coating unit maintenance and repair services

Packing and Shipping

Precision dosing pumps and spin coating units shipped in shock-resistant, moisture-proof foam crates
Entire system modularized and packed in heavy-duty, weatherproof wooden crates
Special anti-static packaging for electronic and control components
All shipments include detailed documentation and can be arranged via air or sea based on your requirements

Frequently Asked Questions

Is spin coating suitable for pulp molding products?

Yes. Spin coating is ideal for applying uniform functional coatings on complex 3D molded pulp products. The system is designed with precision dosing and high-speed spin coating units to ensure complete coverage on corners, sidewalls, and curved surfaces. Fully compliant with CE and other international standards.

How does spin coating compare to other coating methods?

Spin coating offers excellent coverage on complex 3D geometries with precise thickness control, making it ideal for molded pulp products with intricate shapes. It provides customizable coating thickness and is compatible with a wide range of coating formulations. Compared to spray coating, spin coating offers better material utilization and less overspray.

Can the system handle various product sizes and coating requirements?

Yes. The system features customizable station configuration, spin speed, coating thickness, and drying profiles. Real-time monitoring allows dynamic adjustment, ensuring optimal coating quality for different products.

How much floor space does the system require?

The system layout is fully customizable. Depending on your production capacity and available floor space, we can design a compact or expanded configuration to best suit your needs.

What are the total operating costs?

Overall operating costs are optimized through high material utilization, reduced coating waste, and integrated drying. Coating material and electricity are the primary operating costs. We can provide a detailed cost analysis based on your specific production parameters.
