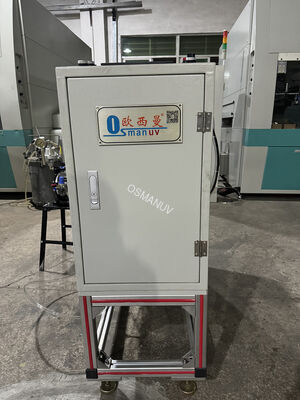

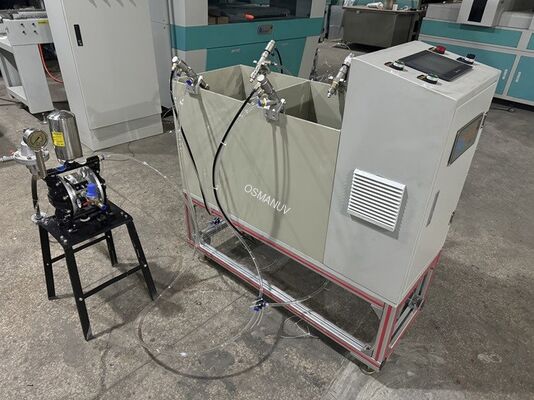

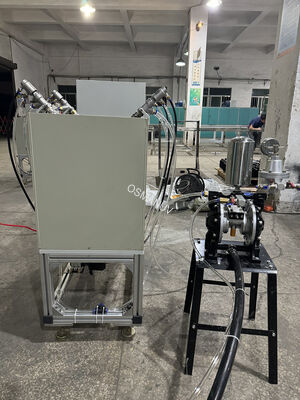

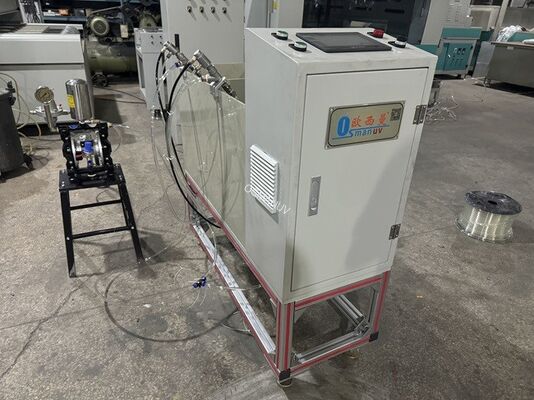

Compact Single-Station Spin Coating Experimental System for Pulp Molding – Customizable Coating Parameters & Coating Recovery
Product Description
This single-station spin coating experimental machine is specifically designed for the pulp molding industry, ideal for laboratory R&D, small-batch sample testing, and process optimization. Using high-speed centrifugal spin coating technology, it applies uniform functional coatings—waterproof, oil-proof, and biodegradable barrier coatings—onto molded pulp samples such as plates, bowls, trays, and custom-shaped containers.
Precision Spin Coating: The system achieves uniform coating coverage on complex 3D sample geometries, including corners, sidewalls, and curved surfaces, with coating thickness uniformity of ±5%.
Coating Recovery System: Equipped with a coating recovery system, excess coating can be reused, achieving high utilization (≥90%) and reducing waste—effectively lowering R&D costs.
Compact & Flexible: The compact design makes it ideal for laboratory environments. The system supports quick changeover between different samples and coating formulations, enabling rapid prototyping and process optimization.
Simple Operation: User-friendly HMI with recipe storage allows easy parameter adjustment and repeatable results—suitable for both experienced researchers and operators new to spin coating.
Production Line Composition
|
Component
|
Description
|
|
Sample Loading Station
|
Manual or semi-automatic loading for small-batch samples
|
|

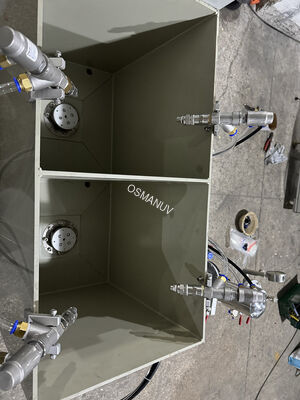

Single-Station Spin Coating Unit
|
High-speed centrifugal spin coater with independent speed control (customizable)
|
|
Precision Dosing System
|
Metering pump for accurate coating application
|
|
Coating Recovery System
|
Collects and recycles excess coating material
|
|
Drying Unit
|
IR / UV-LED / Hot Air drying (customizable)
|
|
PLC Control Cabinet
|
Industrial PC with HMI touchscreen, recipe storage, and data logging
|
|
Exhaust & Filtration System
|
Captures solvent vapors and ensures a clean lab environment
|
Technical Parameters
|
Parameter
|
Specification
|
Customization Options
|
|
Number of Stations
|
1 station (standard)
|
Customizable (1 – 4 stations)
|
|
Spin Speed
|
Adjustable, up to 2,500 rpm
|
Customizable speed profiles
|
|
Coating Thickness
|
5 – 50 μm (dry)
|
Customizable coating weight
|
|
Coating Uniformity
|
±5% thickness deviation
|
Customizable process parameters
|
|
Sample Size
|
Up to 350mm × 350mm
|
Customizable fixture design
|
|
Production Capacity
|
20 – 60 pcs/hour (lab scale)
|
Customizable per R&D requirements
|
|
Coating Recovery Rate
|
≥ 90%
|
Customizable recovery system
|
|
Drying Method
|
IR / UV-LED / Hot Air
|
Customizable drying system
|
|
Drying Temperature
|
40°C – 180°C
|
Customizable temperature profiles
|
|
Control System
|
Omron PLC + HMI
|
Integration protocols customizable
|
|
Data Logging
|
USB, Ethernet/IP, Modbus
|
Reporting formats customizable
|
|
Power Supply
|
220V / 380V, 50/60Hz, single/3-phase
|
Customizable to regional standards
|
|
Overall Dimensions
|
1.5m – 3m × 1.0m – 1.5m × 1.5m – 2.0m
|
Layout and footprint fully customizable
|
|
Safety Standards
|
CE, UL (optional)
|
Customizable to target market
|
Application
·
Molded Pulp Tableware R&D: Spin coating waterproof and oil-proof barriers on plates, bowls, trays, and clamshell boxes — ideal for small-batch sample testing and formulation development
·
·
Industrial Pulp Packaging R&D: Spin coating protective and anti-static coatings on egg trays, fruit trays, and electronic cushioning pads
·
·
Agricultural Products R&D: Spin coating biodegradable barrier coatings on seedling pots and horticultural trays
·
·
Premium Molded Products R&D: Spin coating aesthetic and functional coatings on medical device trays, cosmetic packaging inserts, and custom-shaped containers
·
·
Process Optimization: Rapid prototyping and parameter optimization for pilot-scale and mass production lines
·
Customization
This single-station spin coating experimental machine is highly customizable across multiple dimensions to fit your specific R&D requirements:
·
Station Configuration: Customizable number of stations and layout to match your sample testing needs
·
·
Spin Speed & Coating Thickness: Customizable spin speed (up to 2,500 rpm) and coating thickness (5 – 50 μm) for different sample sizes and barrier requirements
·
·
Drying System: Customizable drying method (IR / UV-LED / Hot Air) and temperature profiles to match your coating chemistry
·
·
Sample Fixtures: Customizable fixture design to accommodate different sample shapes and sizes
·
·
Coating Recovery System: Customizable recovery rate and collection design to maximize material utilization
·
·
Control System Integration: Customizable communication protocols (Modbus, Profibus, Ethernet/IP) to sync with your lab data management system
·
Key Features
·
Precision Spin Coating: High-speed centrifugal spin coating ensures uniform coverage on complex 3D sample geometries — achieves ±5% thickness uniformity
·
·
Coating Recovery System: Excess coating can be reused, achieving ≥90% utilization — significantly reduces R&D costs
·
·
Compact & Flexible: Small footprint ideal for laboratory environments — supports quick changeover between samples and formulations
·
·
Simple Operation: User-friendly HMI with recipe storage — easy parameter adjustment and repeatable results
·
·
Rapid Prototyping: Enables fast sample testing and process optimization — accelerates R&D cycles
·
·
Precision Control: Real-time monitoring and feedback control ensure consistent coating quality
·
·
Low Maintenance: Durable spin coating unit design with easy-access maintenance points — reduced downtime
·
·
Safe Operation: Comprehensive safety interlocks and emergency stop systems — fully compliant with international safety standards
·
Support and Services
·
Comprehensive pre-installation site assessment and layout planning
·
·
Professional on-site installation, commissioning, and calibration
·
·
Thorough operator training and maintenance instruction
·
·
12-month standard warranty on the entire system (extendable)
·
·
Lifetime remote technical support and online diagnostics
·
·
Preventive maintenance plans and global spare parts network
·
·
Coating process optimization and technical consultation
·
·
Sample testing and formulation development support
·
Packing and Shipping
·
Precision dosing pumps and spin coating units shipped in shock-resistant, moisture-proof foam crates
·
·
Entire system modularized and packed in heavy-duty, weatherproof wooden crates
·
·
Special anti-static packaging for electronic and control components
·
·
All shipments include detailed documentation and can be arranged via air or sea based on your requirements
·
Frequently Asked Questions
Q: Is this machine suitable for laboratory use?
A: Yes. This single-station spin coating experimental machine is specifically designed for R&D and small-batch sample testing. Its compact design, simple operation, and coating recovery system make it ideal for laboratory environments.
Q: Can the coating material be reused?
A: Yes. The system is equipped with a coating recovery system that collects and recycles excess coating material, achieving a recovery rate of ≥90%. This significantly reduces R&D costs and material waste.
Q: Can the system handle various sample sizes and shapes?
A: Yes. The system features customizable sample fixtures, spin speed, coating thickness, and drying profiles. It can accommodate a wide range of molded pulp sample shapes and sizes.
Q: How much floor space does the system require?
A: The system layout is fully customizable. Its compact design requires minimal floor space, making it suitable for laboratory environments with limited space.
Q: What are the total operating costs?
A: Operating costs are optimized through high material utilization (≥90% coating recovery) and low energy consumption. Coating material and electricity are the primary operating costs. We can provide a detailed cost analysis based on your specific R&D requirements.
